Tektronix TDS5000B Series

Troubleshooting
6-- 68
TDS5000B Series Se r vi c e Manual
Keyboard
LAN
Parallel Port
GPIB
Scope VGA Output
Video (Extended Desktop)
COM 1
Audio line in
Audio line out
Microphone in
USB (Mouse)
Side panel (SN B030000 and Above)
Keyboard
LAN
Parallel Port
GPIB
Scope VGA Output
Video (Extended Desktop)
COM 1
Audio line in
Audio line out
Microphone in
USB (Mouse)
Side panel (SN B020000 to SN B029999)
USB (Mouse)
USB (Mouse)
Keyboard
LAN
Parallel Port
GPIB
Scope VGA Output
Video (Extended Desktop)
COM 1
Audio line in
Audio line out
Microphone in
USB (Mouse)
Side panel (SN B010100 to SN B019999)
PCI Video from PC Interface.
Same as LCD
Note: Video can only be used
after a reset is initiated, not
while the application is running
PC SVGA Video
(Windows Only)

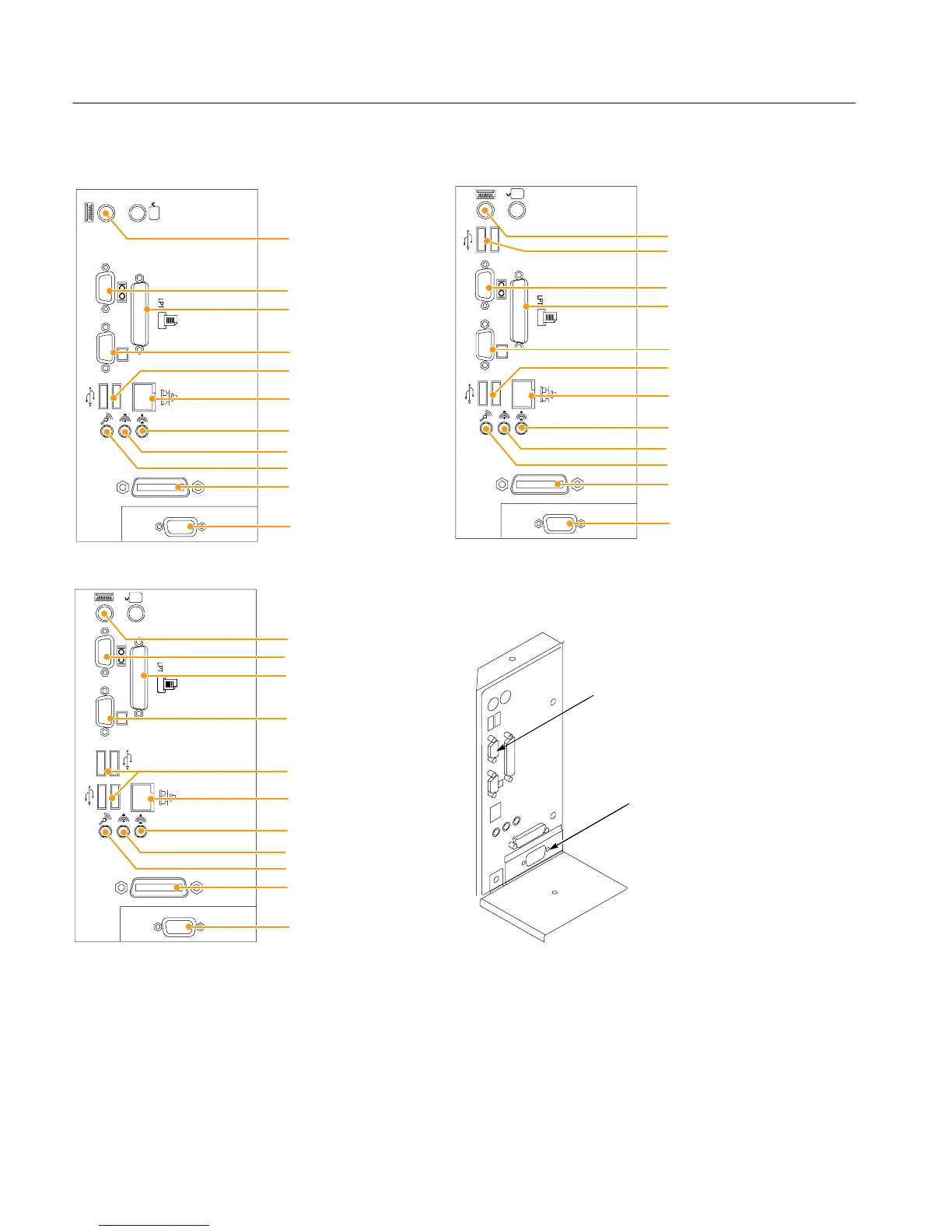

Figure 6--33: PCI and AGP video connectors
