Tektronix TDS5000B Series User Manual

Application Examples
TDS5000B Series Quick Start User Manual
113

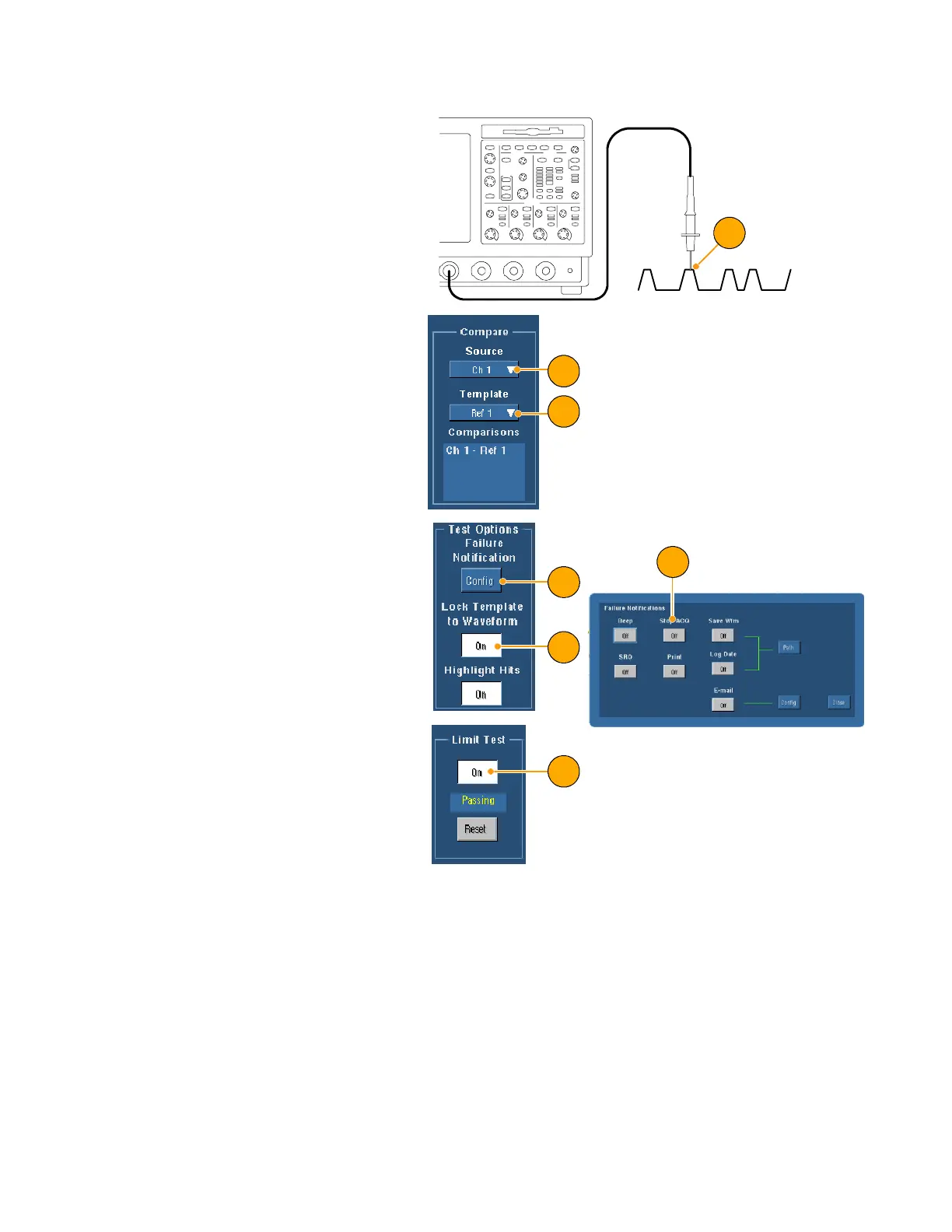

7. Move your probe from the refer-
ence product to the DUT.
7
8. Select the source channel that is
connected to the DUT.
9. Select the reference where you
saved the template in step 4.
8
9
10. Click Config to set up the Failure
Notification.
11. For this example, click Stop Acq
On, and then click Close to return
to t he setup cont rol window.
12. Click Lock Template to Waveform
On and Highlight Hits On.
13. Click On to start the test.
10
11
12
13
