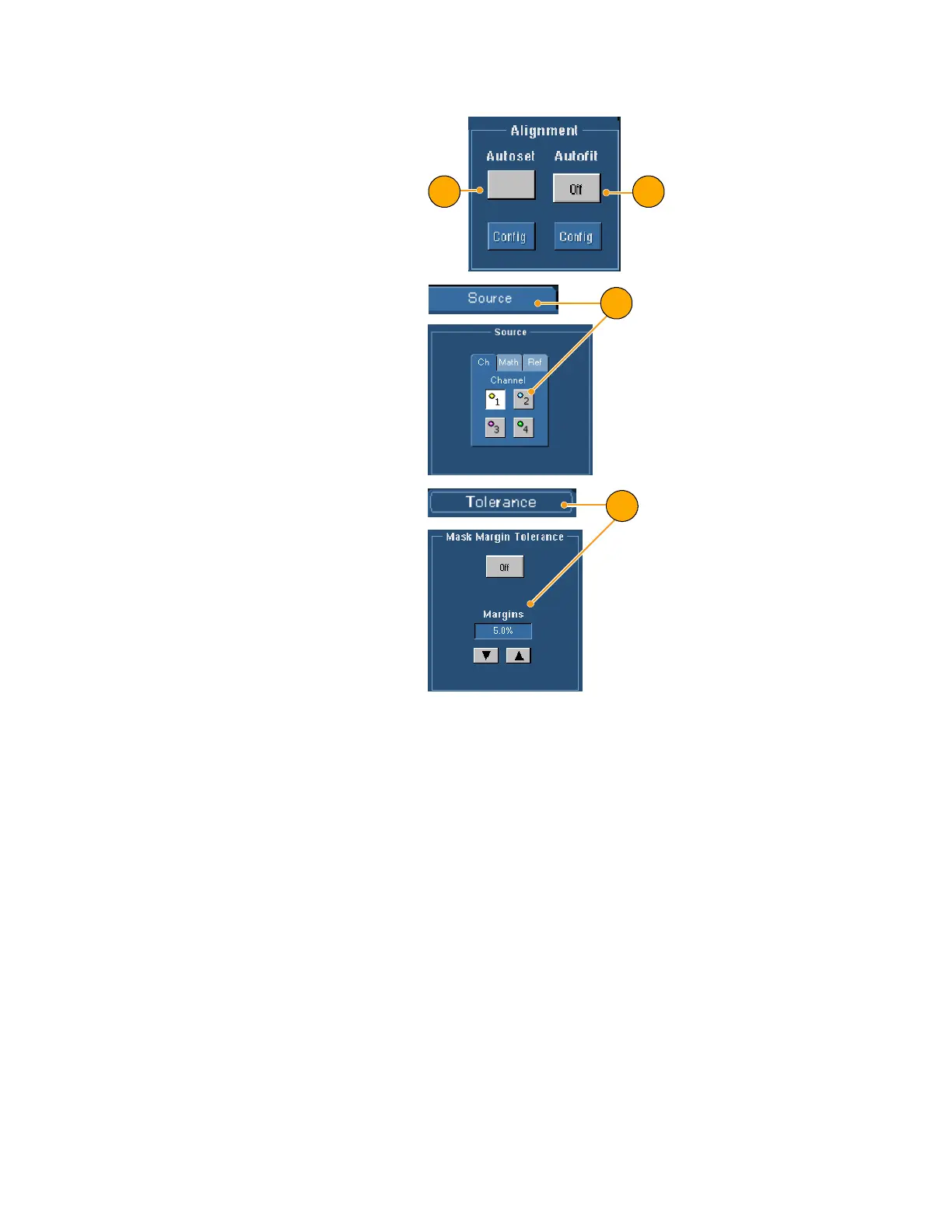

7. Click Autoset to automatically
align the waveform with the mask
based on the characteristics of
the input signal.
8. Click Autofit On to automatically
reposition the waveform after
each acquisition to minimize hits.
7 8
9. Click the Source tab, and then se-
lect the signal source.
9
10. Click the Tolerance tab, and then
set the tolerance.
Tolerance settings greater than
0% make the mask test harder to
pass, settings less than 0% make
the test easier to pass.
Use 0% if you want the mask as
specified in the standard. Chang-
ing the percentage allows you to
do margin test ing.
