TELES ECOTEL - ECOTEL Hardware Description

ECOTEL INSTALLATION
CHAPTER 4
25
ECOTEL 3G 16.1. Revised: 1 March 2011.
4.3 ECOTEL HARDWARE DESCRIPTION
Figure 4.1  shows the front and rear view of all ECOTEL variations. The ECOTEL handles traffic on up to 8 media
channels. The following pages describe installation of the ECOTEL.

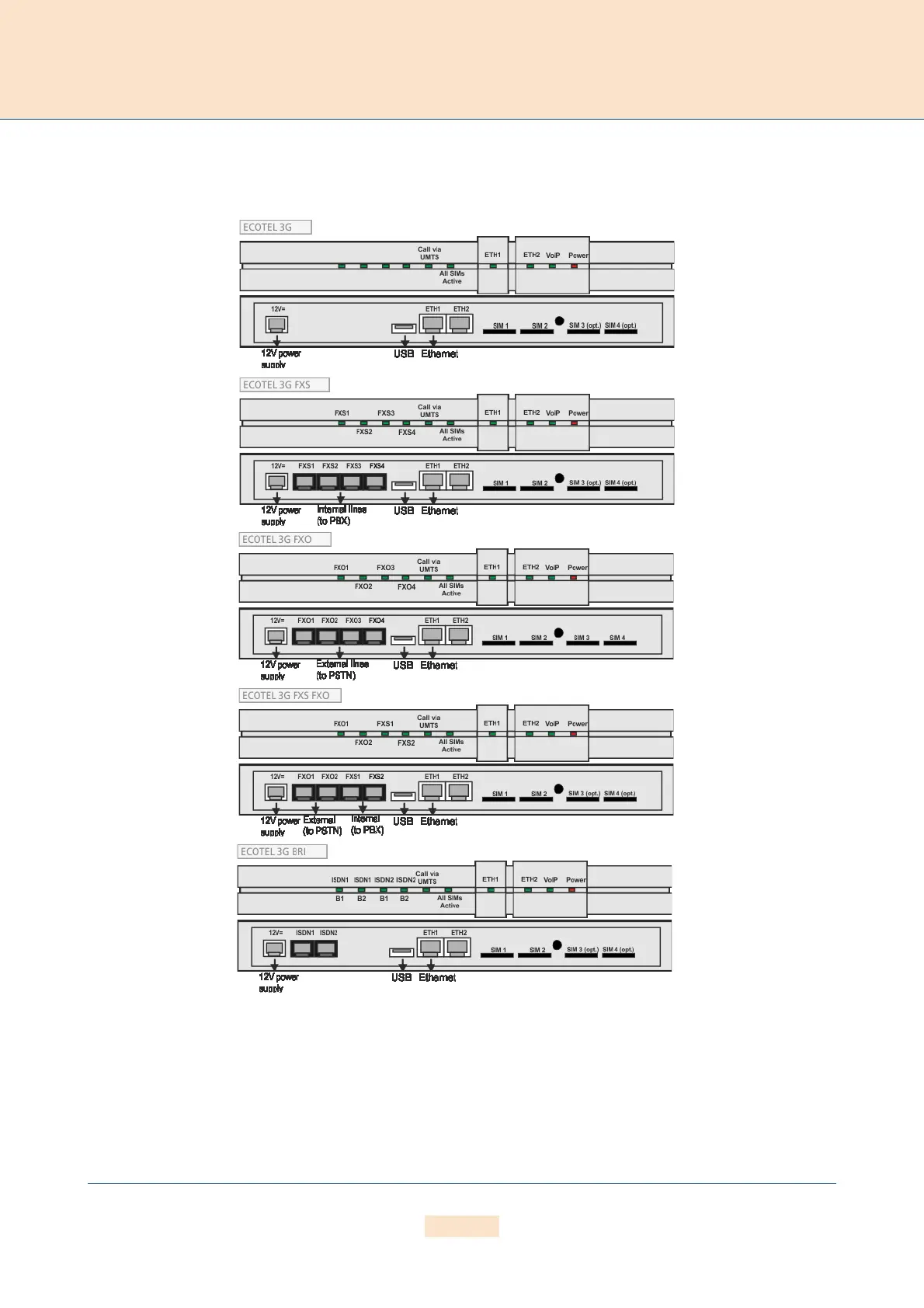

Figure 4.1 ECOTEL 3G: Front and Rear View
