6 ROUTING EXAMPLES
The following examples describe possible implementation scenarios for mobile configuration, H.323, SIP and con-
nection to a Radius server.
6.1 MOBILE GATEWAY IN A CORPORATE SCENARIO

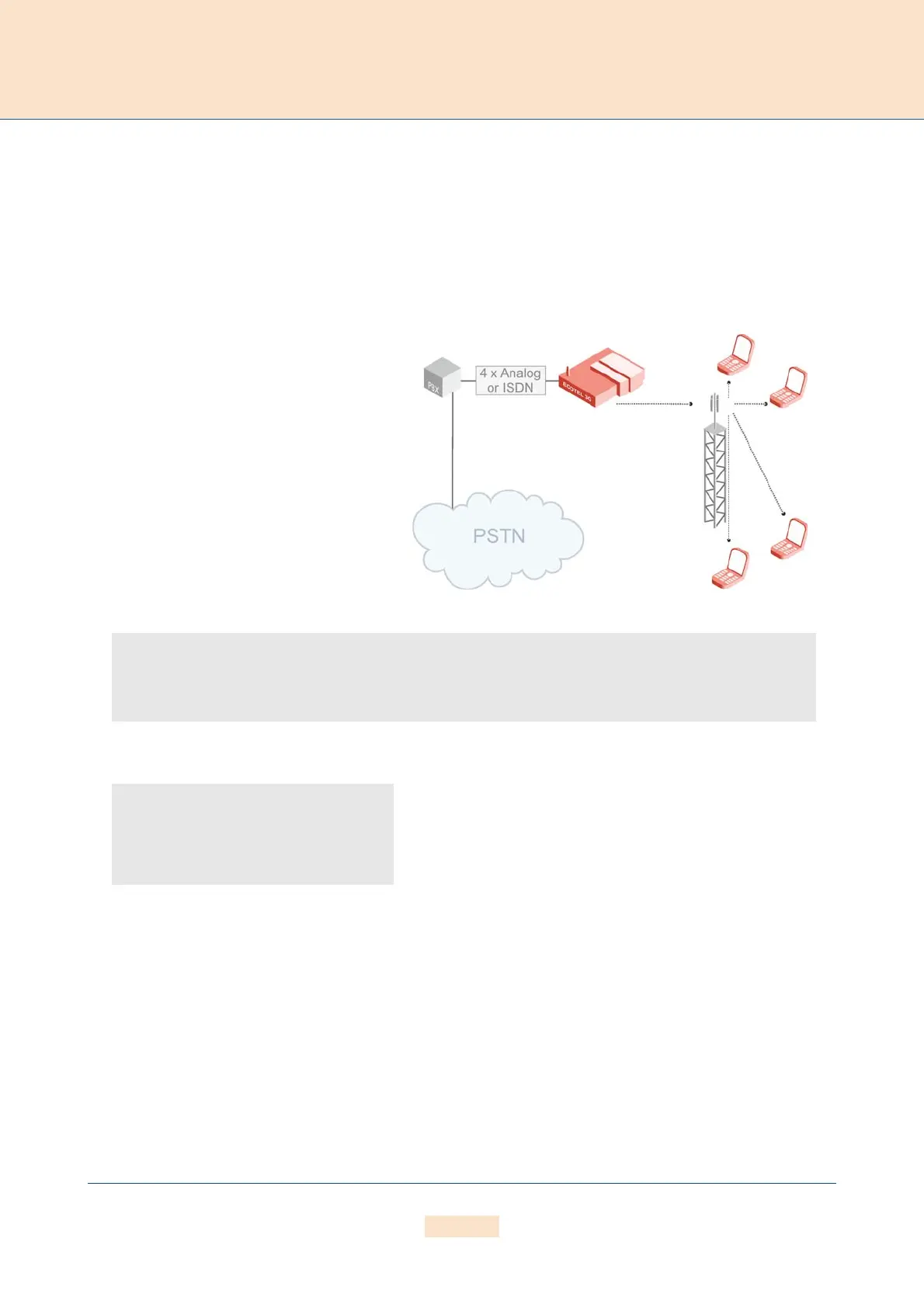

In the following example, the ECOTEL is used
in a corporate scenario for termination of mo-
bile calls. SIM cards from two carriers are in-
serted in the ECOTEL. The PBX sends only calls
that must be terminated directly through the
mobile networks through the four analog lines.
Calls with the mobile carrier prefixes 01555
and 01556 are terminated through the mobile
ports with the LAIN 26212. Calls with the pre-
fixes 01665 and 01666 are terminated
through the mobile ports with the LAIN 26213.
Configuration in the pabx.cfg
Configuration in the route.cfg
...
Subscriber04 = TRANSPARENT ROUTER UMTS[0000,00000,+491555555,1,1,1,SIM4] CHADDR ALARM NEXT
Subscriber05 = TRANSPARENT ROUTER UMTS[0000,00000,+491555555,1,1,1,SIM4] CHADDR ALARM
Subscriber06 = TRANSPARENT ROUTER UMTS[0000,00000,+491666666,1,1,1,SIM4] CHADDR ALARM
Subscriber07 = TRANSPARENT ROUTER UMTS[0000,00000,+491666666,1,1,1,SIM4] CHADDR ALARM
...
[System]
DTMFWaitDial=5
MapAll01555=|2621201555<<17
MapAll01556=|2621201556<<17
MapAll01666=|2621301666<<17
MapAll01665=|2621301665<<17
