Acquiring Sample Data

Using the Xcalibur Data System to Acquire Sample Data

Thermo Scientific TSQ Altis, Quantis, and Fortis Hardware Manual 85

3. If a check mark appears in the Start Instrument column for the MS or if you need to

change the start instrument to another device, click Change Instruments to open the

Change Instruments In Use dialog box (Figure 44).

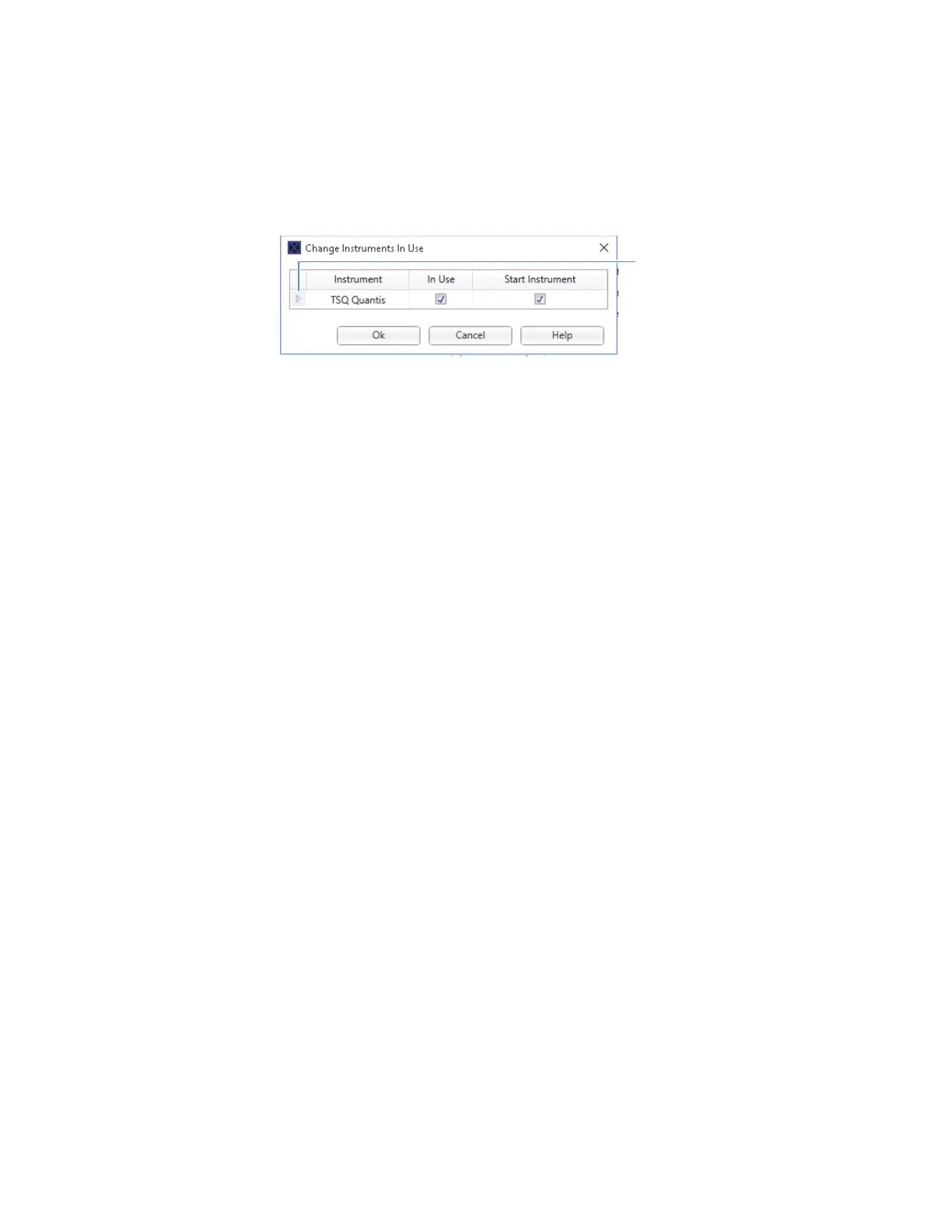

Figure 44. Change Instrument in Use dialog box

a. In the Instrument column, click the arrow in the column on the left of the

instrument and select the device.

b. Click OK.

4. In the Run Sequence dialog box, complete the remaining selections.

5. Click OK.

This completes the start instrument setup.

Acquiring Data Files with the Xcalibur Data System

For instructions, refer to the Instrument Setup and Sequence Setup topics in the Xcalibur

Help.
