Using Basic Tune Functions

Using the Mass List Table in the Define Scan Pane

120 TSQ Altis, Quantis, and Fortis Hardware Manual Thermo Scientific

Adding or Removing Scan Parameters from the Table

Click the Ta bl e icon, , once to add the adjacent scan parameter to the table. Click it

again to remove the parameter from the table.

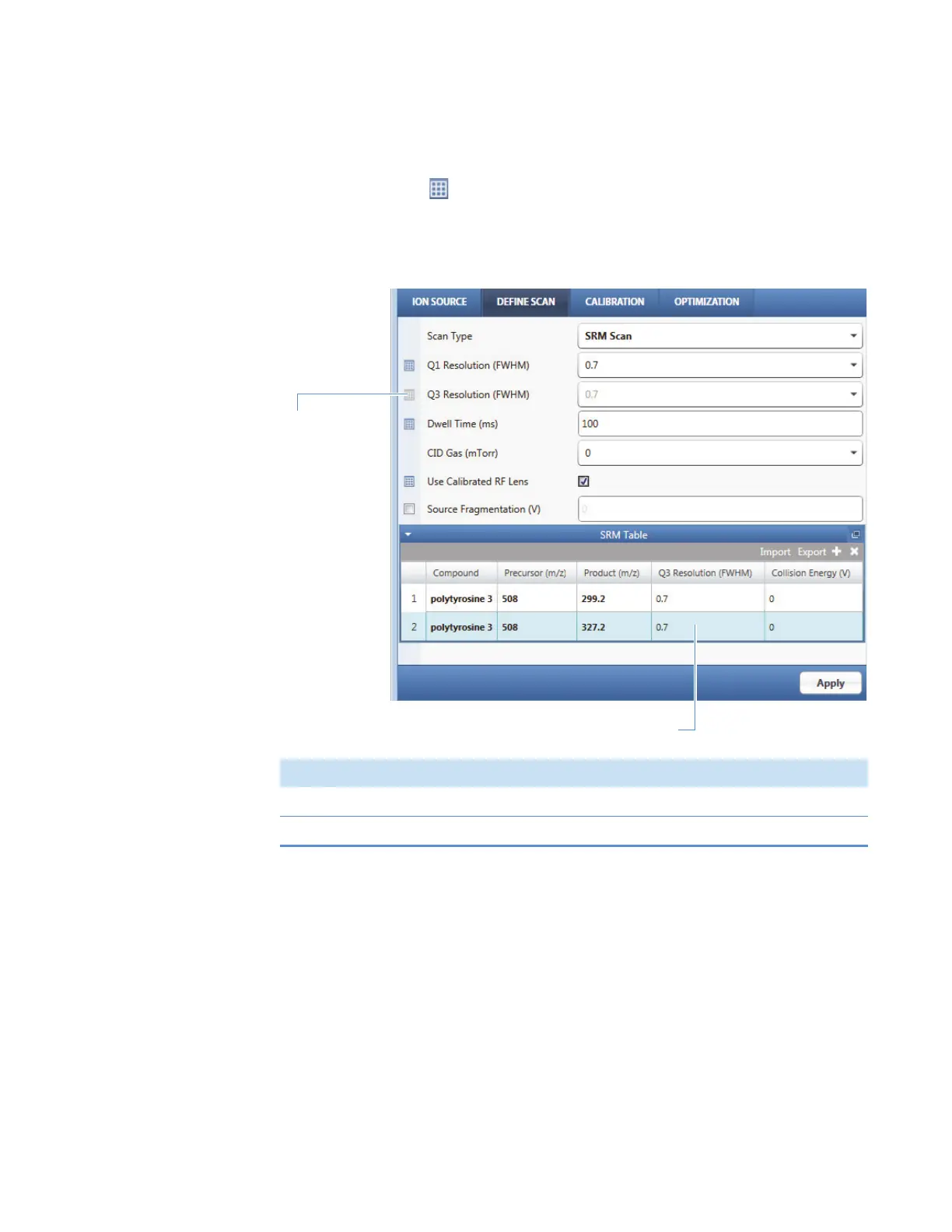

Figure 61 shows an example with Q3 Resolution added to the SRM Table.

Figure 61. Q3 Resolution selected and added to the SRM Table

Importing a Mass List from a File

1. Click Import to open the Open dialog box.

2. Browse to a CSV (Microsoft Excel™), a TXT, or an XML file, and then click Open.

The list of m/z values appears in the table.

No. Description

1. Q3 Resolution is selected (appears gray)

2. Q3 Resolution appears in the table.

Default Chapter7
