Optimizing the Compound Signal

Optimizing Parameters in the Optimization Pane

Thermo Scientific TSQ Altis, Quantis, and Fortis Hardware Manual 69

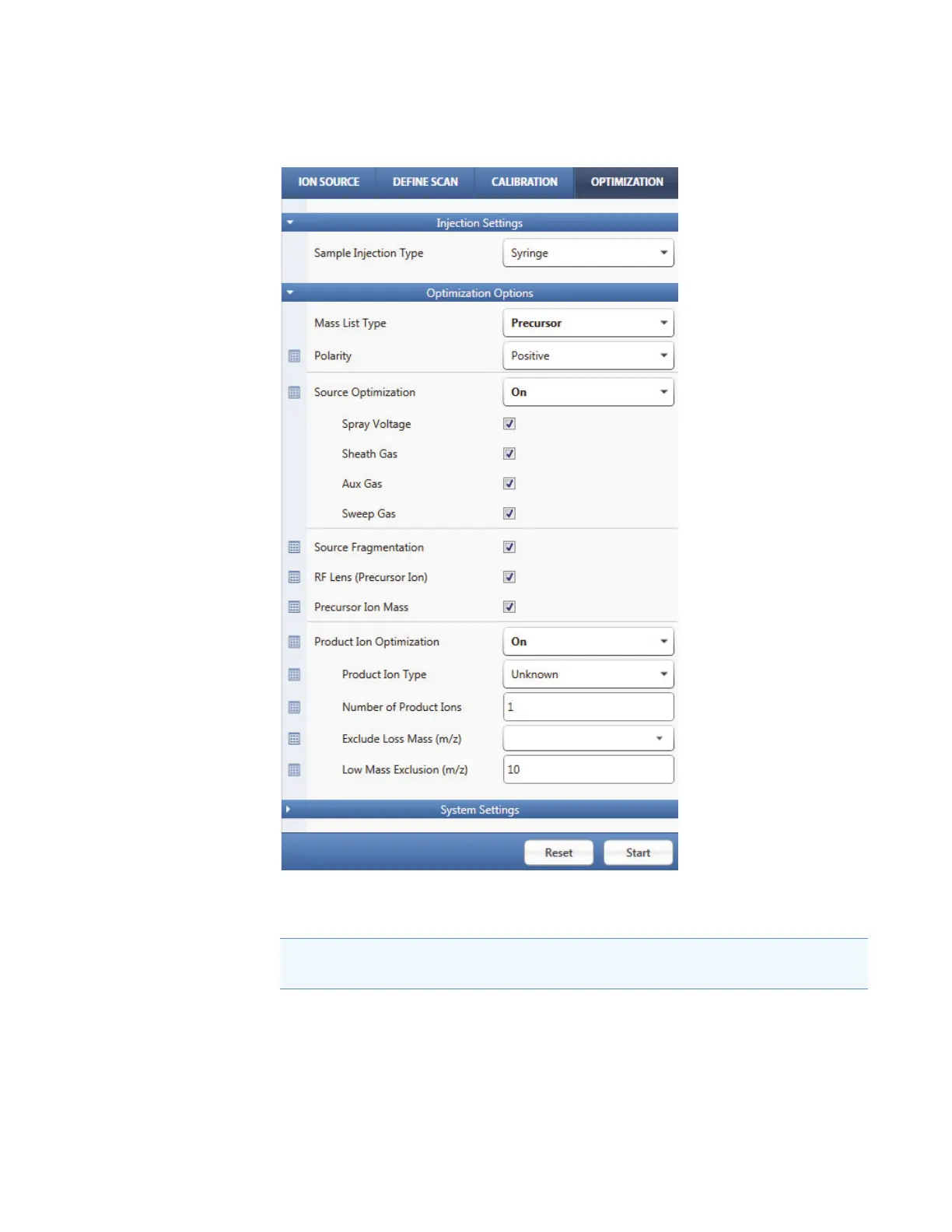

Figure 34. Optimizing the source parameters in the Optimization pane

4. In the Optimization Table, add a row for each compound and modify the column values

as applicable.

5. Place the system in On mode, and then click Start.

After the compound optimization is complete, you can view and save the generated report

for each compound. Figure 35 shows an example of “in progress” graphs and spectra.

Figure 36 shows the Optimization Results table.

Tip If there are multiple syringes, enter the syringe number in the Injection ID

column.
