Vacuum System

Vacuum System Block Diagram

12 TSQ Altis, Quantis, and Fortis Hardware Manual Thermo Scientific

Vacuum System Block Diagram

The vacuum system evacuates the region around the API source interface, ion optics, mass

analyzer, and ion detection system.

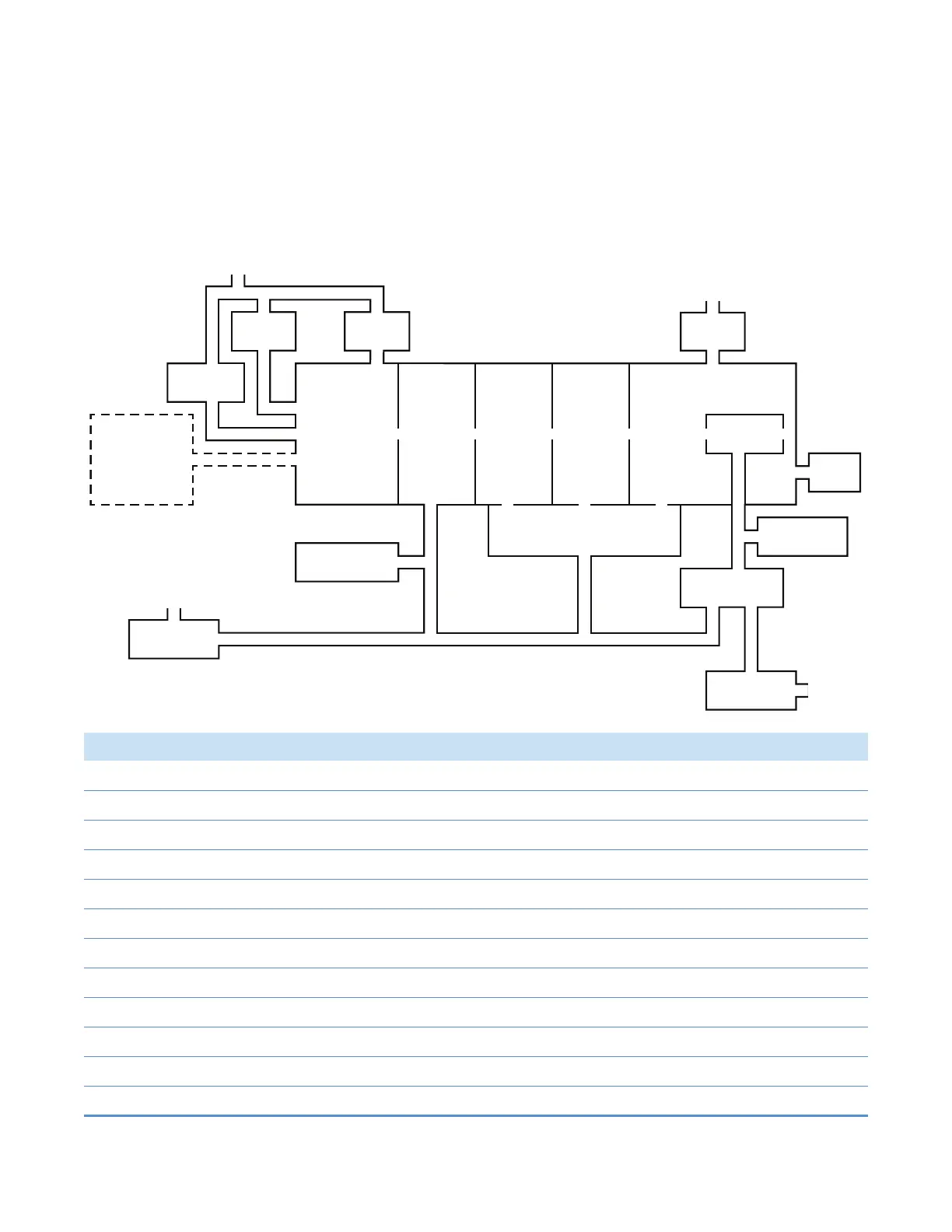

Figure 4. Functional block diagram of the Altis vacuum system

11 12 13

No. Description No. Description

1. Nitrogen gas port 2. Aux gas valve

3. Sheath gas valve 4. Sweep gas valve

5. Filtered air 6. Vent valve

7. Ion source 8. Sample tube

9. Atmospheric pressure region 10. Ion transfer tube and RF lens region

11. MP00 ion optics region 12. MP0 ion optics region

13. Mass analyzer region 14. Collision cell

15. Collision gas divert valve 16. Collision gas valve

17. Argon gas port 18. Exhaust

19. Forepump 20. Triple-inlet turbomolecular pump

21. Convection vacuum gauge 22. Convection vacuum gauge

23. Ion gauge
