Using Basic Tune Functions

Setting the Tune Preferences

118 TSQ Altis, Quantis, and Fortis Hardware Manual Thermo Scientific

Setting the Tune Preferences

You can set a few preferences for how the Tune application works.

1. Click the Options icon, , and then choose Preferences to open the Tune Preferences

dialog box (Figure 60).

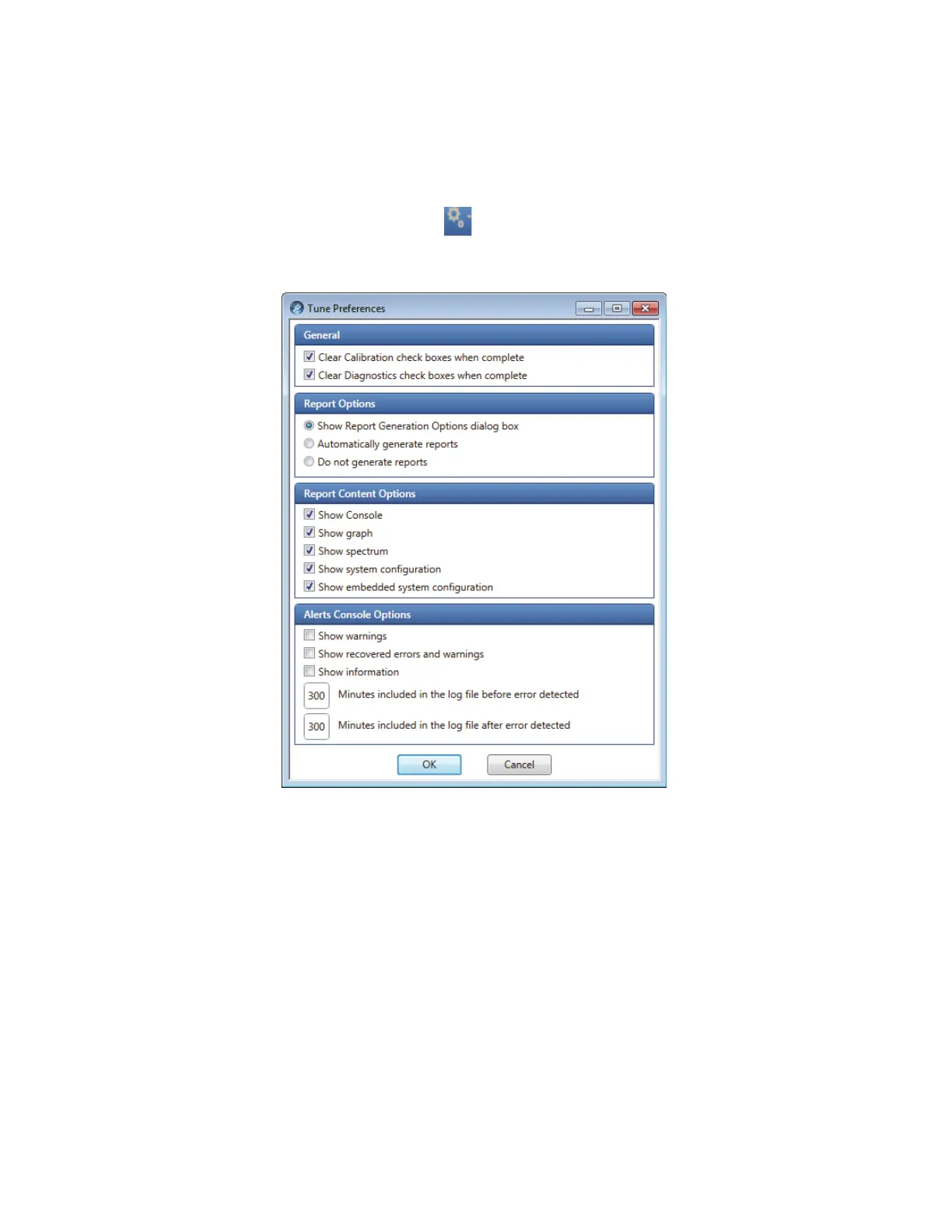

Figure 60. Tune Preferences dialog box

2. Select all check boxes that apply.

3. Under Report Options, select one of the options, and then click OK.
