Calibrating the MS

Evaluating the Spray Stability

58 TSQ Altis, Quantis, and Fortis Hardware Manual Thermo Scientific

Evaluating the Spray Stability

Use the Plot Chromatogram tool to evaluate the stability of the spray.

Before you begin verify:

• The syringe contains the appropriate calibration solution.

• The Tune window has these setting:

1. In the Define Scan pane (Figure 27), set the following parameters:

•Scan Type: SIM (Q1)

• Scan Range (m/z): 622 (602 in Negative Mode)

• Source Fragmentation (V): 30

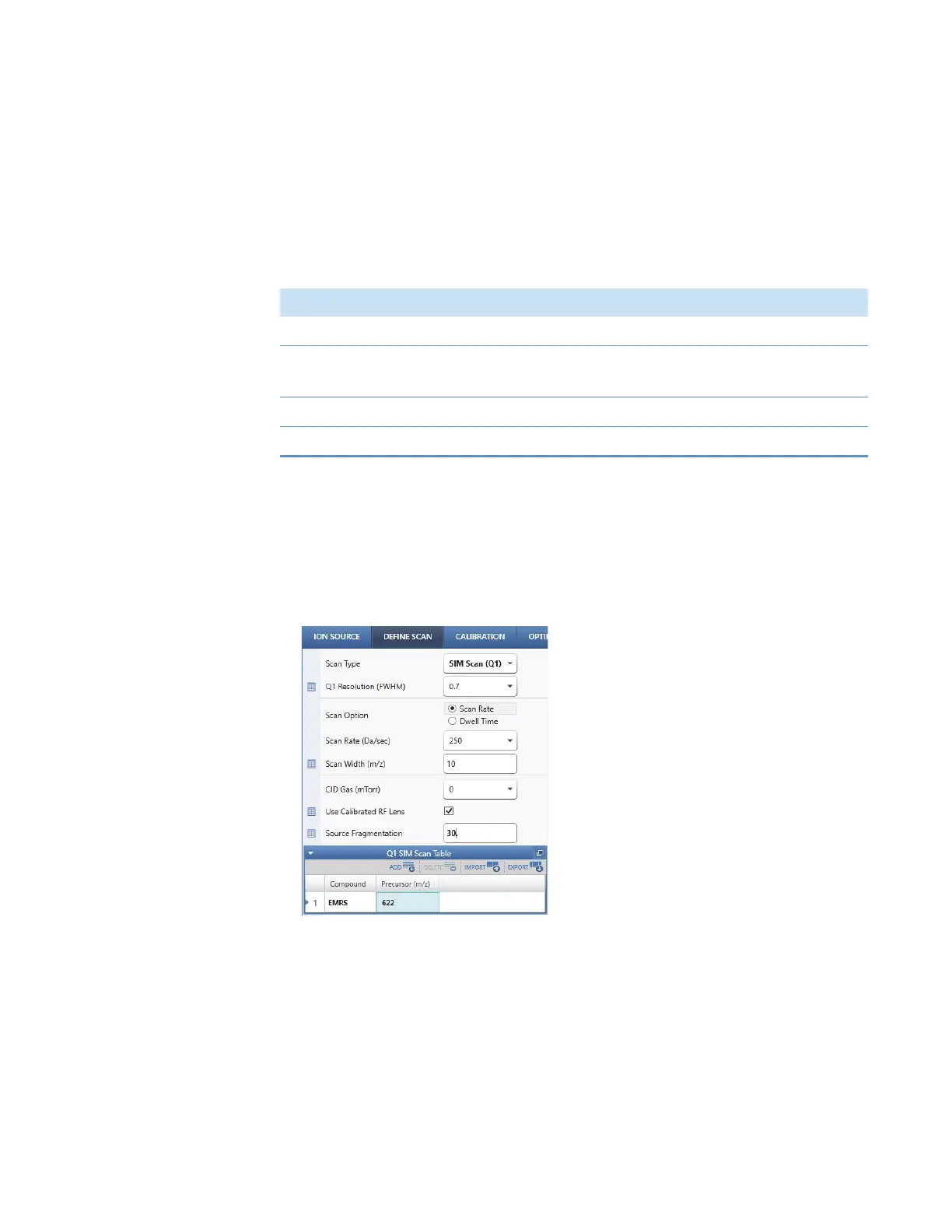

Figure 26. Define Scan parameters

2. Check the H-ESI probe position is as follows:

• Depth: low to medium

• Front-to-back position: closest to the MS entrance

• Side-to-side position: center (closest to the MS entrance)

3. Place the MS in On mode.

Parameter Value

Current LC Flow 5 μl/min

Syringe pump settings box 5 μL/min flow rate and a

500 μL syringe volume

Ion polarity mode Positive

Data type Profile
