Due to flexible scan and return line mapping provided by the keypad (kp.) object,
you can assign any combination of GPIO lines to connect to your keypad. Up to 8
scan and 8 return lines can be assigned. On the EM2001 board, all scan line must be
configured as outputs, and all return lines — as inputs.

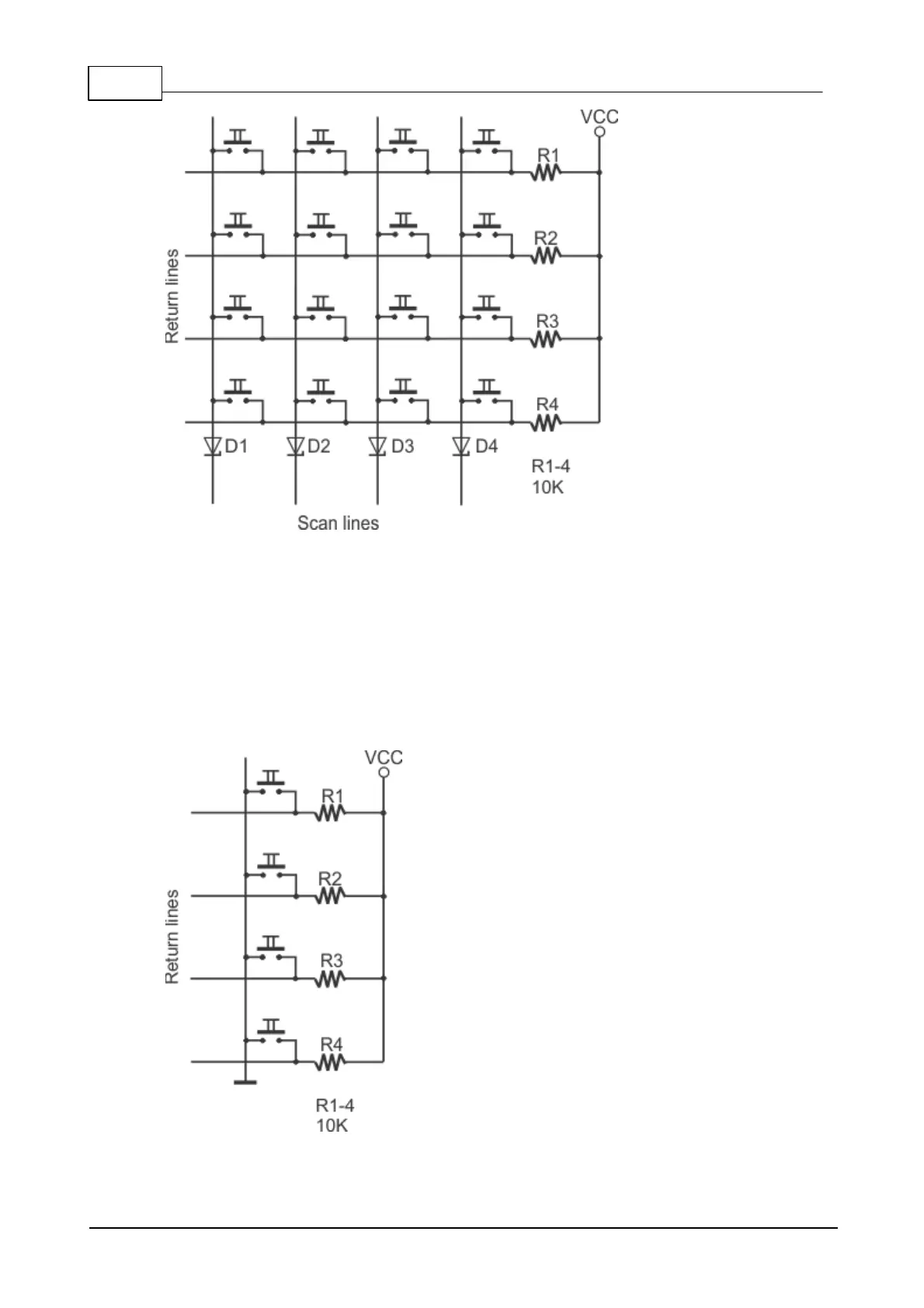

To build a keypad you will need to have at least one return line. A sensible count of
scan lines, however, starts from two! Having a single scan line is like having no scan
lines whatsoever — you might just as well ground this single scan line, i.e. always
keep it active:
