322Tibbo Project System (TPS)
© Tibbo Technology Inc.

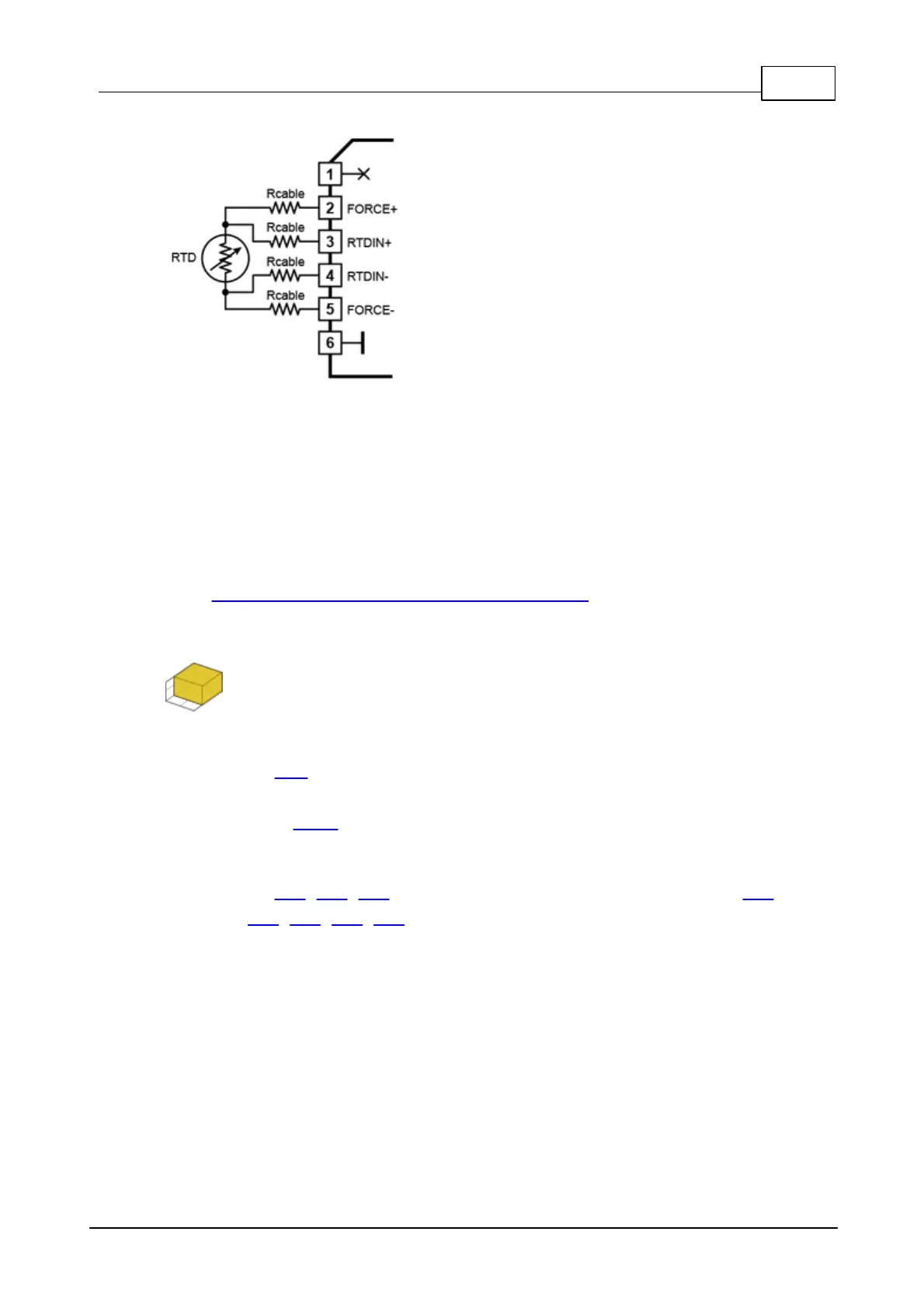

LEDs
There are two red, one yellow, and one green LED. The first red LED is connected to
the SCL line of the I2C interface, the second one – to the -RST line of the PIC
micro. The yellow LED is connected to the SDA line of the I2C interface. The green
LED is on the -INT line.
Sample project
The use of this Tibbit is illustrated by a Tibbo BASIC test project. Yo can find it
here: https://github.com/tibbotech/CA-Test-Tibbit-22.
7.2.9.34
#23, M2T: Isolated PoE Power Supply, 5V Output
Function: Isolated PoE power supply with 5V output, shutdown control. Also can be
used as generic isolated power supply with 35-60V input range.
Form factor: M2T
Category: Power supply module
Special needs: [POE] (unless used as a generic power supply)
Power requirements: PoE-compliant power source (unless used as a generic power
supply, in which case external 35-60V power source is required)
Mates with: #19, #20, #21 (aligns with the lower portion of this Tibbit), #37
See also: #09, #10, #12, #25
