Tibbo DS1100 User Manual

259 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.
7.2.1.2
M2 "Wide" Tibbits
M2 Tibbits are double-width modules occupying two "M" sockets on the standard
tile. They are roughly 14 x 14 "squares" (one "square" is 2.54 x 2.54 mm).
With double the size comes the doubled internal space and I/O capacity. M2s have
eight I/O lines. They are used for "grander things" that just wouldn't fit into the M1
form factor.

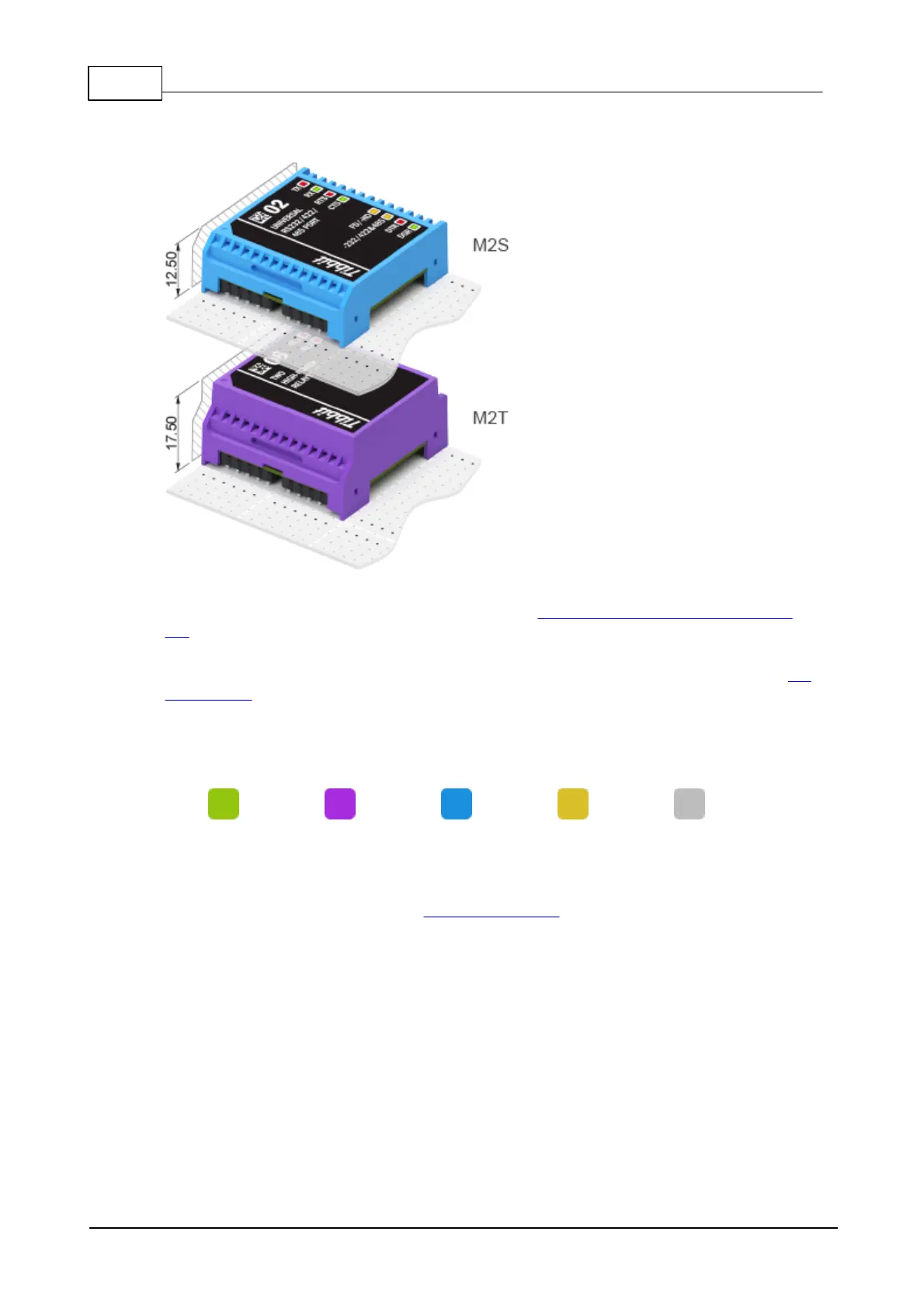

Like M1s, M2 devices can be short (M2S) or tall (M2T).
The color coding scheme is identical to that of M1 Tibbits:
Input
module
Output
module
Input/
Output
Power
supply
Blank
module
M2 Tibbits can incorporate up to eight status LEDs.
I/O pins
M2 modules have 4 groups of 6 pins arranged into 2 rows:
