Note that the DS110x devices cannot accommodate the PoE and Wi-Fi options at
the same time.
8.1.1.2
Ethernet Port

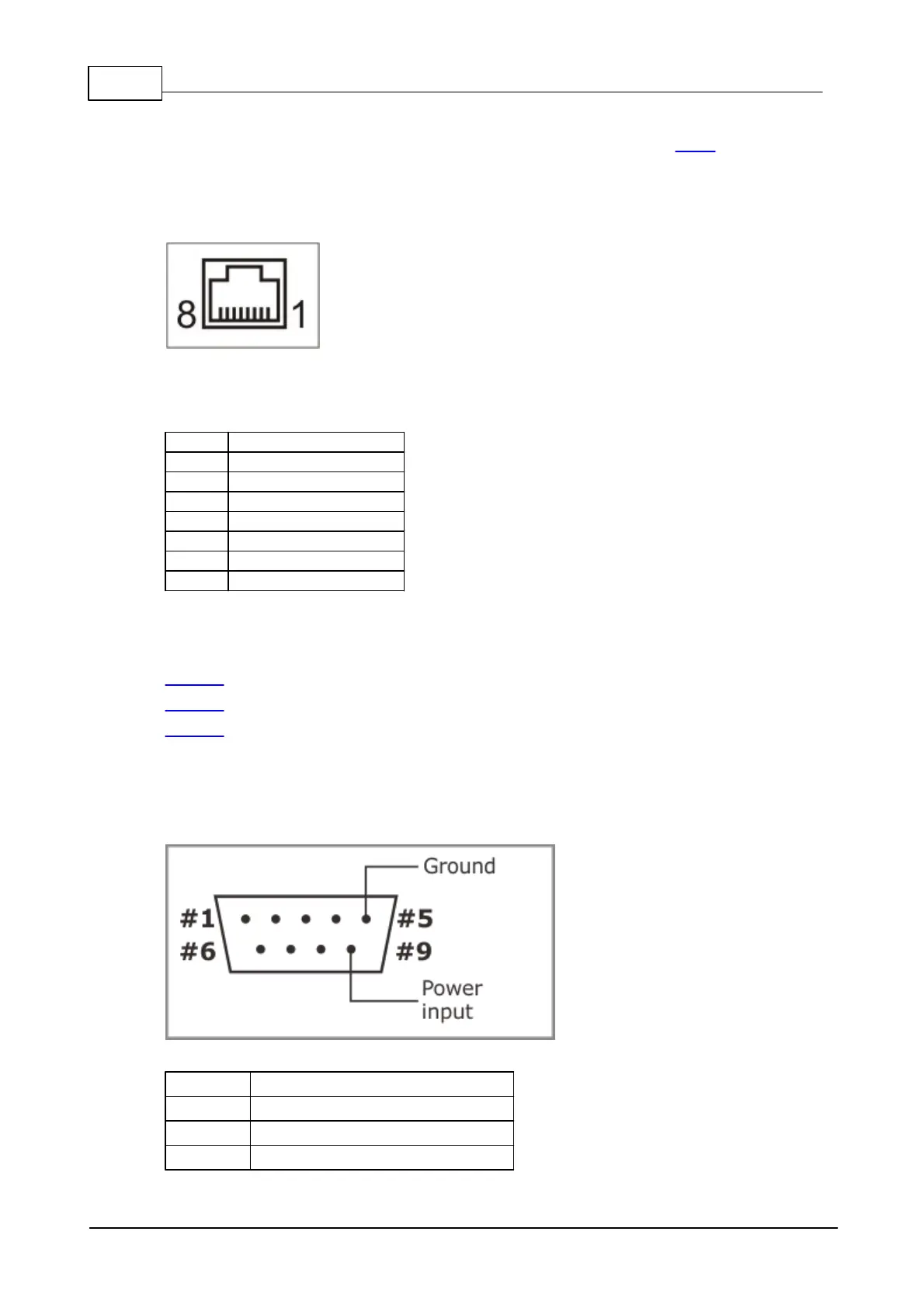

The Ethernet port of the DS110x is of 10/100BaseT type.
The connector is of RJ45 type, pin assignment is as follows:
#1
TX+
#2
TX-
#3
RX+
#4
PoE+
#5
PoE+
#6
RX-
#7
PoE-
#8
PoE-
8.1.1.3
Serial Port
Serial port capabilities are different for each device in the DS110x family:
DS1100
DS1101
DS1102
DS1100
The DS1100 carries a single-channel RS232 DB9M port.
#1
<No connection>
#2
RX (input)
#3
TX (output)
#4
DTR (output)
