310Tibbo Project System (TPS)
© Tibbo Technology Inc.
The module has a dedicated shutdown (-SDWN) line. Pull the line LOW to disable
this Tibbit.
LEDs
There are two red and two green LEDs. The first red LED is connected to the +5V
input. The second red LED is connected to the -SHUTDOWN line and lights up when
the line is LOW (i.e. when the module is in shutdown). Green LEDs are +15V and -
15V power indicators.
* "Mates" in this case means "doesn't mind them close" as this device requires no
connector Tibbits for its own operation.
7.2.9.24

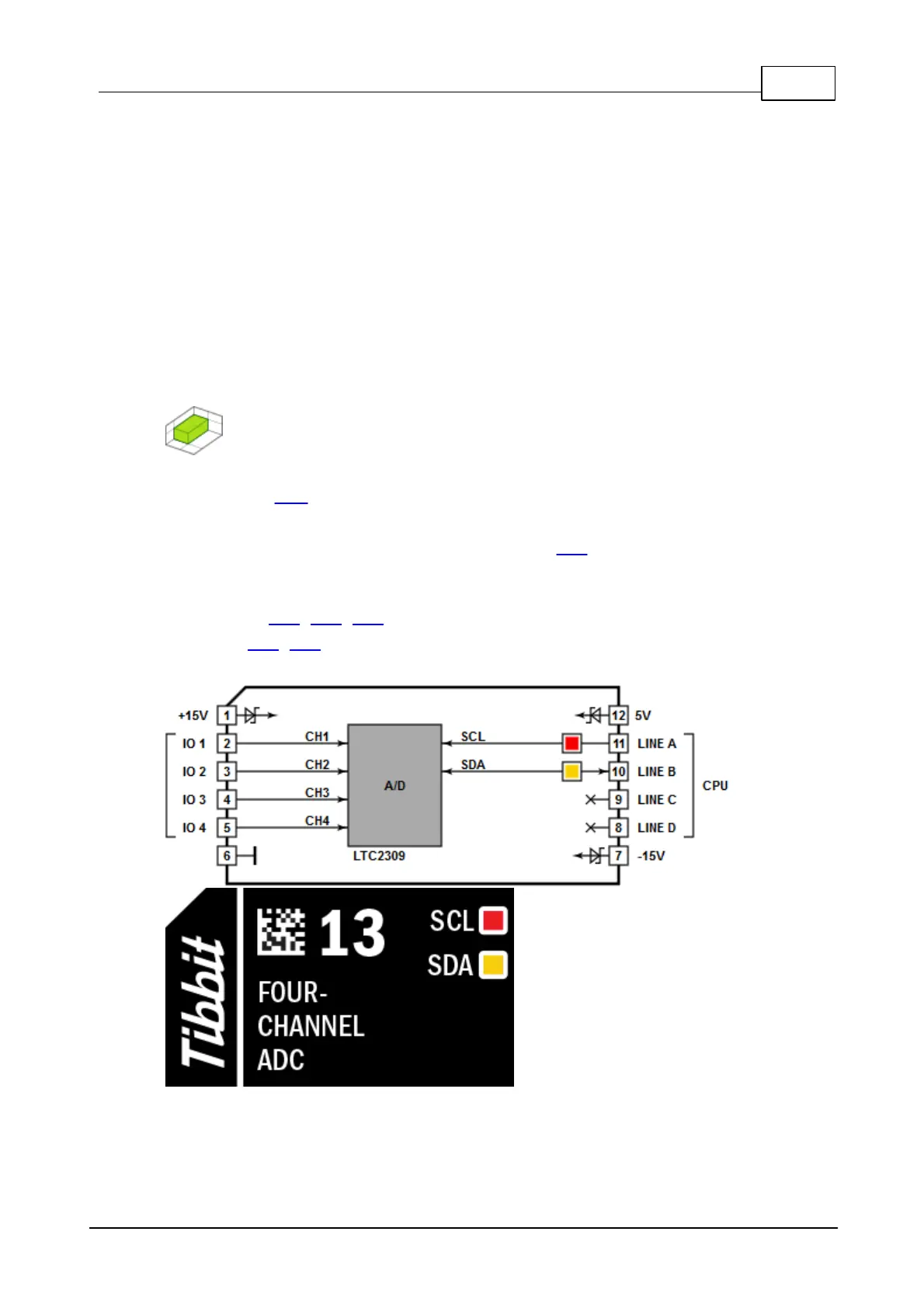

#13, M1S: Four-channel ADC
Function: Four-channel ADC
Form factor: M1S
Category: Input module
Special needs: +15V and -15V power (use Tibbit #12 to generate these voltages)
Power requirements: 5V/10mA, 15V/9mA, -15V/3.5mA (the aggregated
consumption through Tibbit #12 is 66mA)
Mates with: #19, #20, #21 (limited use)
See also: #12, #14
