306Tibbo Project System (TPS)
© Tibbo Technology Inc.
Details

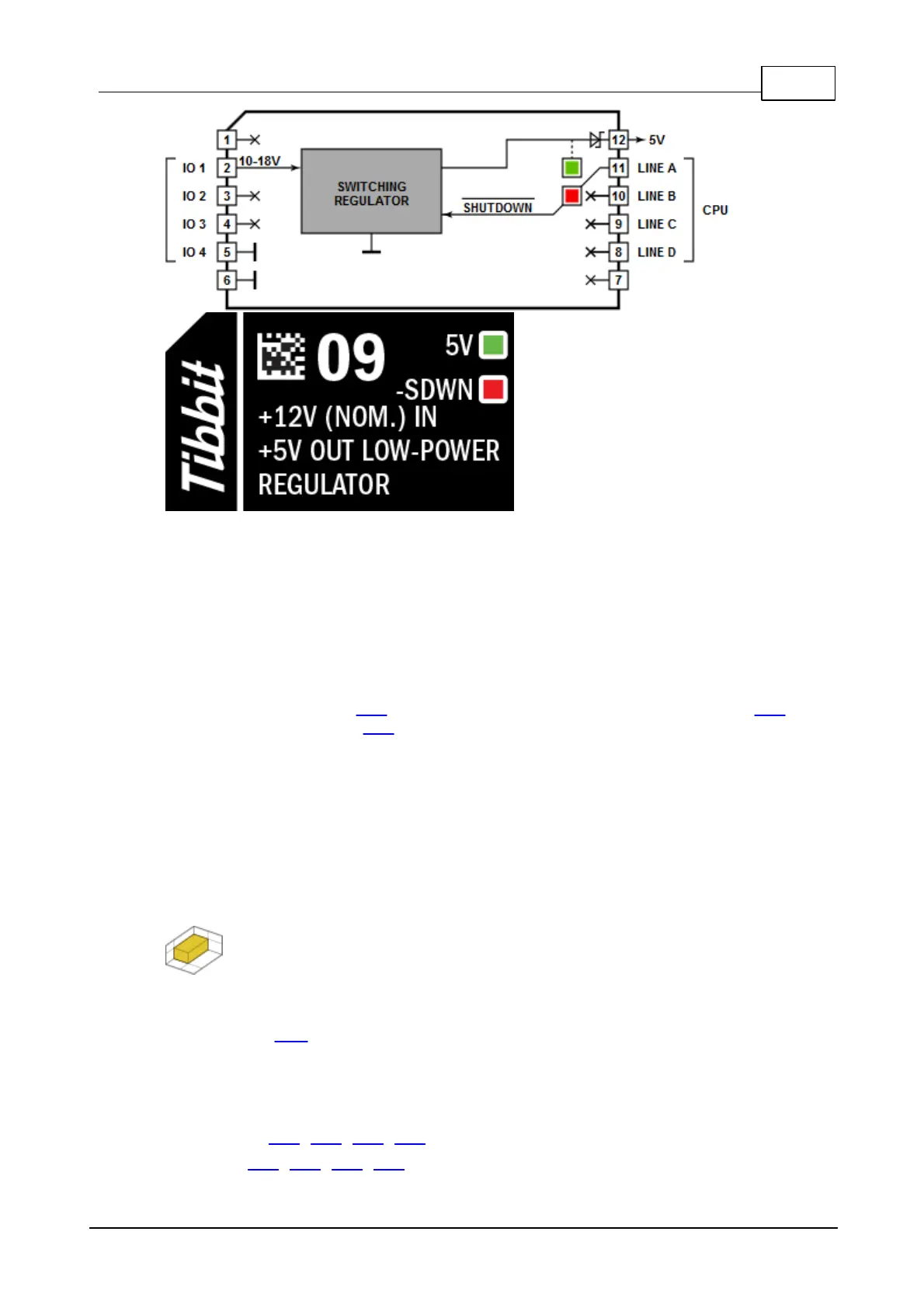

This Tibbit is capable of generating up to 700mA of 5V power from the external input
in the 9-18V range. Multiple power supply Tibbits can be used to increase available
current or for power redundancy.
The module has a dedicated shutdown (-SDWN) line. Pull the line LOW to disable
this Tibbit.
Combine this Tibbit with #18 (it has a power jack and two terminal blocks), #20
(nine terminal blocks), or #21 (four terminal blocks).
LEDs
There is one green and one red LED. The green LED is connected to the +5V output
and lights up when the voltage is present on this line. Red LED is connected to the -
SHUTDOWN line and lights up when the line is LOW (i.e. when the power supply is in
shutdown). The red LED is buffered (with a logic gate).
7.2.9.21
#10, M1T: Medium-power 5V Supply, 12 V Input
Function: Medium-power non-isolated power supply with 5V output, 9-18V input
range, and shutdown control
Form factor: M1T
Category: Power supply module
Special needs: ---
Power requirements: external 9-18V power
Mates with: #18, #19, #20, #21
See also: #09, #12, #23, #25
