Tibbo DS1100 User Manual

76Embedded Modules
© Tibbo Technology Inc.
* MiniMo is a registered trademark of Tibbo Technology.
** Fully supported with the exception of fd.copyfirmware; requires an externally
connected flash IC.
Detailed Device Info
See these topics for more information on various hardware facilities of the EM500:
· Serial Port and General-purpose I/O Lines
· Ethernet Port Lines
· Flash and EEPROM Memory
· LED Lines
· Power, Reset, and Mode Selection Lines

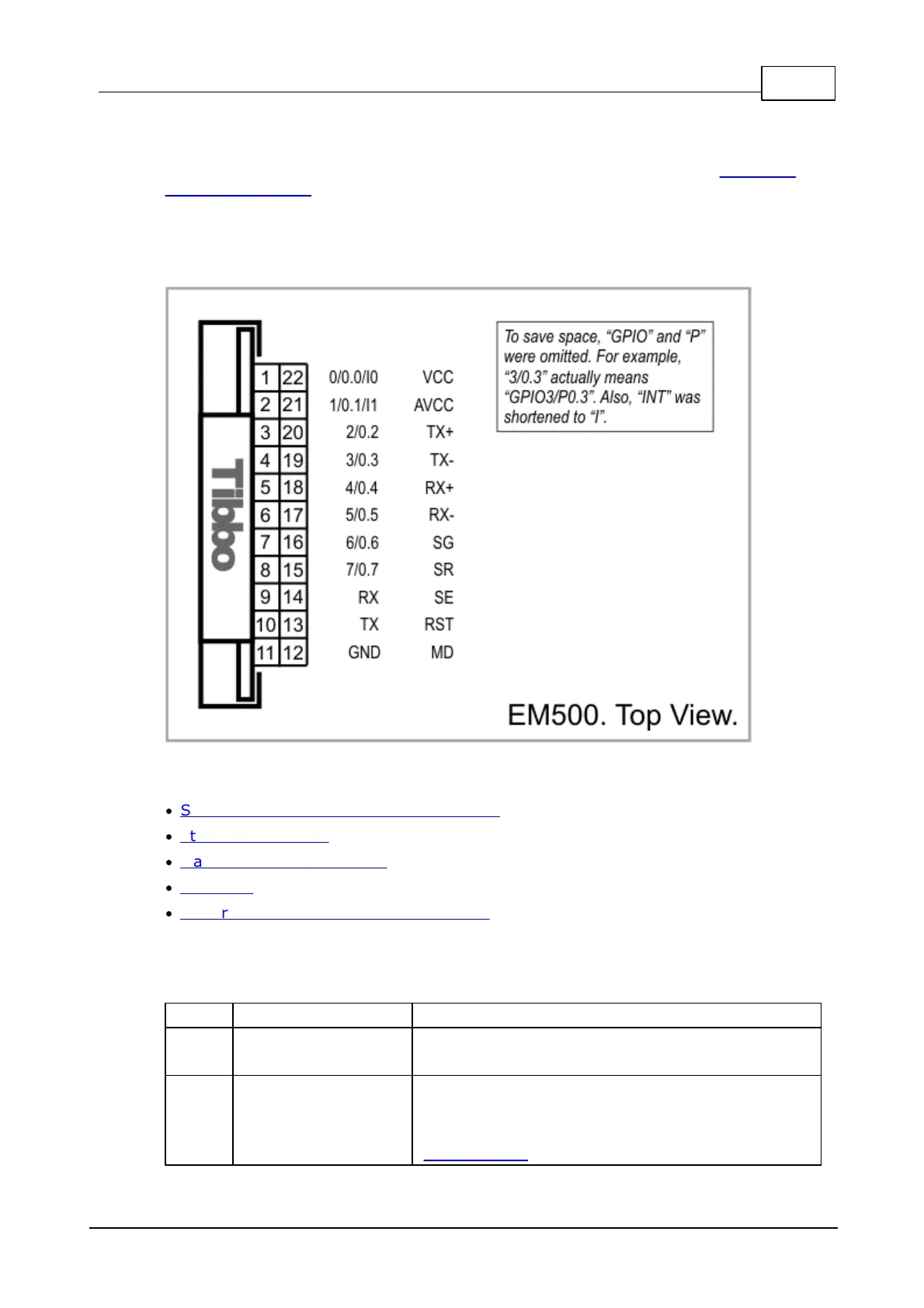

I/O pin assignment
Pin #
Function
Description
1
(1,2,3)
GPIO0/P0.0/INT0
General-purpose I/O line 0 (P0.0);
interrupt line 0.
2
(1,2,3)
GPIO1/P0.1/INT1
General-purpose I/O line 1 (P0.1);
interrupt line 1;
for flash disk operation, connect to SI and SO of
external flash.
