7.2.1.6

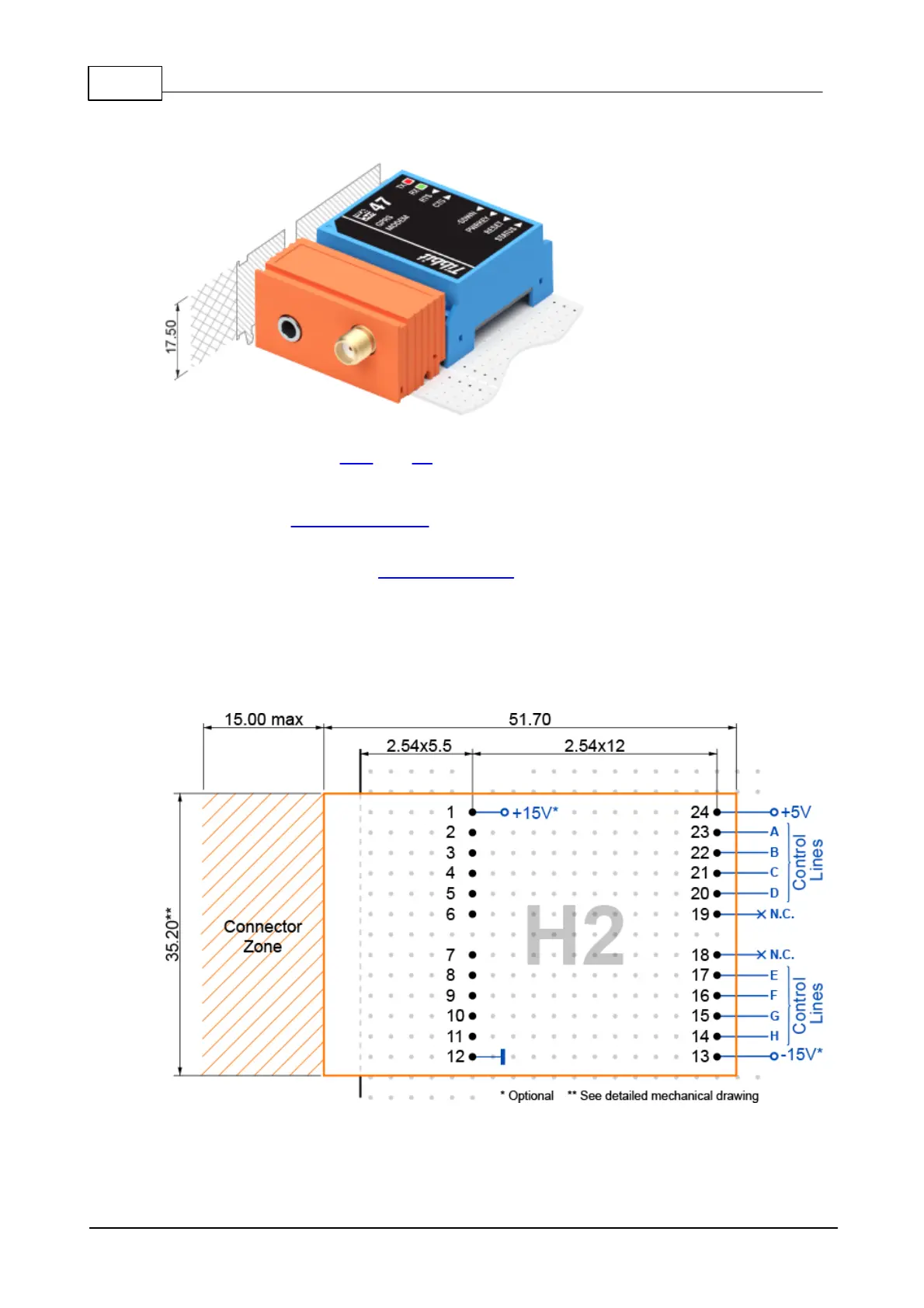

H2 "Hybrid" Tibbits
H2 Tibbits are merged M2T and C2 devices. They occupy the combined space of
one M2 and one C2 Tibbit.
The H2 form factor is used when it is unsafe or undesirable to interconnect M2 and
C2 Tibbits via a Tibbo Project PCB (or any other host board).
Examples of such cases are high-voltage and high-frequency (radio) circuits.
H3 devices can have up to eight status LEDs on the M2 side.
I/O pins
H2 devices have no pins on their C2 "section":
