Tibbo DS1100 User Manual

524Companion Products
© Tibbo Technology Inc.
p
Aver
.
1.27
Connector pin pitch
s1
Aver
.
29.7
Distance from the face to the connector pins
s2
Aver
.
19.0
Distance from connector pins to the vertical centerline of solder
tails
s3
Aver
.
23.0
Distance from connector pins to the vertical centerline of
mounting stands
h1
Aver
.
17.5
Distance between the horizontal centerlines of mounting stands
h2
Aver
.
18.5
Distance between the horizontal centerlines of solder tails
Dimensions are for reference only. Tibbo assumes no responsibility for any errors in
this Manual, and does not make any commitment to update the information
contained herein.

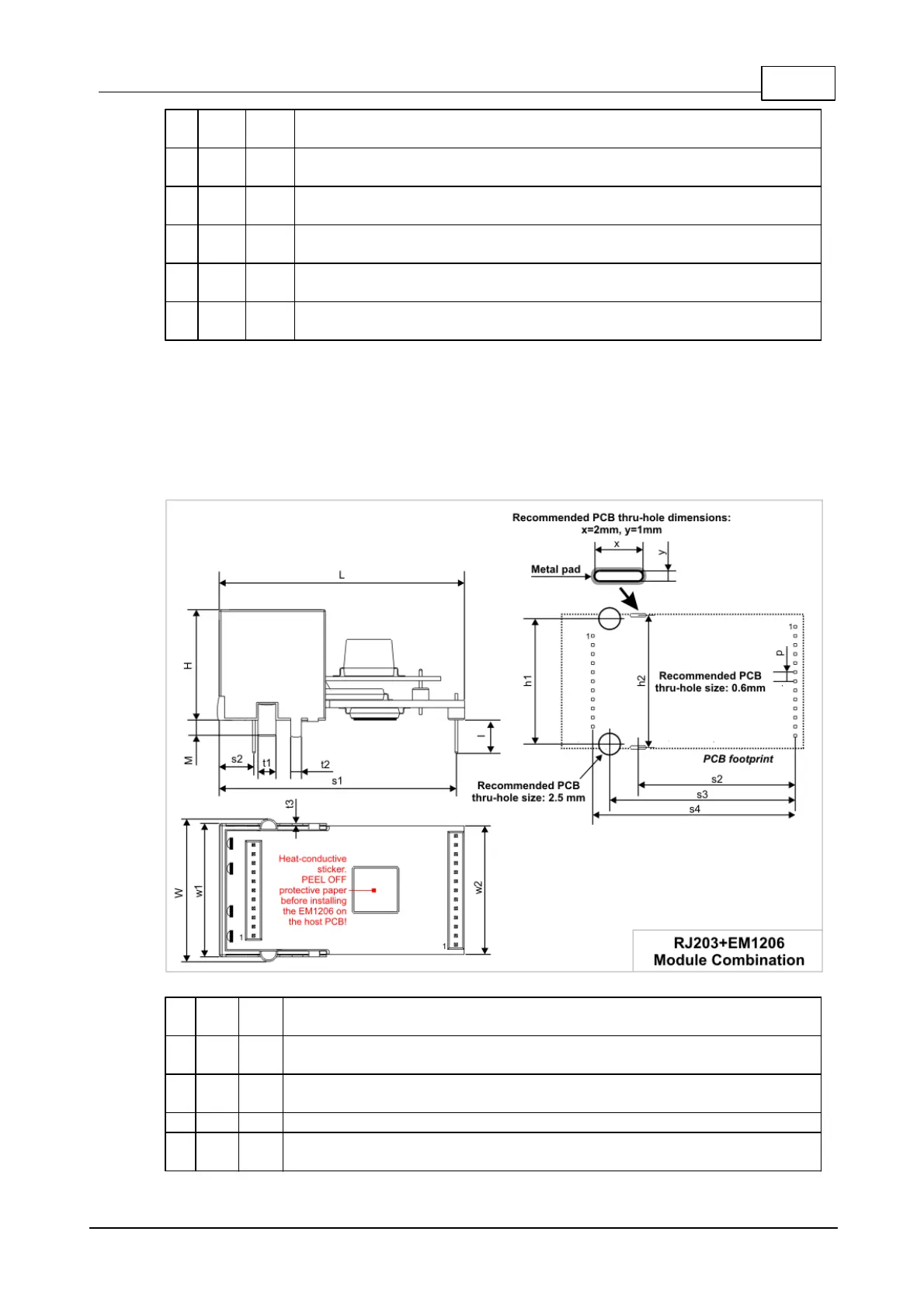

Mechanical Dimensions: RJ203+EM1206
L
Max
.
34.4
Length
W
Max
.
20.0
Width
H
Max
.
15.5
Height
l
Min.
4.0
Connector pin length
w
1
Max
.
19.0
Width at the face excluding mounting stands

Tibbo DS1100 Specifications

General

Brand	Tibbo
Model	DS1100
Category	Controller
Language	English
