338Tibbo Project System (TPS)
© Tibbo Technology Inc.
Form factor: C1
Special needs: Tibbit #00-3
Power requirements: 5V/2mA
See also: #28, #29, #35, #36
Details

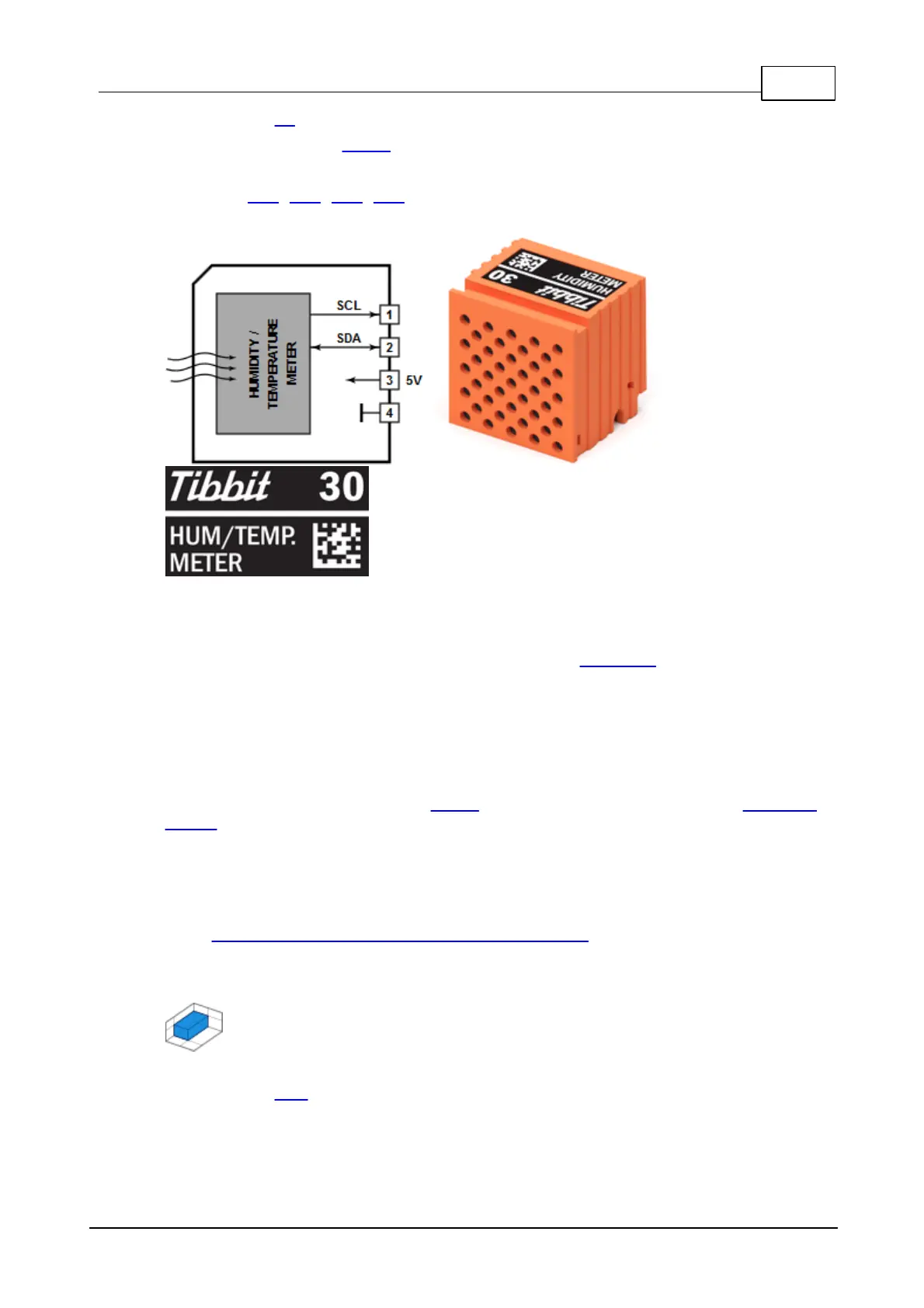

This Tibbit is based on the HIH6130 ambient humidity and temperature sensor IC
with I2C interface. The sensor is implemented as the C1 device with perforated
front face and a rubber wall separating the sensor from the internal space of the
TPS system. This is done to minimize the influence of the heat produced by the TPS
motherboard and adjacent Tibbits.
The module measures the ambient relative humidity with 0.04% resolution and +/-
4%RH accuracy. The temperature is measured with 0.025 deg.C resolution and +/-1
deg.C accuracy.
This C1 device requires the Tibbit #00-3 to be installed in the neighboring "M" Tibbit
socket. #00-3 provides two direct lines for I2C comms, as well as the ground and
+5V power for the HIH6130 IC.
Sample project
The use of this Tibbit is illustrated by a Tibbo BASIC test project. Yo can find it
here: https://github.com/tibbotech/CA-Test-Tibbit-30.
7.2.9.41
#31, C1: PIC Coprocessor
Function: PIC coprocessor (PWM, ADC, UART, IO)
Form factor: M1S
Category: Input/output module
Special needs: ---
Power requirements: 5V/20mA
