275 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.
7.2.6.1
C1 + M1

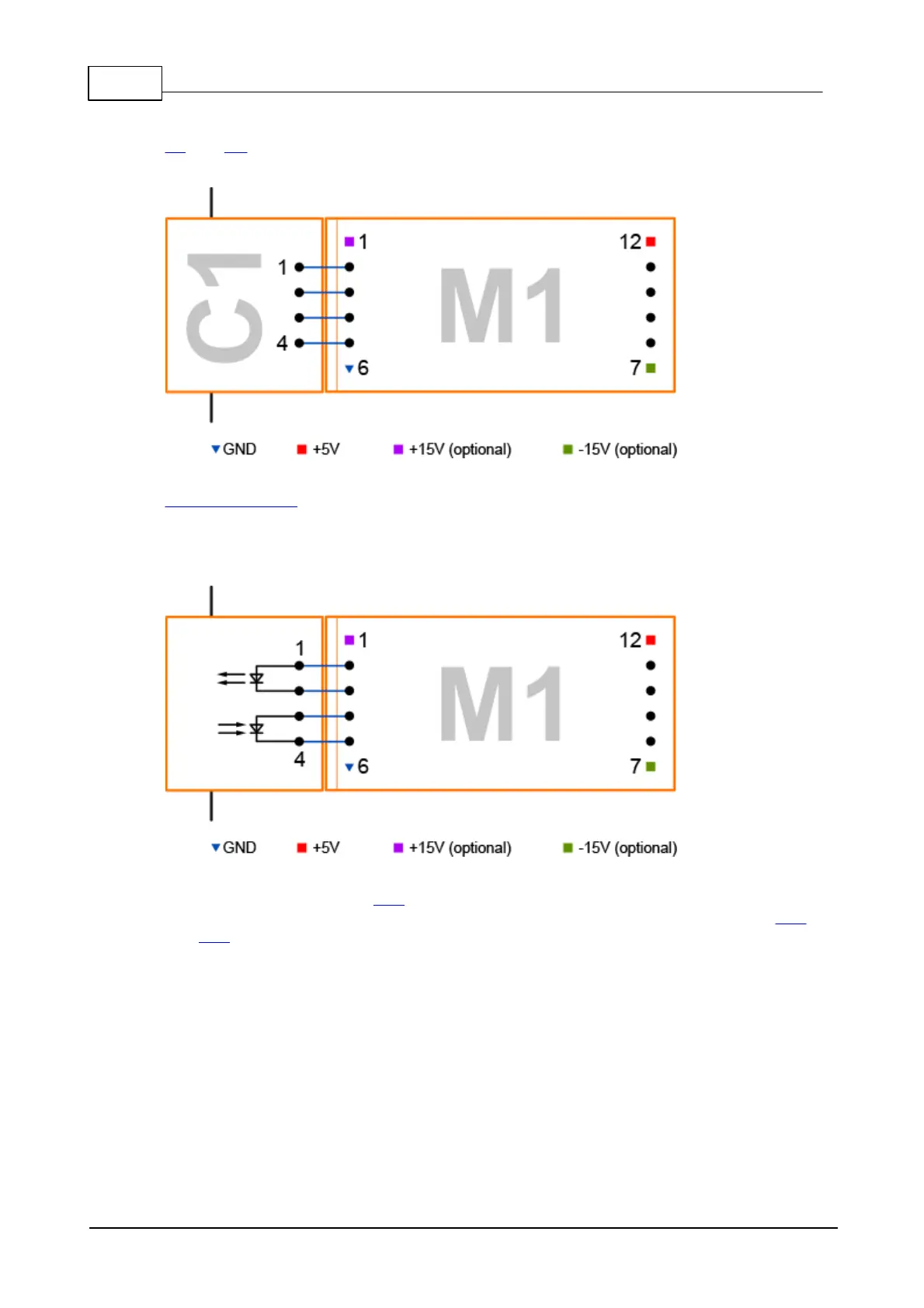

C1 and M1 devices are interconnected by four interface lines:
As was explained, C1 devices do not have dedicated ground and power lines.
Sometimes, such lines are just not necessary. For example, Tibbit #27 (IR
receiver/transmitter) works fine without the ground and power:
Some C1 devices, such as #18 (power input) do need to be connected to the
system ground. Tibbit #18 was designed to be used with power supply Tibbits #09
and #10. These "M" devices provide ground on their pin 5, and this solves the
problem. Incoming supply voltage (Vin) is routed through pin 1:
