o io — handles I/O lines, ports, and interrupts
o kp — works with matrix and binary keypads
o lcd — controls graphical display panels
o net — controls the Ethernet port
o pat — "plays" patterns on up to five LED pairs
o ppp — accesses the Internet over a serial modem (GPRS, etc.)
o pppoe — accesses the Internet over an ADSL modem
o romfile — facilitates access to resource files (fixed data)
o rtc — keeps track of date and time
o ser — controls serial ports (UART, Wiegand, clock/data modes)
o sock — socket comms (up to 16 UDP, TCP, and HTTP sessions)
o ssi — controls serial synchronous interface channels (SPI, I2C...)
o stor — provides access to the EEPROM
o sys — in charge of general device functionality
o wln — handles the Wi-Fi interface
· 27 string functions, 8 date/time conversion functions, encryption/hash calculation
functions (RC4, MD5, SHA-1), and more
· Function Groups: 27 string functions, 8 date/time conversion functions,
encryption/hash calculation functions (RC4, MD5, SHA-1), and more
Tiles, Sockets, Connectors, Controls

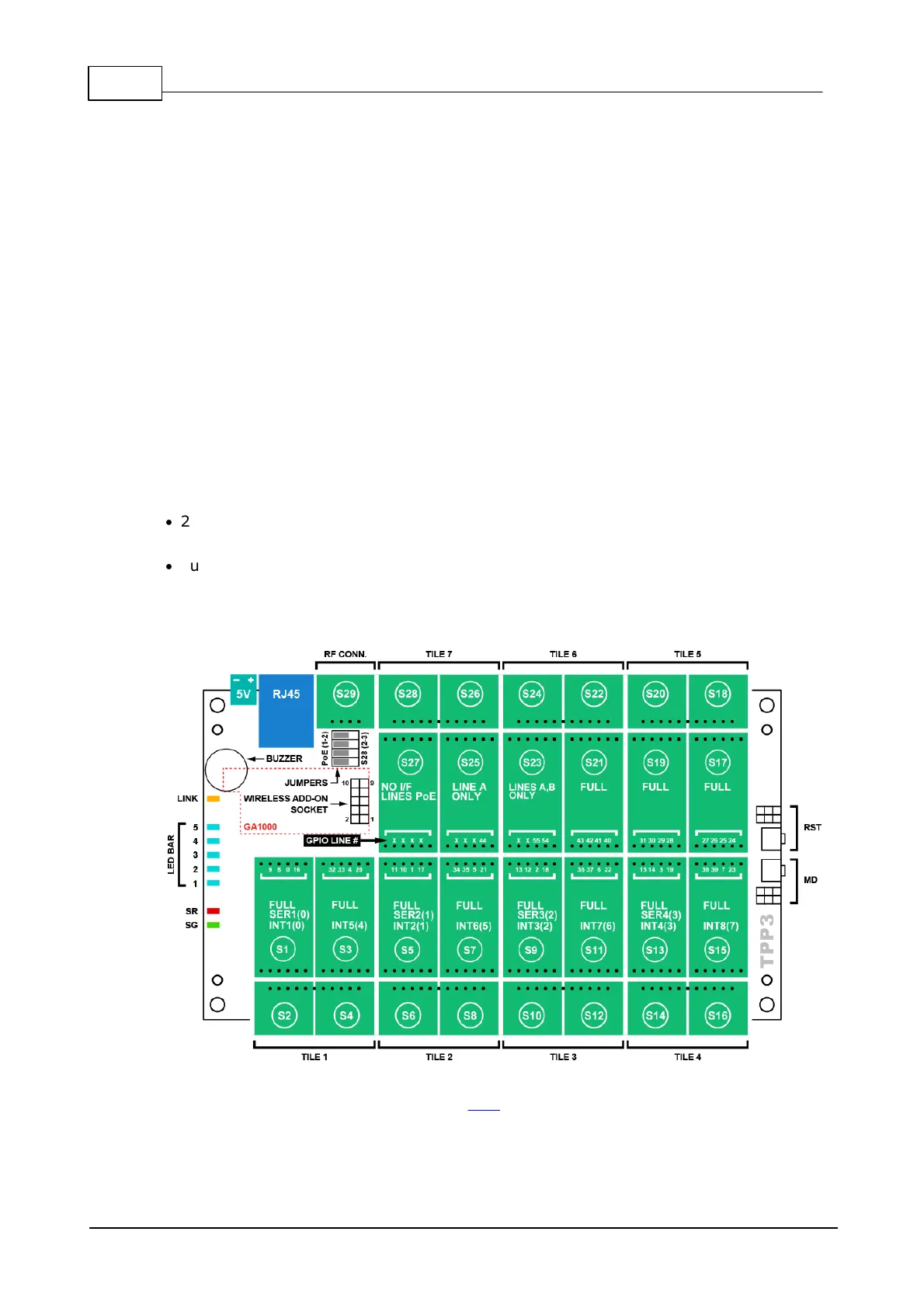

The TPP3 board features 14 x "M" and (14+1) x "C" sockets.
Sockets (S1) ~ (S28) form 7 standard tiles.
There are 47 control lines connecting "M" sockets to the CPU. The number of control
lines is smaller than the number of "M" sockets multiplied by four. This is because
