273 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.

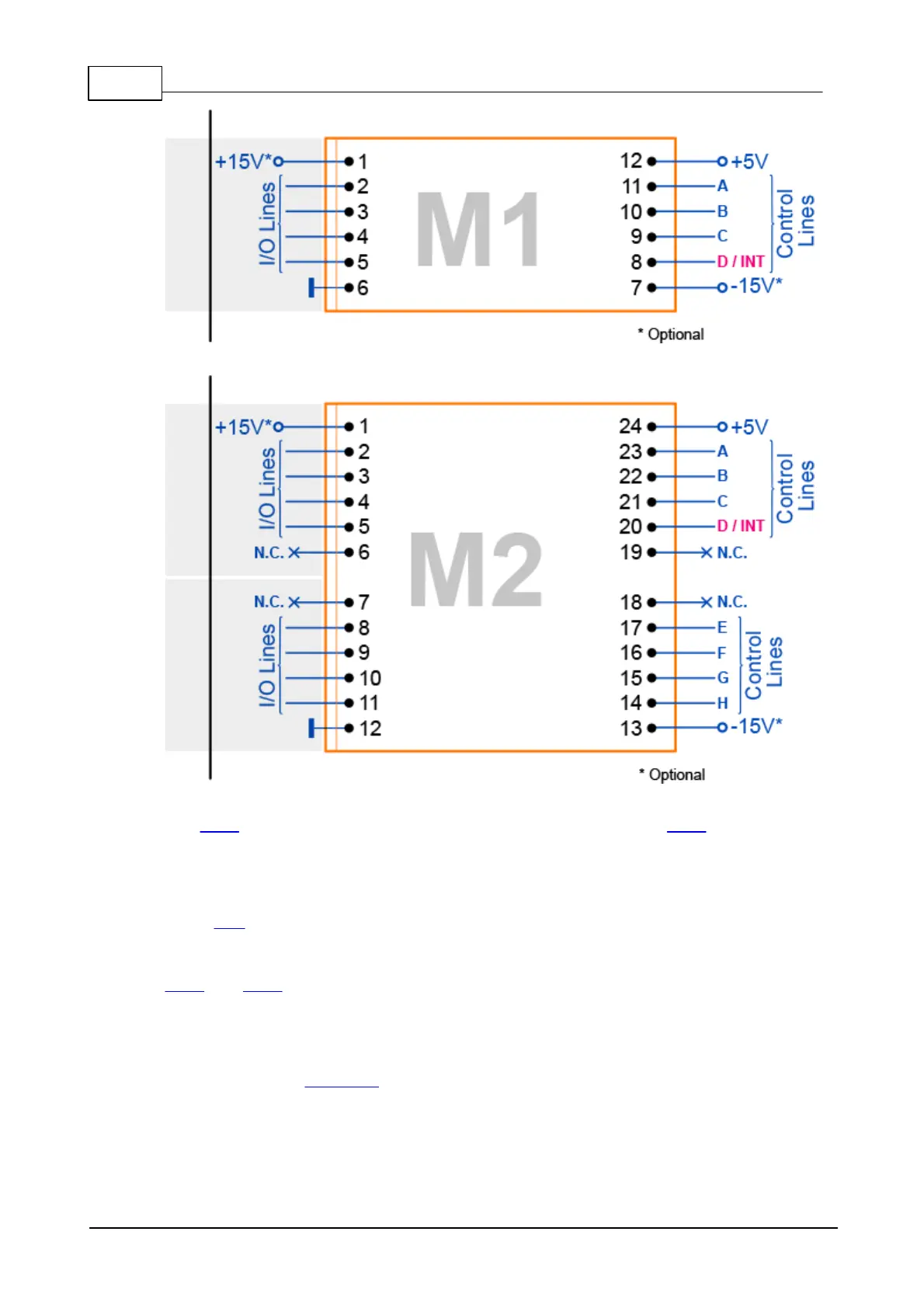

The TPP2 features six "M" sockets with interrupt lines, while the TPP3 has eight
such sockets.
7.2.5.3
[POE] Tibbits That Require PoE Power Lines
Tibbit #23 implement PoE (power-over-Ethernet) power supplies. By definition, PoE
power comes from the Ethernet cable. Therefore, PoE Tibbits must be wired in such
a way as to receive PoE power input from the RJ45 jack.
TPP2 and TPP3 both have a single socket which can receive PoE power.
7.2.5.4
[CAN] Tibbits That Require CAN functionality
Tibbits that require CAN functionality can only work in "CAN" sockets. At the
moment, only our Linux TPP boards support CAN Tibbits.
