Details

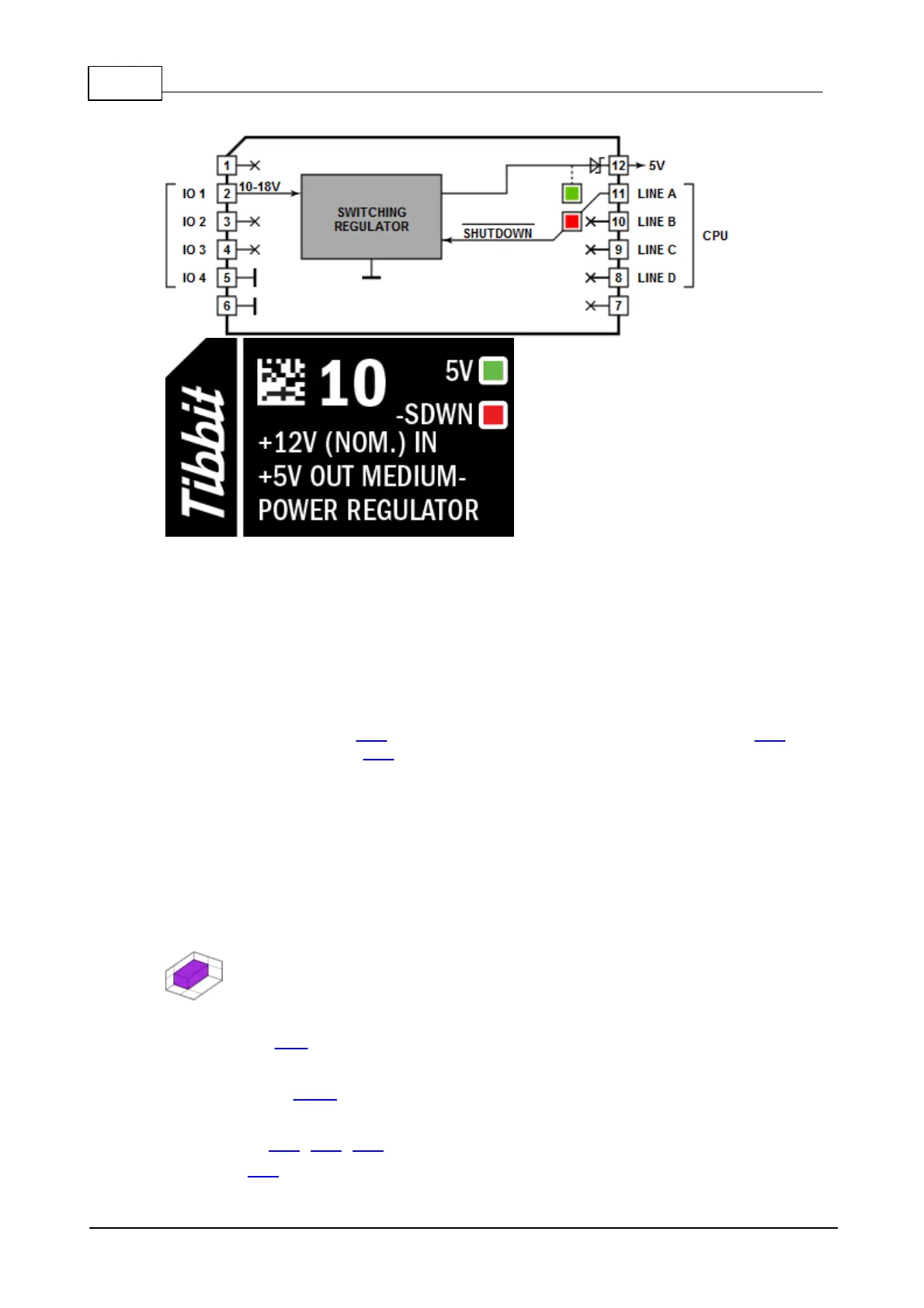

This Tibbit is capable of generating up to 1100mA of 5V power from the external
input in the 9-18V range. Multiple power supply Tibbits can be used to increase
available current or for power redundancy.
The module has a dedicated shutdown (-SDWN) line. Pull the line LOW to disable
this Tibbit.
Combine this Tibbit with #18 (it has a power jack and two terminal blocks), #20
(nine terminal blocks), or #21 (four terminal blocks).
LEDs
There is one green and one red LED. The green LED is connected to the +5V output
and lights up when the voltage is present on this line. Red LED is connected to the -
SHUTDOWN line and lights up when the line is LOW (i.e. when the power supply is in
shutdown). The red LED is buffered (with a logic gate).
7.2.9.22
#11, M1S: Four Open Collector Outputs
Function: Four open collector outputs
Form factor: M1S
Category: Output module
Special needs: [SER] (if reader emulation is desired)
Power requirements: 5V/50mA
Mates with: #19, #20, #21 (limited use)
See also: #16
