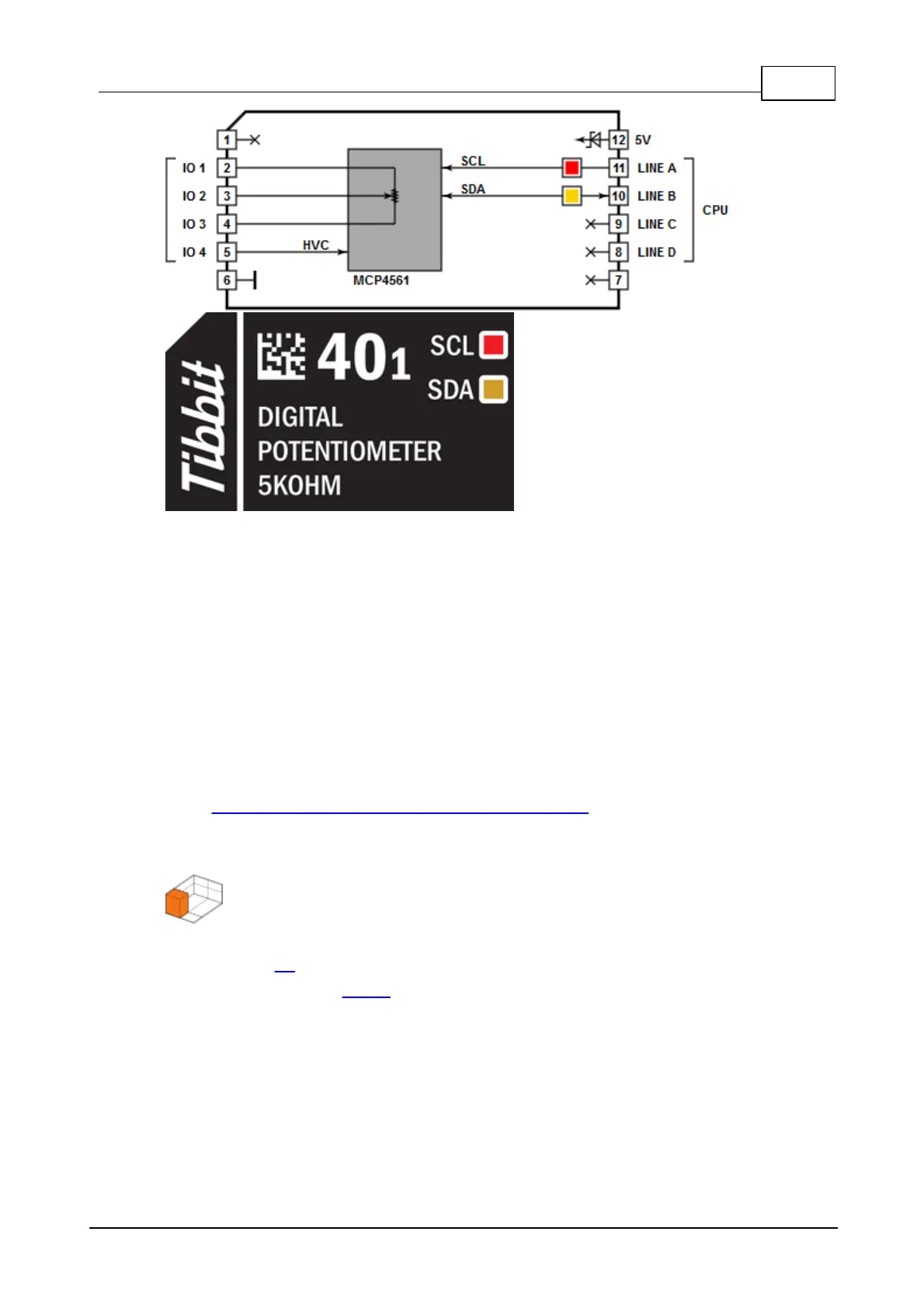

The Tibbit is based on the MCP4561 digital POT IC from Microchip. This IC has an 8-
bit resolution. Refer to Microchip datasheet for operation details.
LEDs
There is one red and one yellow LED. The red LED is connected to the SCL line of
the I2C interface, the yellow LED -- to the SDA line.
Sample project
The use of this Tibbit is illustrated by a Tibbo BASIC test project. Yo can find it
here: https://github.com/tibbotech/CA-Test-Tibbit-40.
7.2.9.48
#41, C1: 8-bit Port
Function: 8-bit port (supplied with 200mm cable)
Form factor: C1
Special needs: Tibbit #00-3
Power requirements: 5V/40mA
See also: ---
