Wiring the Probes to other hardware
Although the Cable Probes are primarily intended for use with TPS devices, they can
also be wired to other hardware. When connecting to third-party hardware devices,
remember to add a pull-up resistor (of about 2KOhm) to the SCL line of Probes
##1~3 (this is not necessary for wiring to TPS devices).
Testing Cable Probes
Perhaps the most convenient way of testing the Cable Probes ##01~0-3 is by using
a TPS2(G2) system running one of these testing apps:
·
Sensor-Tester-UI — Automatically identifies the connected Probe and displays
its readings on the LCD of a TPS2L(G2) device. You can find this app and its
description here: https://github.com/tibbotech/Sensor-Tester-UI.
·
Sensor-Tester-Web — offers the same functionality, but shows the readings on
a web page. You can find this app and its description here:
https://github.com/tibbotech/Sensor-Tester-Web.
We recommend testing the Cable Probe #04 using this application:
http://tibbo.com/programmable/applications/office_aircon_control.html.

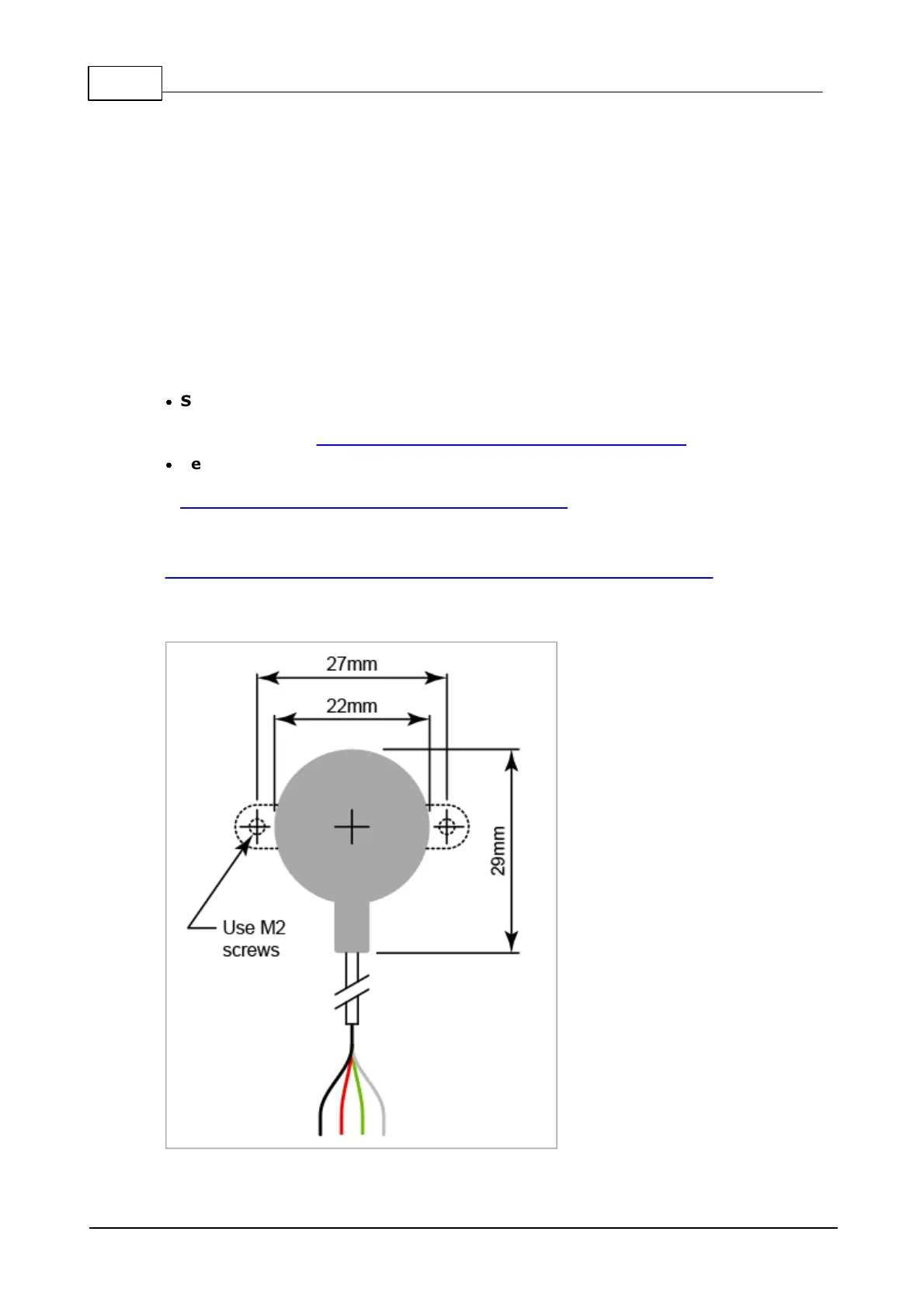

Outline Dimensions
