DS10x4 (Analog I/O)

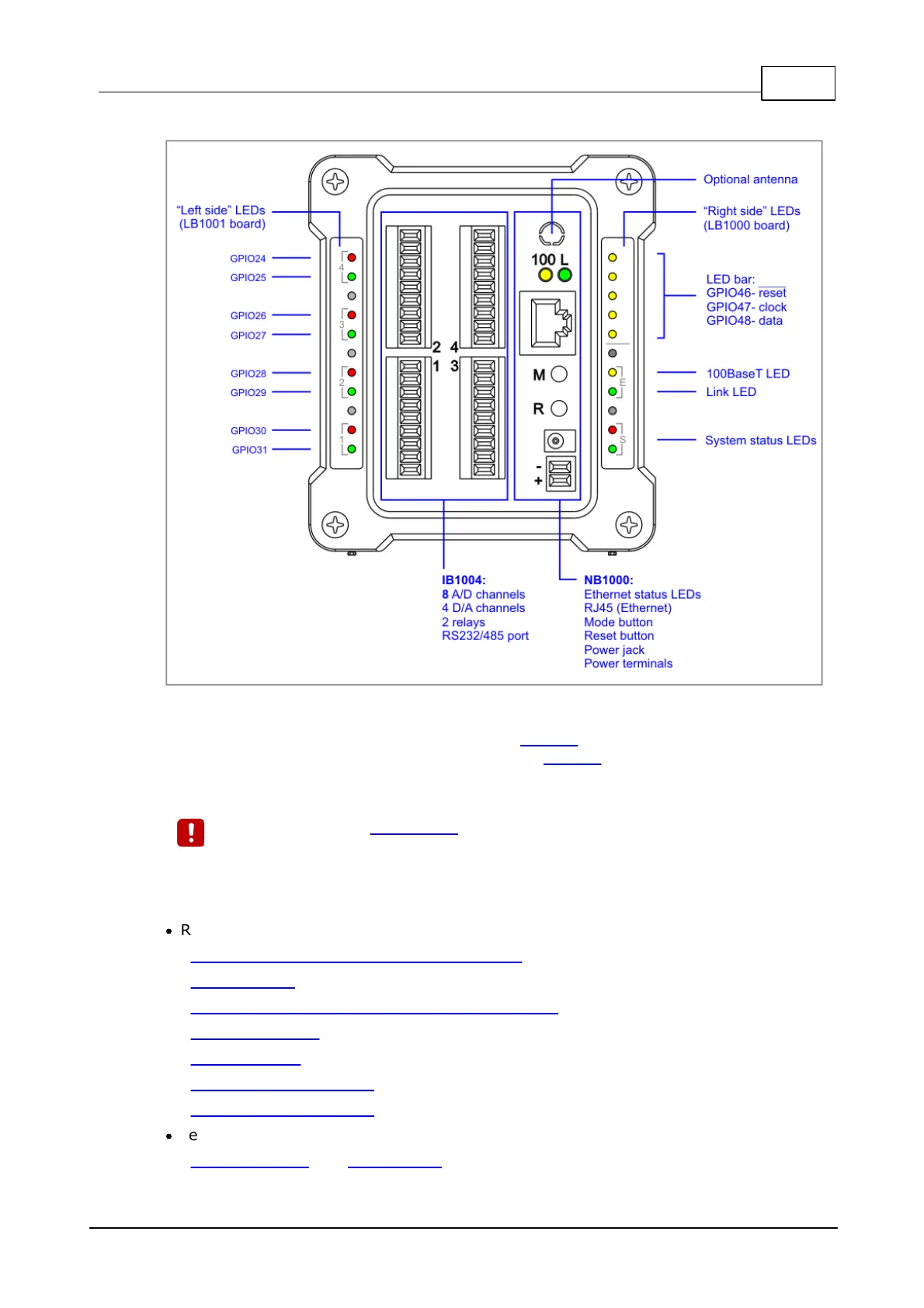

The DS10x4 BASIC-programmable controllers feature eight A/D inputs, four D/A
outputs with both voltage and current outputs, two low-power relays, and one
RS232/485 port. The DS1004 is based on the NB1000 network board (Ethernet
interface only), and the DS1014 is based on the NB1010 network board (Ethernet +
optional Wi-Fi + optional GPRS).
Read carefully the explanation about the type of antenna installed when
the DS1014 is ordered with Wi-Fi, GPRS, or Wi-Fi and GPRS options.
Follow these quick links to often needed information:
·
Right (network) side of the device:
- Power jack, terminals, and power regulator;
- Ethernet jack;
- Ethernet LEDs, M (mode) and R (reset) buttons;
- "Right side" LEDs;
- Buzzer control;
- Optional Wi-Fi interface (DS1014 devices only);
- Optional GPRS interface (DS1014 devices only).
·
Left (interface) side of the device:
- Terminal blocks and control lines;
