Tibbo DS1100 User Manual

236Development Systems
© Tibbo Technology Inc.

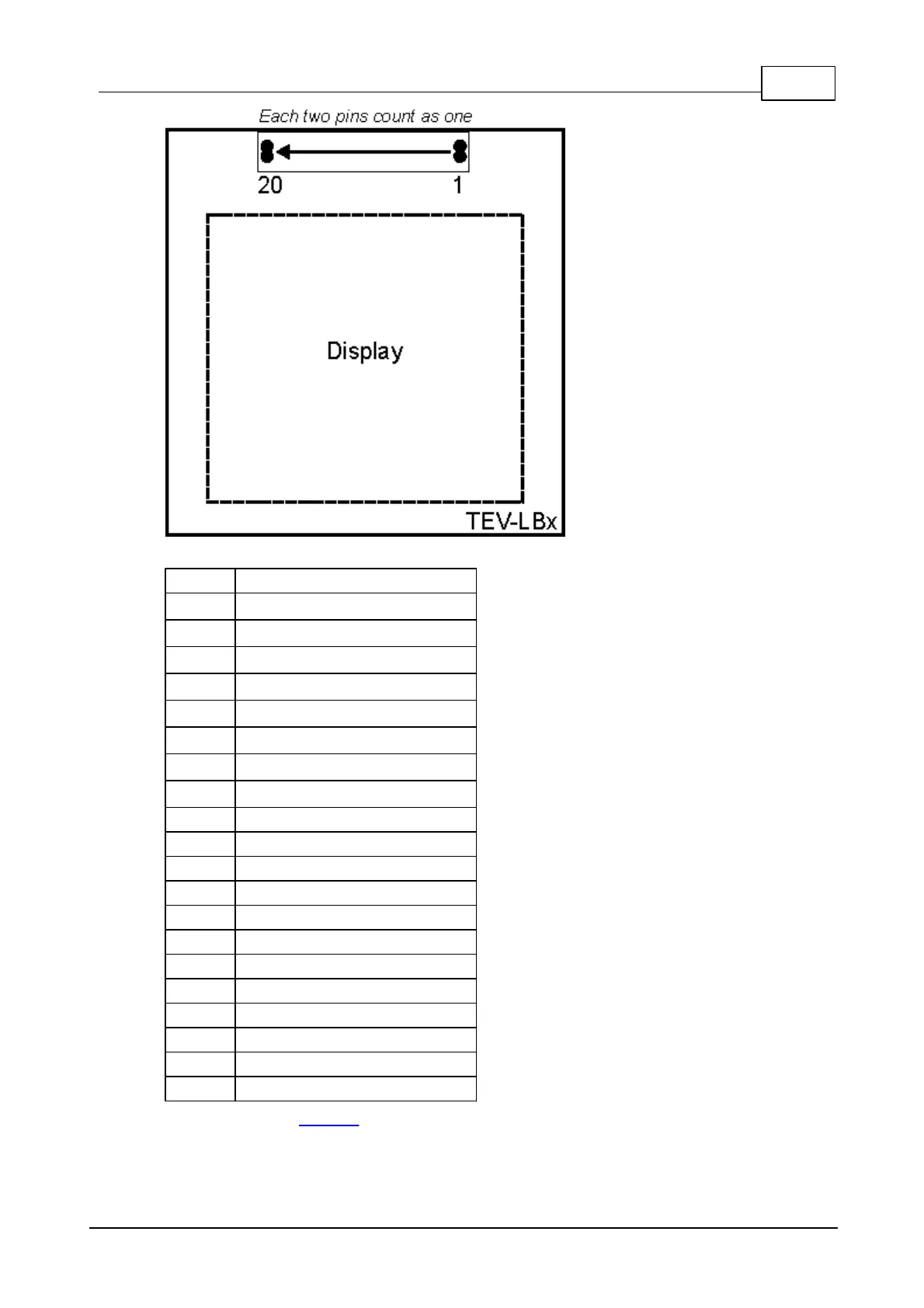

Pin #
Function
1
VIN (12V)
2
5V
3
3.3V
4
GND
5
GPIO48*
6
GPIO47*
7
GPIO46*
8
GPIO39/P4.7*
9
GPIO38/P4.6*
10
GPIO37/P4.5*
11
GPIO36/P4.4*
12
GPIO35/P4.3*
13
GPIO34/P4.2*
14
GPIO33/P4.1*
15
GPIO32/P4.0*
16
GPIO44*
17
GPIO43*
18
GPIO42*
19
GPIO41*
20
GPIO40*
* I/O pins of the EM1000 module
