Tiesse Imola LX 5200 User Manual

LED general meaning
USER GUIDE
18

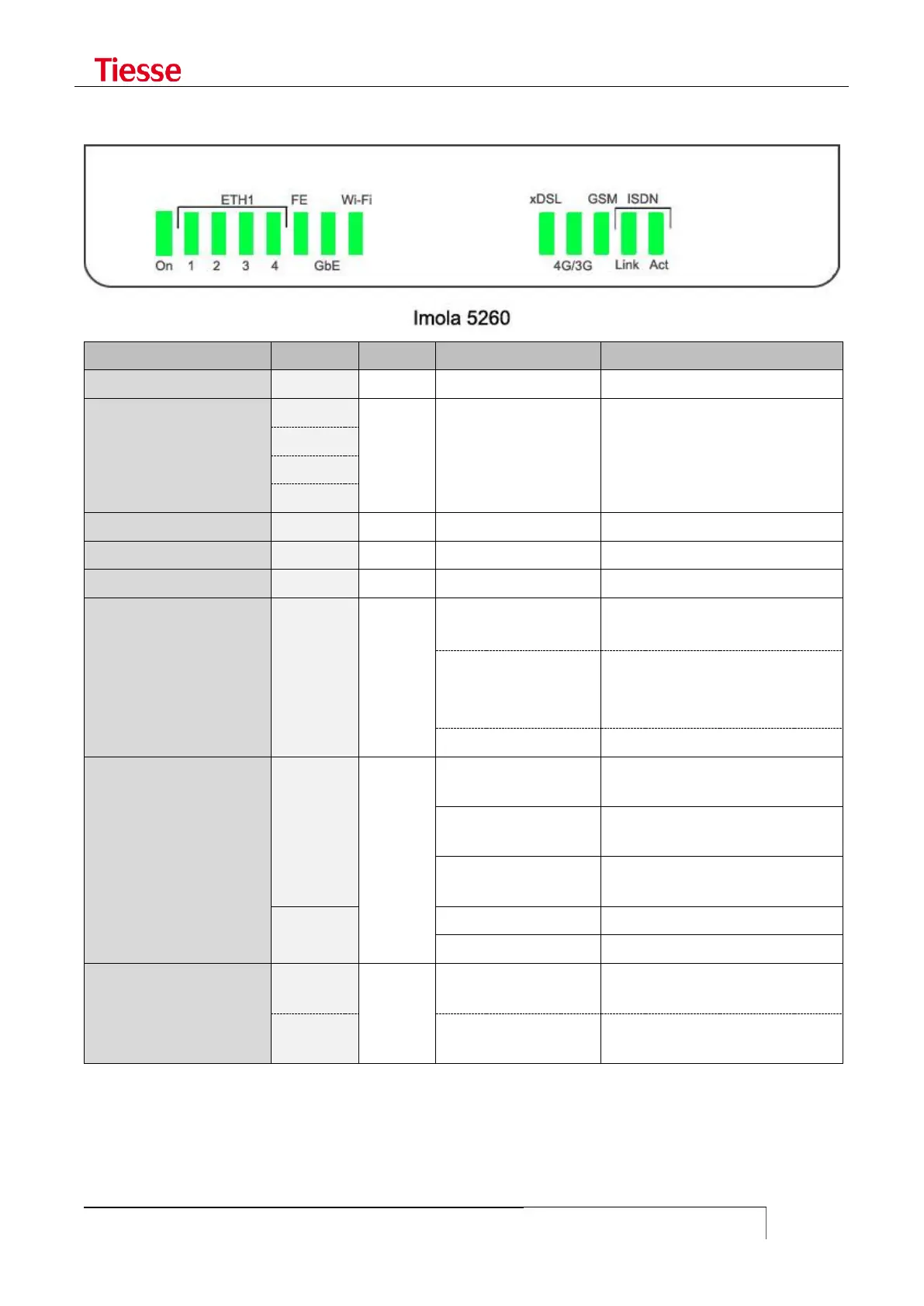

Imola 5260's LED
LED type
LED
COLOR
BEHAVIOUR
DESCRIPTION
Router On / Off
On
Green
Fixed on
Imola is on
Ethernet interface
Eth1 -1
Green
Fixed on
The connection is active
Eth1 -2
Eth1 -3
Eth1 -4
FE interface
FE
Green
Fixed on
The connection is active
GbE interface
GbE
Green
Fixed on
The connection is active
Wi-Fi interface
Wi-Fi
Green
Fixed on
The connection is active
xDSL interface
xDSL
Green
Slow Blinking
1sec. on / 1sec. off
Activating: the modem is waiting
for the connection
Fast Blinking
0.500 ms on
0.500 ms off
Handshaking
Fixed on
The connection is active
Mobile interface
4G/3G
Green
Fixed on
The port is configured via CLLI
and it is usable
Slow blink 1s on -
5s off
Not active or searching for the
connection
Fast blink 0.5s on /
0.5s off
The connection is active
GSM
Off
No connection
Fixed on
The connection is active
ISDN interface
Link
Green
Fixed on
Physical ISDN level is active
(ongoing call)
AcT
Fixed on
Shows that at least one ISDN
session is active.
