Tiesse Imola LX 5200 User Manual

VoIP models
USER GUIDE
42

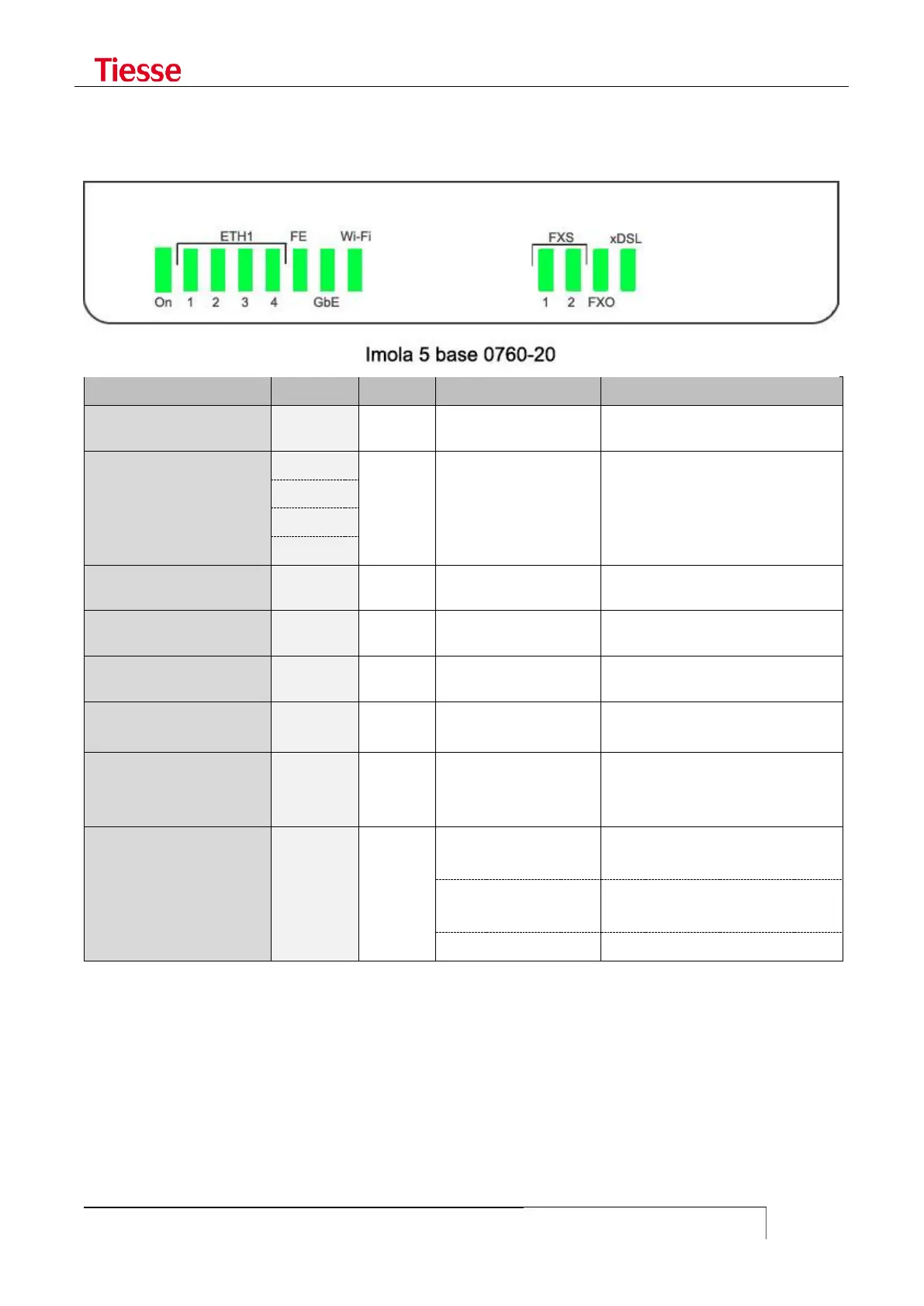

Imola 5 BASE 0760-20
LED type
LED
COLOR
BEHAVIOUR
DESCRIPTION
Router On / Off
On
Green
Fixed on
Imola is on
Ethernet interface
Eth1 -1
Green
Fixed on
The connection is active
Eth1 -2
Eth1 -3
Eth1 -4
FE interface
FE
Green
Fixed on
The connection is active
GbE interface
GbE
Green
Fixed on
The connection is active
Wi-Fi interface
Wi-Fi
Green
Fixed on
The connection is active
FXS interface
1,2,3,4
Green
Fixed on
The port has been configured via
CLI and is ready to be used
FXO interface
FXO
Green
0.8 Hz Blinking
0.625s on / 0.625s
off
The port is ready to be used
xDSL interface
xDSL
Green
Slow Blinking
1sec. on / 1sec. off
Activating
Fast Blinking
0.5s on / 0.5s off
Handshaking
Fixed on
The connection is active
