INTRODUCTION
IMOLA ROUTER SERIES
IMOLA is a range of network devices that offers typical Router functions in both wired and wireless
configurations (supporting ISDN/HDSL/ADSL/VDSL/G.SHDSL/GBE on fixed networks and
GPRS/EDGE, UMTS/HSDPA/HSUPA/LTE connections on mobile networks). Imola is designed in order
to connect local and remote sites in particular when security, service availability and network
performance are of prime importance.

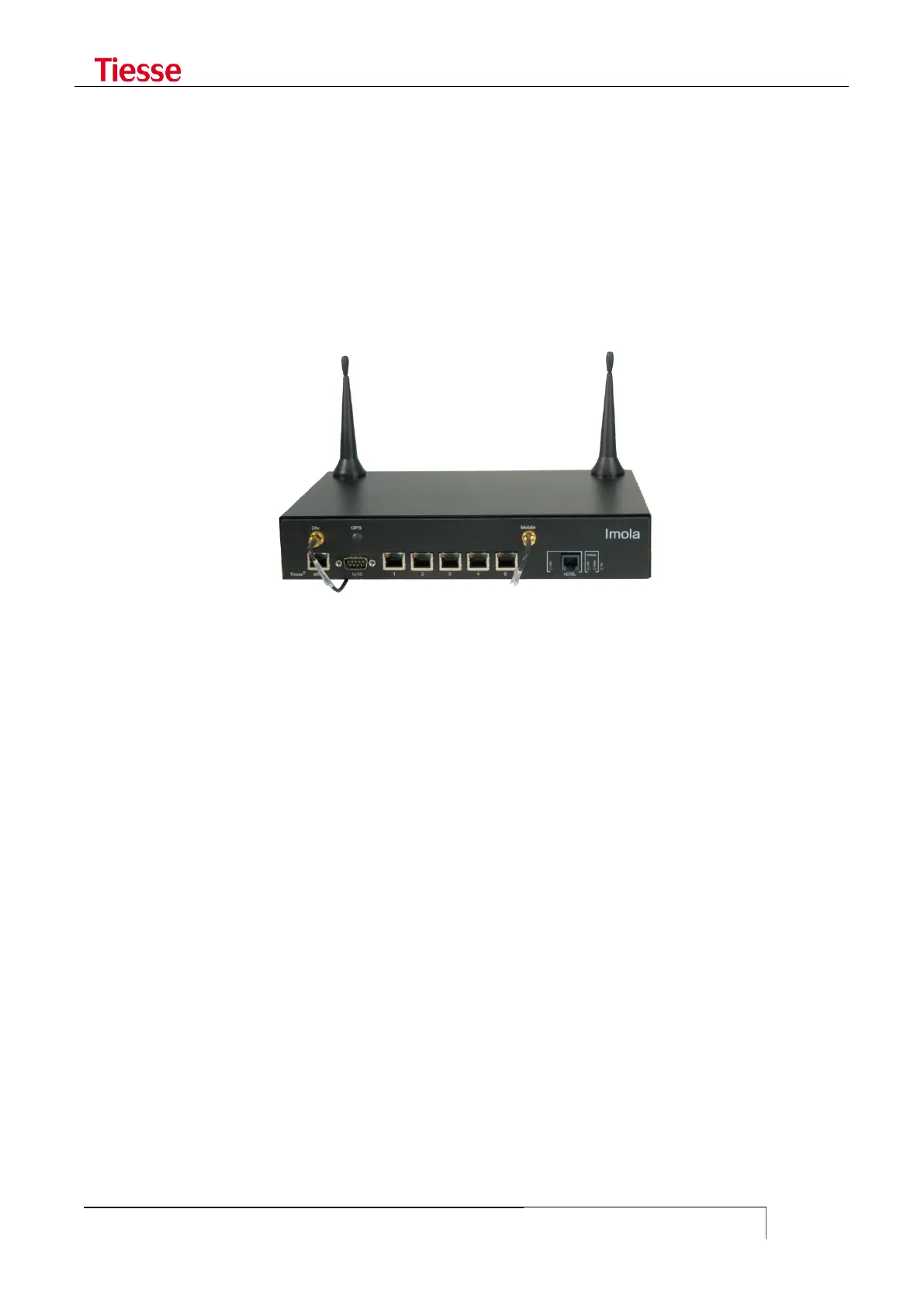

Figure 1: IMOLA Mod. 5262
IMOLA is based on 3 functional modules, not necessarily physically separate: a module containing
the main features; a module hosting protocol controllers and WAN interface; a power supply
module which may supply both an AC/DC converter (Internal Power Supply) and a DC/DC converter
(External Power Supply).
The main characteristics are:
Network Processor
64-256 MB RAM, depending on the model
512KB Boot Flash
16-256 MB Flash Memory for OS and applications, depending on the model
It also contains the following communication ports:
1 FE or GBR Ethernet (except for LX models, where there will be only one port FE). The GBE
port can optionally have a connector SFP
1 console port RS232 with DB9 male connector
1 ISDN S/T BRI with RJ 45 connector (only in some models)
1 integrated switch LAN up to 8 FE/GbE ports with VLAN 802.1q support (optional)
1 Wi-Fi port 802.11 b/g/n (optional)
1 ADSL/ADSL2+ with RJ11 connector (optional)
1 GSM/GPRS/EDGE/UMTS/HSDPA/HSUPA port (optional)
1 GSM/GPRS/EDGE/UMTS/HSDPA/HSUPA/LTE port (optional)
1 synchronous serial port with LFH 60 V.35 connector (optional)
