Tiesse Imola LX 5200 User Manual

LED general meaning
USER GUIDE
23

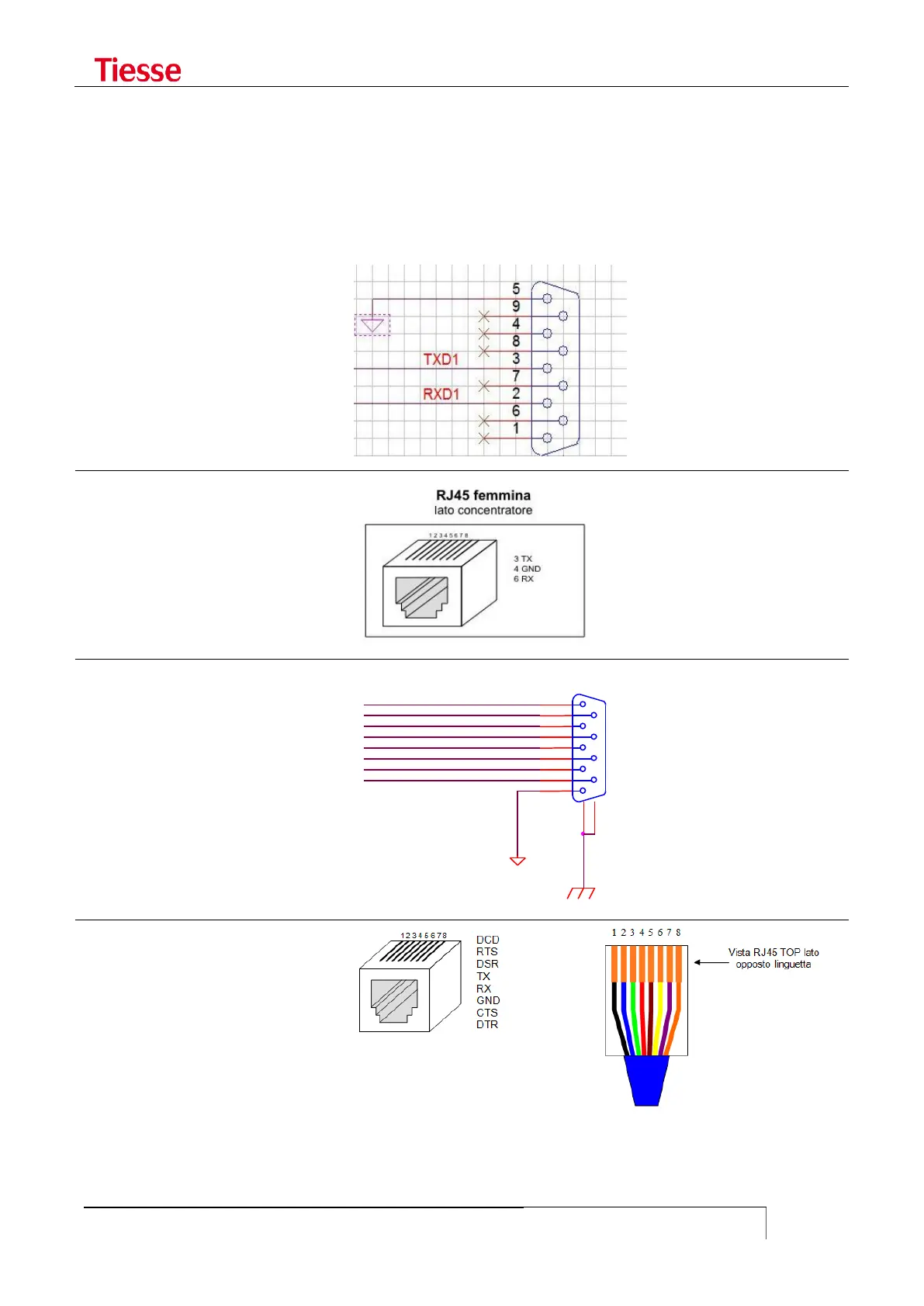

SERIAL CONNECTORS
To access the router you can use the console port, which can be different from model to model.
Below you find a scheme for the different kind of console port.
Imola / Lipari
DB9 male connector
Imola
RJ45 connector
Levanto 310/410
DB9 female connector
Levanto 441
RJ45 connector
COM_DSR
COM_RTS
COM_CTS
COM_RI
GND
5
9
4
8
3
7
2
6
1
10
11
P1
DB9F SH
COM_DCD
COM_RXD
COM_TXD
COM_DTR
