135
25. ROUTE SURVEYING
Deleting a JOB: "29.2 Deleting a JOB"
Memory initialization: ""33.13 Restoring Default Settings" PROCEDURE Restoring set items to initial
settings and turning power on"
• Curve data is not set when curve properties (parameter A1, parameter A2, radius R) are all set to "Null".
• The rounding up of error values in curve calculation may create discrepancies (mm) in coordinates of peg No.

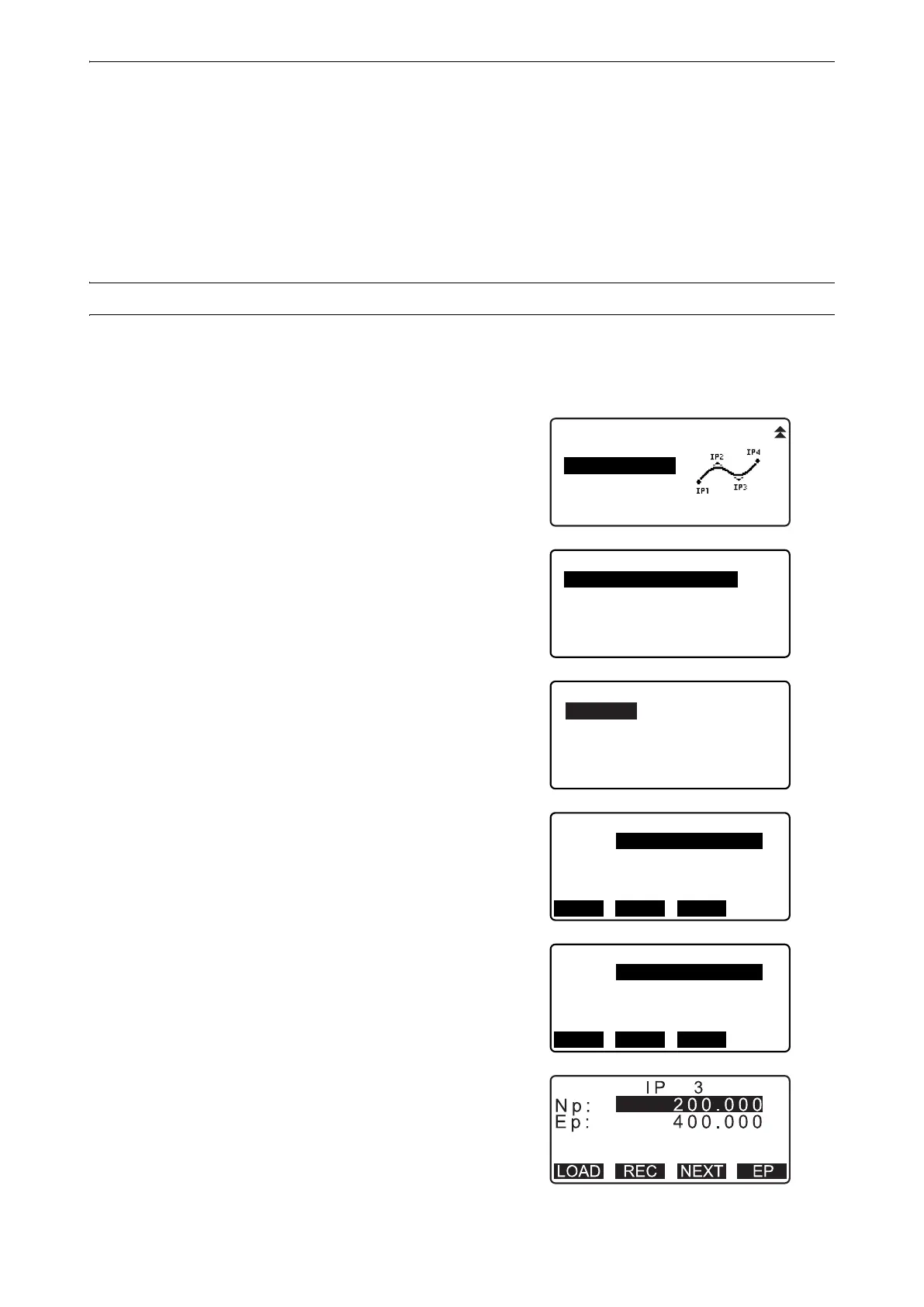

25.8.1 Inputting IPs (Intersection Points)
PROCEDURE
1. Enter the Route Calculation menu.
Press [MENU] on the third page of the OBS mode to enter
the Route Calculation menu.
2. Enter the Alignment Calculation menu.
Select "Alignment".
3. Enter the Curve Element Setting menu.
Select "Define elements".
4. Enter the IP Inputting menu.
Select "Input IP".
5. Set the base point (BP).
Input the coordinate for the BP, and press [NEXT].
6. Set the IP 1.
Input the coordinate for the IP 1, and press [NEXT].
7. Set the following IPs.
Input the following IPs in the same manner as step 6. To
define the input IP as the end point (EP), press [EP].
A l i g n m e n t
I P & Ta n
E D M
3 P t . C u r v e
D e f i n e e l e m e n t s
A l i g n m e n t
A u t o c a l c .
C a l c c o o r d
R o a d t o p o
S e t t i n g
Inp ut IP
Inp ut elem ent
Rev iew e lemen t
Clea r
Defin e eleme nts
N p :
E p :
B P
1 0 0 . 0 0 0
1 0 0 . 0 0 0
RECLOAD NEXT
N p :
E p :
I P 1
2 0 0 . 0 0 0
2 0 0 . 0 0 0
RECLOAD NEXT
To Next Page
