46
13. COORDINATE MEASUREMENT
• Humidity range (%): 0 to 100
• The "Humid. (Humidity)" is displayed only when the "Humid.inp" is set to "Yes".
• Above-described input ranges are the ranges when 1 mm is selected in "Dist.reso". When 0.1 mm is selected,
values can be input to the first decimal place.
PROCEDURE Reading in Registered Coordinate Data
Known point data, coordinate data and instrument station data in the current JOB and Coordinate Search JOB
can be read in.
Confirm that the correct JOB containing the coordinates you want to read in is already selected in Coordinate
Search JOB in Data Mode.
"29.1 Selecting a JOB", "30.1 Registering/Deleting Known Point Data"

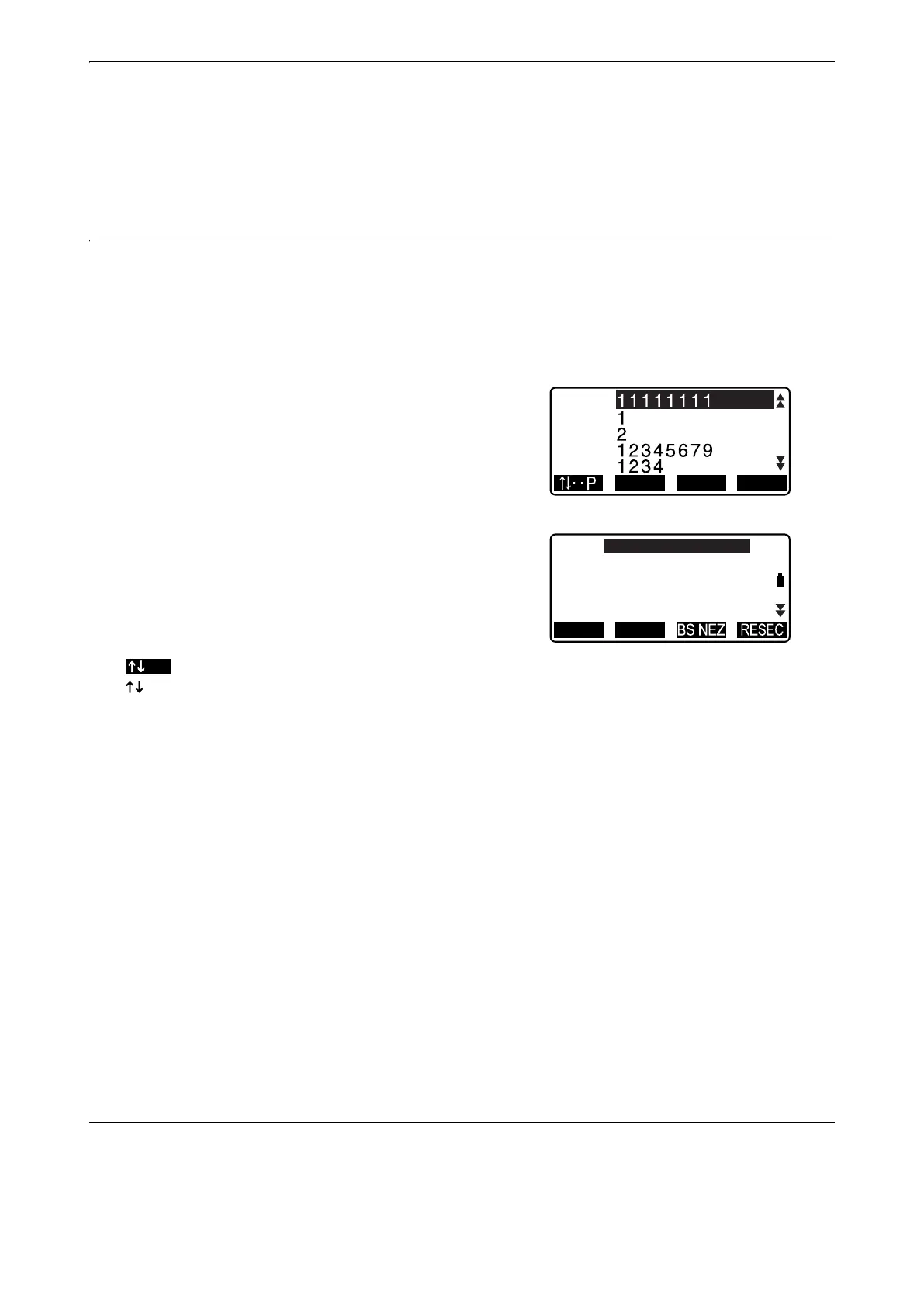

1. Press [LOAD] when setting Instrument Station.
The list of registered coordinates is displayed.
PT :Known point data saved in the current JOB or in
the Coordinate Search JOB.
Crd./ Occ :Coordinate data saved in the current JOB or in
the Coordinate Search JOB.
2. Align the cursor with the required point name and press
{ENT}.
The point name that was read and its coordinates are
displayed.
• [ ] = Use {}/{} to move from page to page.
• [ ...P] = Use {}/{} to select individual point.
• Press [FIRST] to move to the first point name on the first
page.
• Press [LAST] to move to the last point name on the last
page.
• Press [SRCH] to move to the “Coordinate Data Search
Screen.”
" 13.1.1 Setting Azimuth Angle from Backsight
Coordinates"
• You can edit the coordinate data that was read in. Editing
does not affect the original coordinate data. After editing,
the point name is no longer displayed.
• The point name that was read in is displayed until the current JOB is changed.
• When [SRCH] is pressed, GM searches data in the current JOB first, then in the Coordinate Search JOB.
• If more than two points with the same point name exist in the current JOB, GM finds the newer data only.
PROCEDURE Coordinate Data Search (Complete match)
1. Press [Search] on the registered coordinate data list
screen.
!!0!.!0!0!0
LAST SRCHFIRST
PT
PT
Crd.
Occ
Occ
N0:
E0:
Z0:
PT
HI 1.200m
AUTO100000
0.000
0.000
<Null>
BS AZLOAD
...P
