48
13. COORDINATE MEASUREMENT

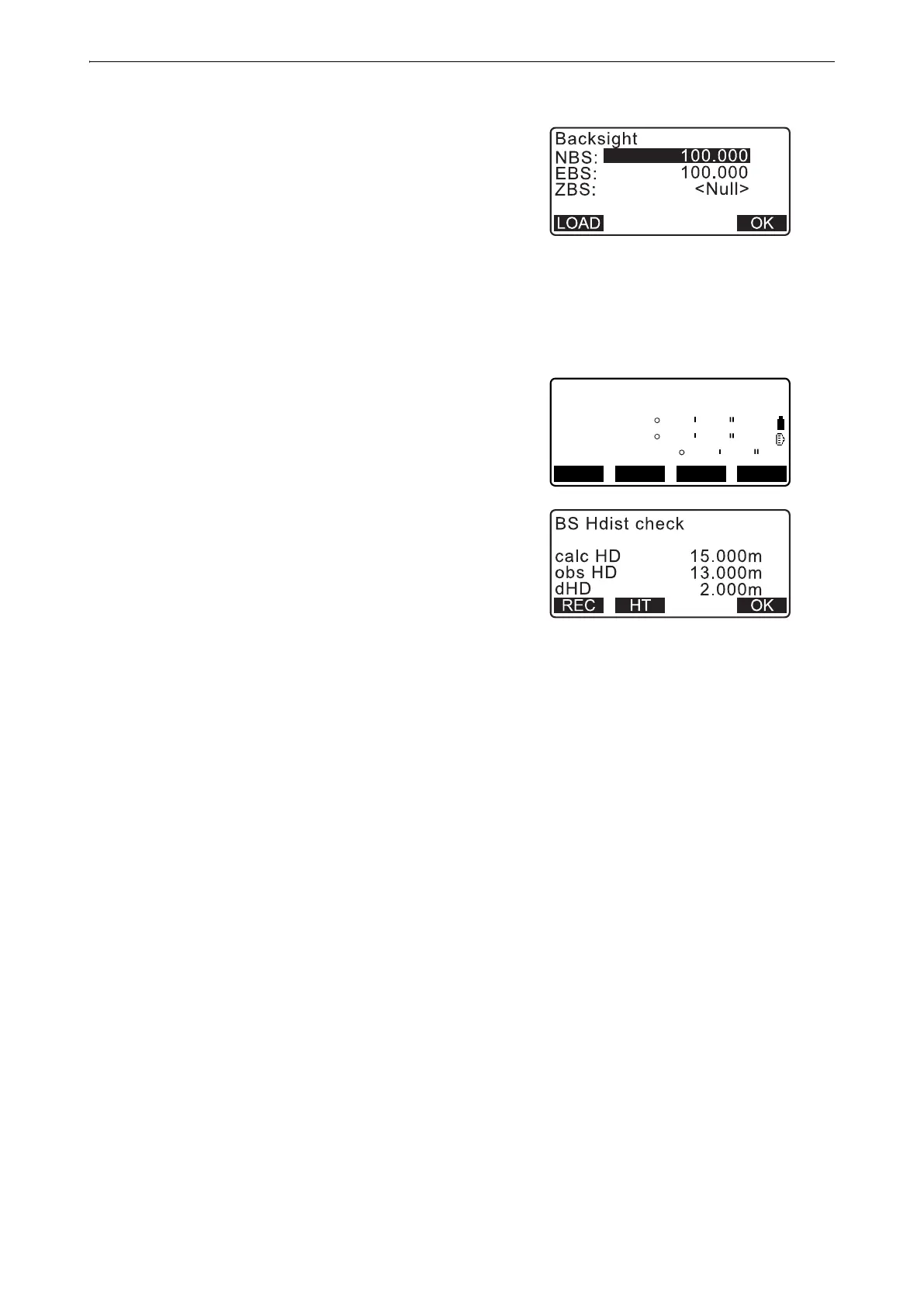

2. Press [BS NEZ] after entering the instrument station data to
enter a backsight point coordinate.
• When you wish to read in the registered coordinate data,
press [LOAD].
""13.1 Entering Instrument Station Data and Azimuth
Angle" PROCEDURE Reading in Registered
Coordinate Data"
3. Input the backsight station coordinates and press [OK].
4. The backsight angle is displayed in "Azmth". Press [YES],
set an azimuth angle and return to <Coord>.
• Pressing [NO] returns to the step 2 screen.
• Pressing [MEAS] after collimating the backsight point
initiates measurement. When measuring is completed, the
backsight distance check screen is displayed. The
difference between the calculated value and the measured
height distance value is displayed.
After confirming, press [OK].
• Press [HT] to set instrument and target height.
• Press [REC] to store check data in the current JOB
• Press [REC] to record the following data.
Instrument station data, backsight station data, known point
data, and angle measurement data (distance measurement
data when [MEAS] is pressed)
• When storing the azimuth angle in the current JOB, press
[REC].
"28.2 Recording Backsight Point",
Backsight
Take BS
Azmth
ZA
HA-R
89
117
59
32
55
20
45 00 00
MEASREC NO YES
