Topcon HiPer VR User Manual

Option Authorization Files
5-8
P/N: 1023998-01
Configuration

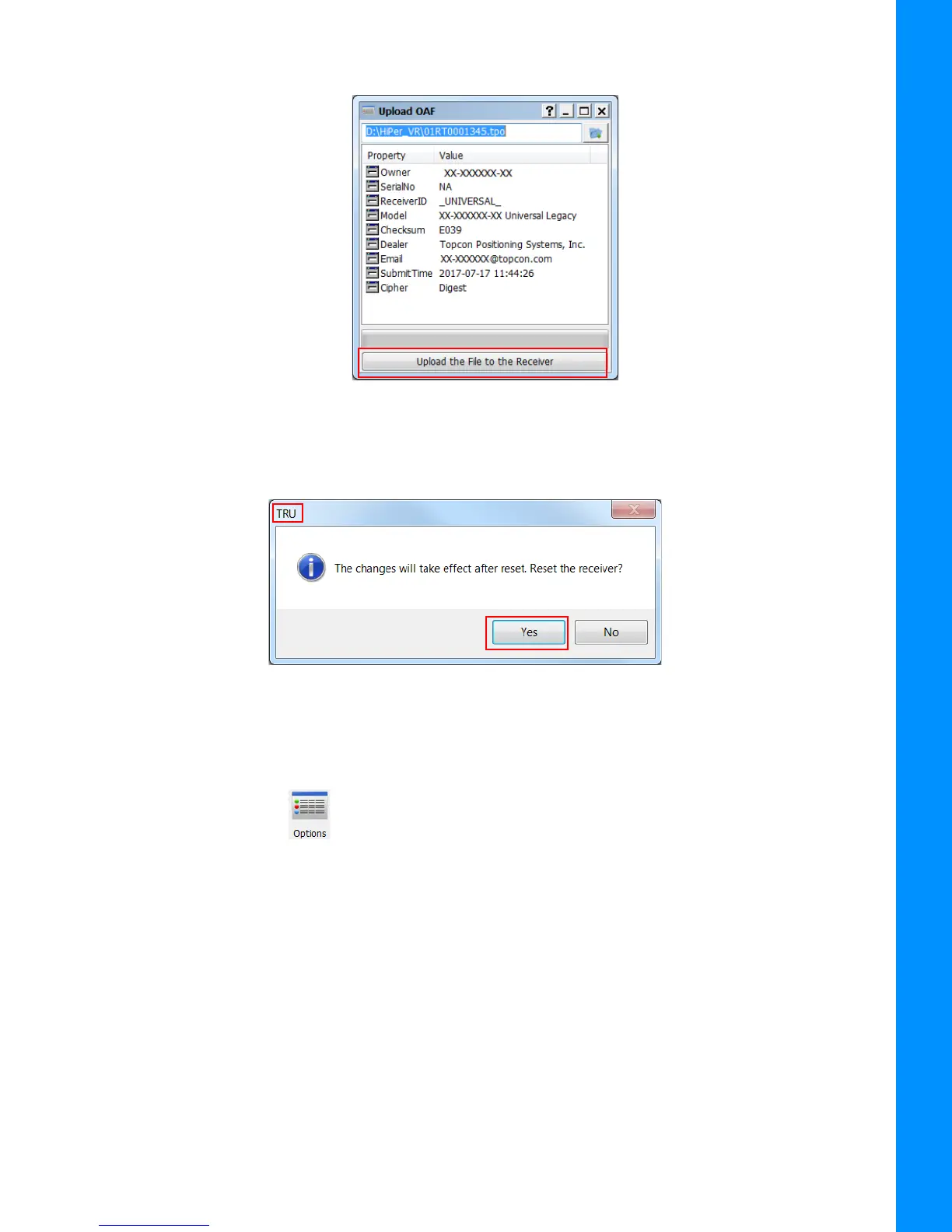

5. Click Upload the File to the Receiver to start loading the file (Figure 5-8).
Figure 5-8: Upload OAF to the Receiver
6. Click Yes at the prompt to reset the receiver (Figure 5-9). The Connection Parameters screen
appears.
Figure 5-9: Reset Receiver
7. Click Connect in the Connection Parameters screen. The TRU main screen appears.
8. Click the Options icon. The Receiver Options screen appears.
9. Check the following conditions:
• If you uploaded a universal OAF, make sure the expiration date is still valid.
• If you uploaded a customer OAF, make sure the correct customer file is loaded.

Topcon HiPer VR Specifications

General

Battery Life	Up to 10 hours
Ingress Protection	IP67
Internal Memory	8 GB
Signal Tracking	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Static Accuracy Horizontal	3 mm + 0.1 ppm
Static Accuracy Vertical	5 mm + 0.5 ppm
Communication	Bluetooth, Wi-Fi
Operating Temperature	-40°C to +65°C
Update Rate	20 Hz
