7 CHECK AND ADJUSTMENT
• H direction confirmation (Do not move V direction).
6

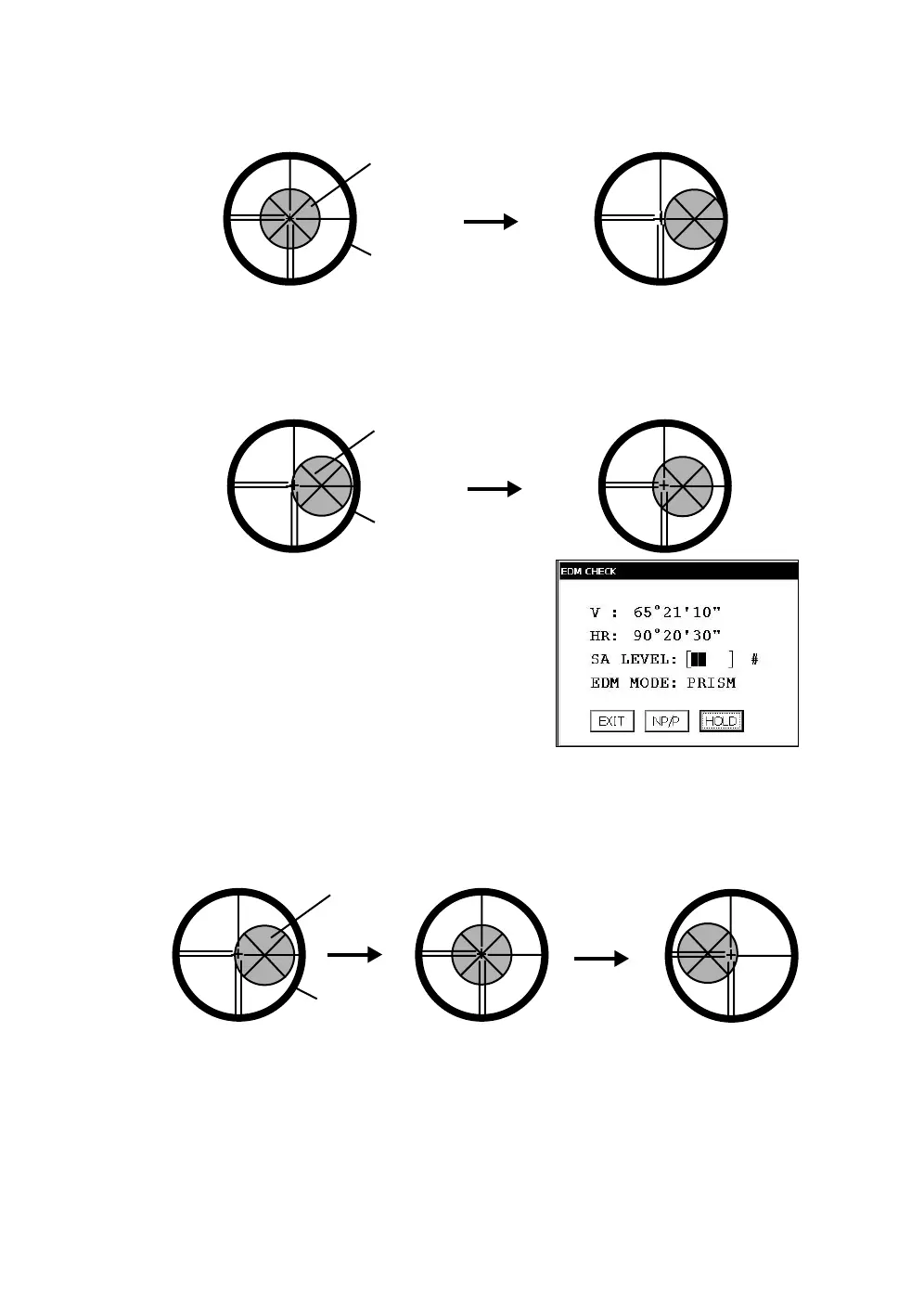

Tu rn the horizon jog counter clockwise, move the collimating point to the left side of prism gradually until
buzzer sound stops.
7
Tu rn the horizontal jog clockwise slowly, and move the collimating point to the prism center gradually
until at the position buzzer starts.
Confirm the level of the signal (light quantity level) in display to adjust at the level of one to two as shown
in below by turning the horizontal jog.
8
Note the horizontal angle displayed.
9
Tu rn the horizon jog clockwise, move the collimating point to the right side of prism gradually until buzzer
sound stops.
10
Move the collimating point to the center of prism gradually until buzzer sound starts.
Tu r ning the horizontal jog to be one to two level of SIG value to adjust the collimating point same as step
7 procedure.
11
Note horizontal angle same as step 8 procedure.
Reticle
Prism
Prism
Reticle
Quantity level two
Reticle
Prism
