5 PROGRAM MODE

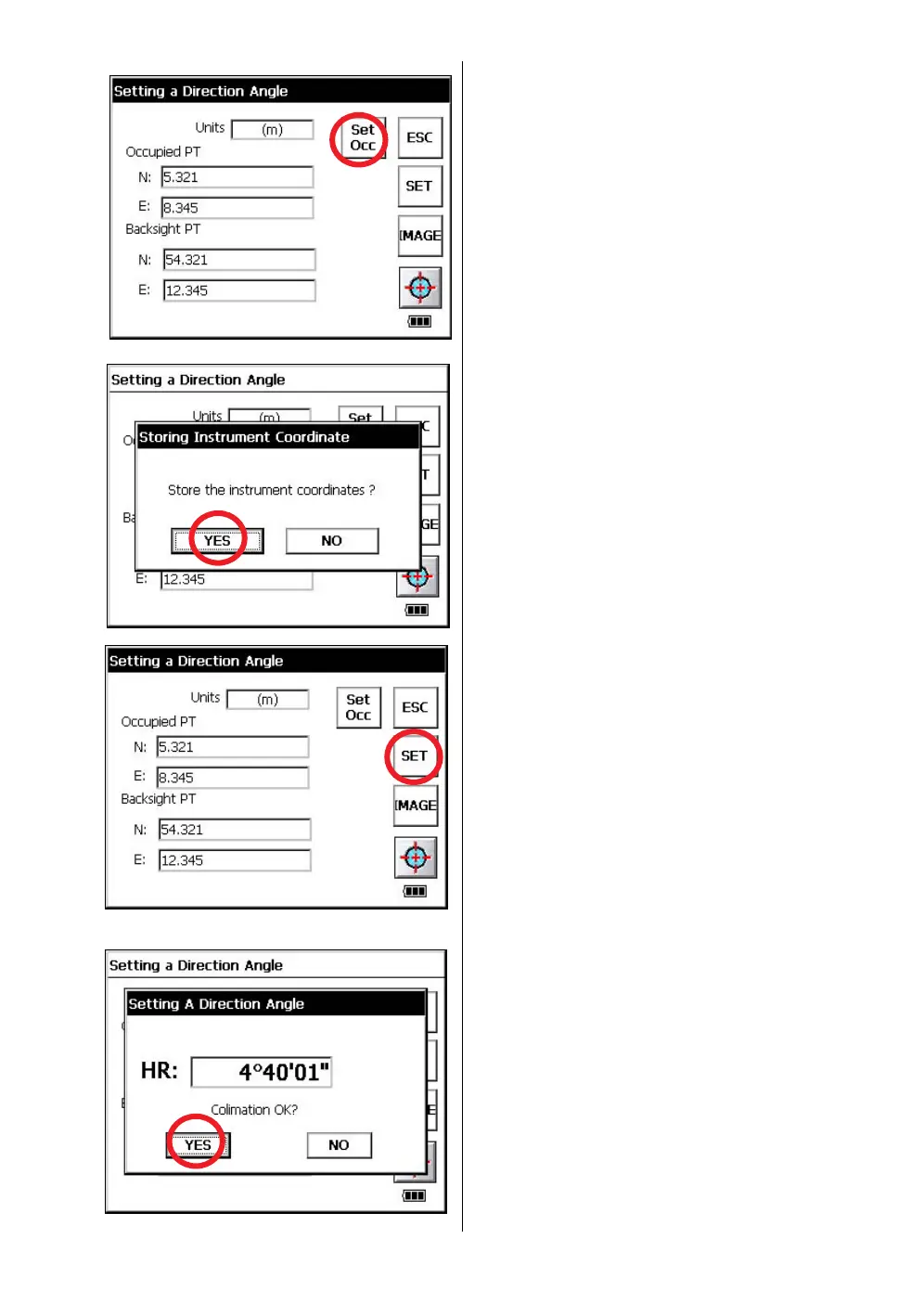

Input N and E coordinate of occupied point C.

Example : N coordinate; 5.321m

: E coordinate; 8.345m

Input N and E coordinate of backsight point A.

Example : N coordinate; 54.321m

: E coordinate; 12.345m

To memorize the occupied point, press the

[SET OCC] key.

Press the [YES] key.

Press the [SET] key.

Collimate the backsight.

Press the [YES] key.

The display returns to Program mode menu.

Default Chapter3
- Foreword3
