E6582062
3-19 3. [Basic operation] Operation panel and screen display
3
9
10

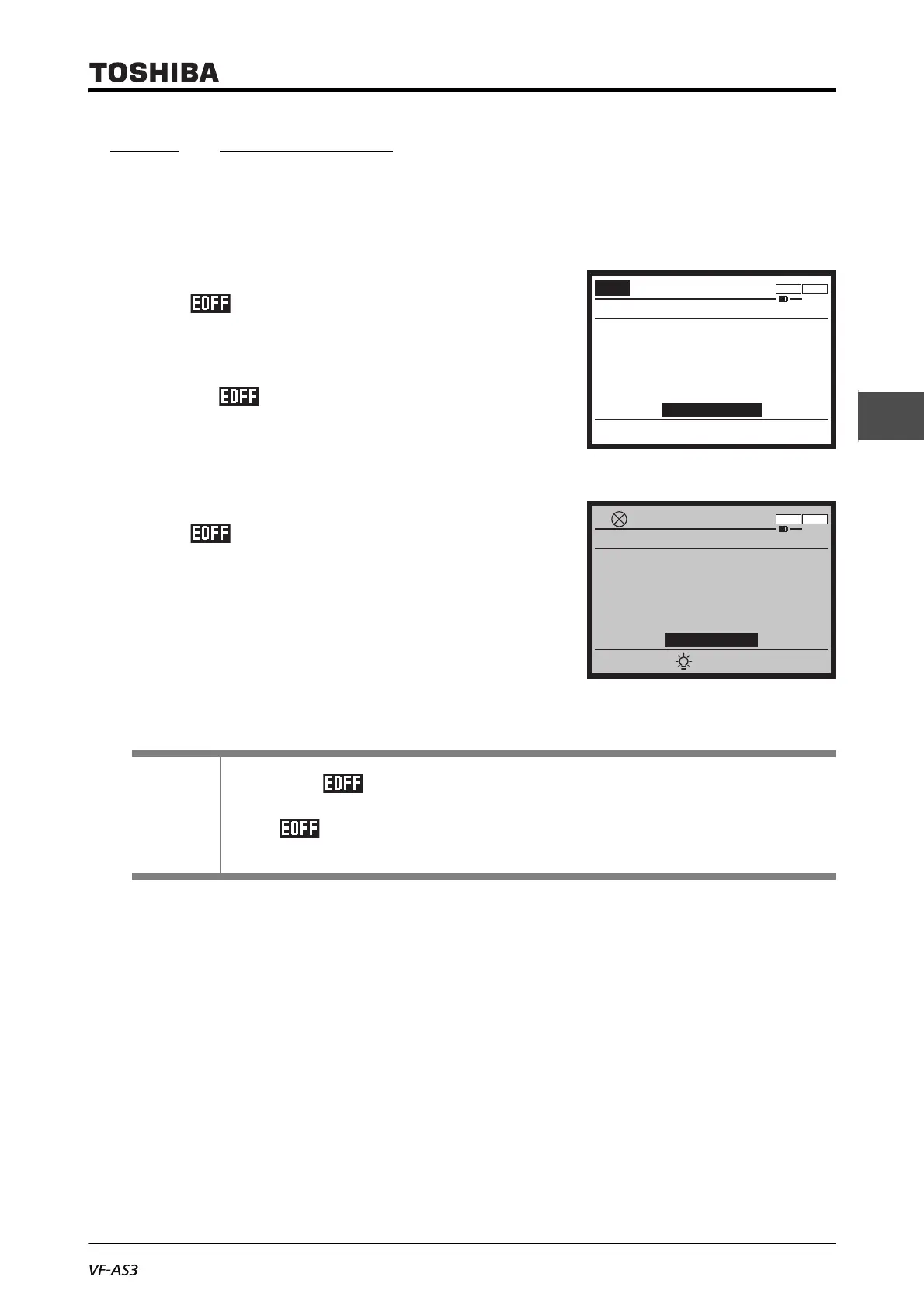

3. 2. 3 Emergency off
To apply emergency off from the operation panel except when the inverter is operated by the operation
panel, follow the procedure below.
For how to apply emergency off by other than the operation panel (digital input, etc.), refer to [6. 30. 4].
1 Press the [STOP/RESET] key.
blinks at the left end of the status area.
In [Standard mode], "Emergency off? (STOP) key"
is displayed on the lower side in the main areas.
In the cases of "Setting mode" and "Monitor mode,"
just blinks.
2 If you press the [STOP/RESET] key again while
is blinking, the inverter comes to emergency
off.
• The backlight turns red, and "E" blinks.
• "Trip" is displayed in the second position from the
left of the status area.
• "Emergency off" is displayed in the main area.
Memo
• The blinking returns to the original display status after few seconds if no operation is
performed.. The inverter comes to emergency off only if you press the [STOP/RESET] key
while is blinking.
• If you want to return only the backlight from red to white, press the [F2] key.
Standard Mode
Screen Copy Setting Monitor
Hz
20.0HzSTOP
0.0
17:19
Emergency off?
EOFF
F R
Setting
20.0HzTrip
17:19
Standard Mode
E
Emergency off
Monitor
Screen
F R
