E6582062
5. [Fundamental operation] How to use parameters 5-22
4
5
9

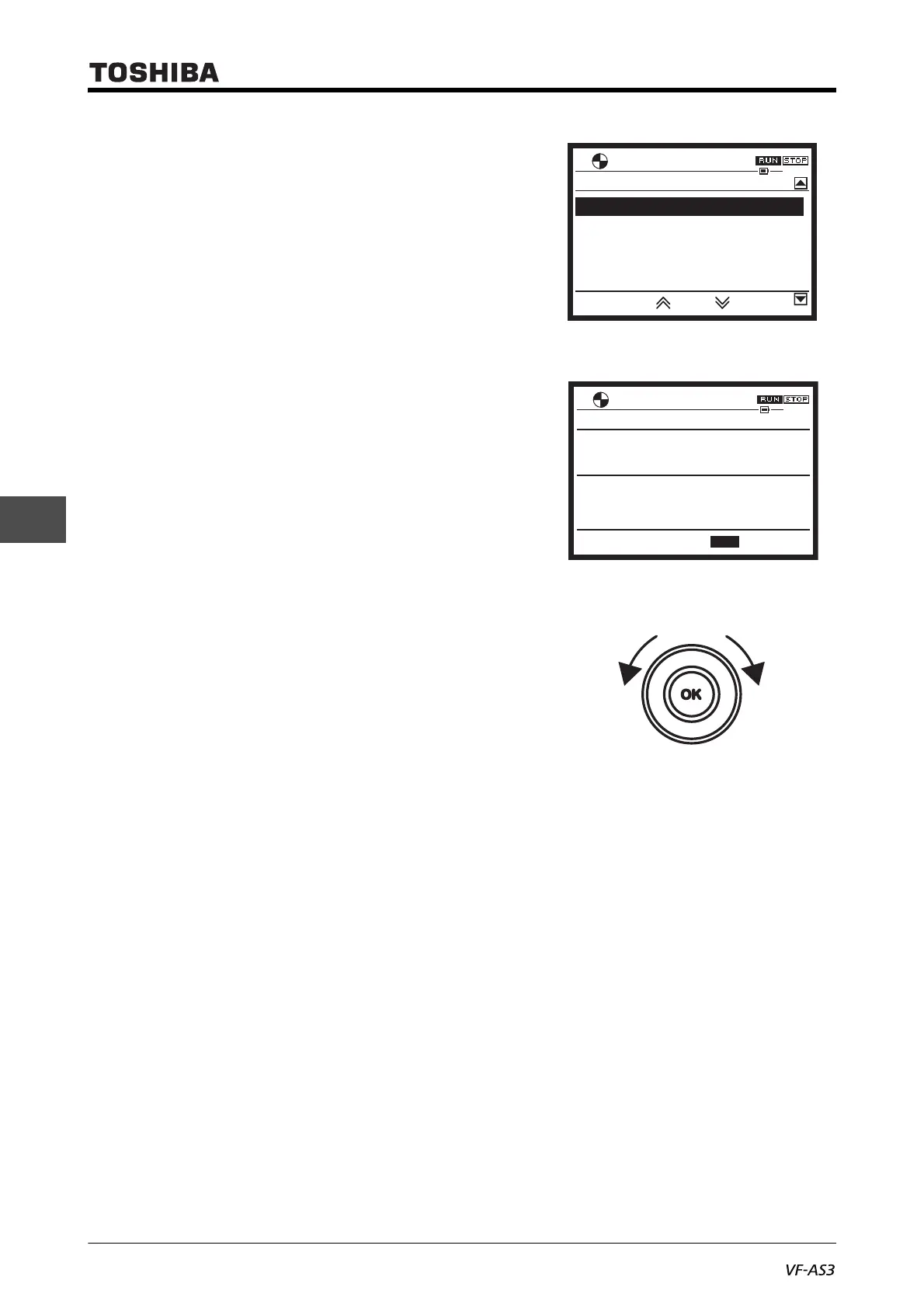

2 In the basic parameters of [Setting mode], set
<FMSL: Terminal FM function> to "0: Output
frequency".
The default setting of <FMSL> is "0".
3 In the basic parameters of [Setting mode], select
<FM: Terminal FM adjustment> and press the [OK]
key.
The output frequency of the inverter is displayed in
the upper part of the screen, and the output level
(%) of the terminal [FM] in the lower part.
4 Turning the touch wheel will change the indication
of the meter and the output level (%) of the terminal
[FM] in the lower field of the screen. Adjust the
scale so that the indication of the meter matches
the output frequency.
5 Press the [OK] key to complete the adjustment of the meter.
■ How to adjust the scale of the meter with the inverter stopped
You can adjust the scale of the meter even at the inverter stop state.
When <FMSL: Terminal FM adjustment> and <F670: Terminal AM adjustment> are set "22", signal
value is fixed at the following values.
<FMSL>/<F670>
• 0, 1, 5, 6, 7, 10, 13, 62, 63, 79, 130, 131, 132, 133, 134, 135, 150, 151, 152, 153, 154, 159
: Maximum frequency (FH)
• 2, 11, 12, 108 : 200% of rated current
• 3, 4 : 150% of rated voltage
• 8, 9, 64, 65, 155, 156 : 250% of rated torque
• 14,15,16 : Maximum value of OL factor (100%)
• 34 : Maximum value of OL2 factor (600%)
• 35 : Maximum value of OL1 factor (250%)
• 17 : %ED value of braking resistor
60.0Hz
15:12
Basic parameters
FMSL
: Terminal FM function
FMSL
: Region setting check
PSEL
: Parameter mode select
0
1
0
typ
: Default setting
0
FM
: Terminal FM adjustment
100.0%
RUN
15:11
Min: 0.1 Max: 250.0
X1000 X100 X1X10
Output frequency
100.0%
FM :Terminal FM adjustment
60.0Hz
RUN
60.0Hz
