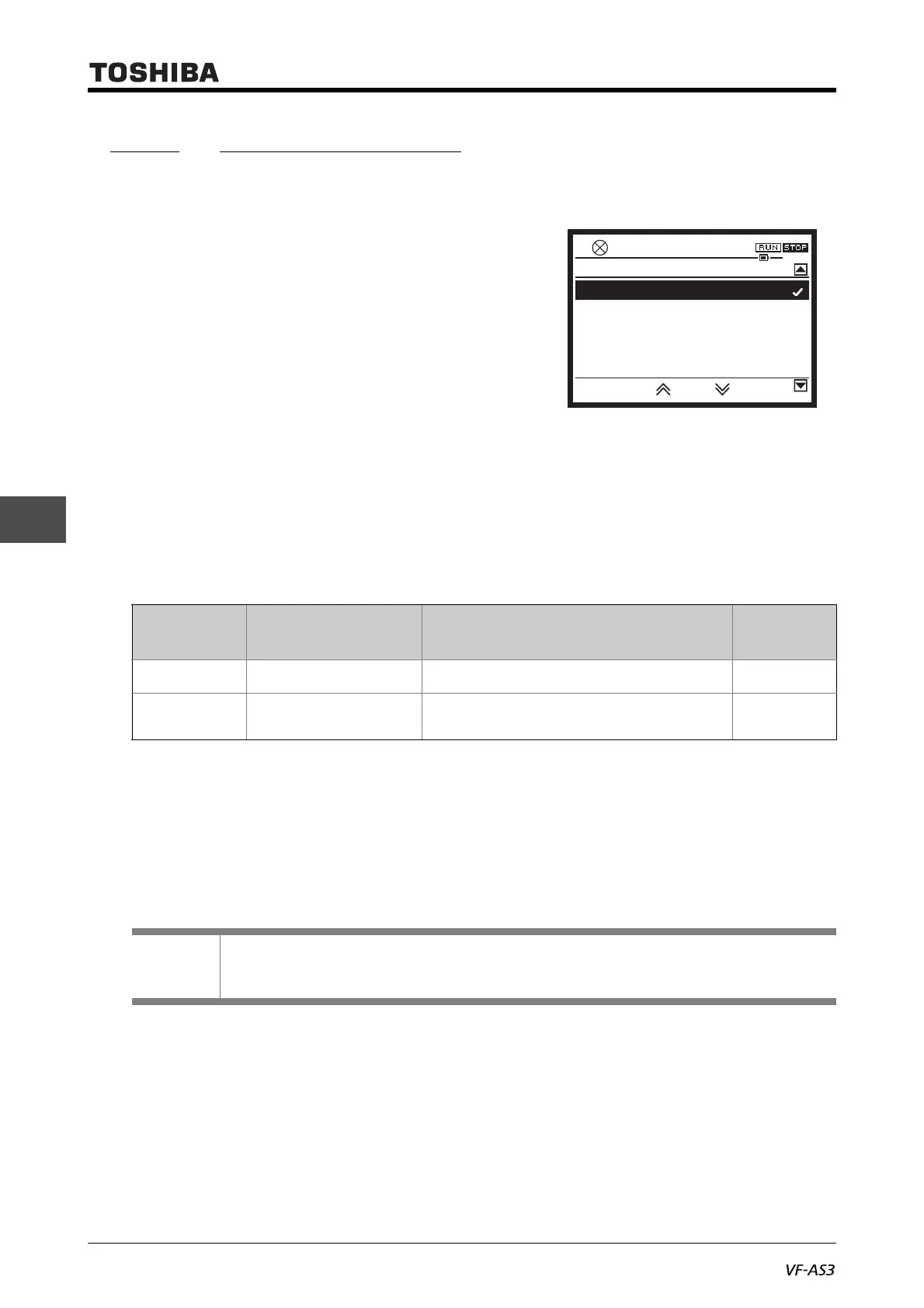

5. 4. 3 Customizing display
(1) Selecting contents displayed in [Standard mode]
<F710: Standard mode display>
<F720: Standard mode display of extension
panel>
■ Function
The display contents in [Standard mode] can be changed. Different contents can be displayed on
the operation panel of the inverter unit and the extension panel (optional).
Select the display contents in [Standard mode] when the power is turned on. In the default setting,
the output frequency is displayed.
■ Parameter setting
■ Reference of setting
With <F710: Standard mode display>, set the contents to be displayed in [Standard mode] on the
operation panel when the power is turned on. Set the extension panel with <F720: Standard mode
display of extension panel>.
In either case, "0: Output frequency" in the default setting.
Title Parameter name Adjustment range
Default
setting
F710 Standard mode display
0 - 162
*1
*1 For details, refer to the table at the end of this subsection.
0
F720 Standard mode display of
extension panel
0 - 162
*1
0
Memo
• Different contents can be displayed on the operation panel of the inverter unit and the extension
panel (optional).
0.0HzSTOP
15:36
F710 : Standard mode display
0:
Output frequency
1: frequency reference
2:
Output current
3:
DC Bus voltage
4:
Output voltage
