6. [Advanced] How to use parameters 6-2
4
4
6
9
■ Output terminal parameter setting
Low-speed signal is the default setting for terminal [R1].
Title Parameter name Adjustment range Default setting
F133 Terminal R1 function 1
0-255
*1
*1 For details on the output terminal functions, refer to [7. 2. 2].
4
Memo
• When you want to output the inversion signal (OFF signal), set "5".
• The signals can be also output from the other output terminals depending on the parameter
setting.
When you want to output the signals from the relay logic output terminals [FLA]-[FLB]-[FLC],
set "4" or "5" for <F132: Terminal FL function>. When you want to output the signals from the
terminals [R2A]-[R2C], set "4" or "5" for <F134: Terminal R2 function>. When you want to
output the signals from the terminal [FP], set "4" or "5" for <F130: Terminal FP function 1>.
Reference
• How to operate the operation panel -> Refer to [3. 1. 1].
• How to switch display mode on the operation panel -> Refer to [3. 1. 2].
• Procedure to change parameter setting -> Refer to [4. 2. 3]
• Details on operation by external signals -> Refer to [Chapter 7].

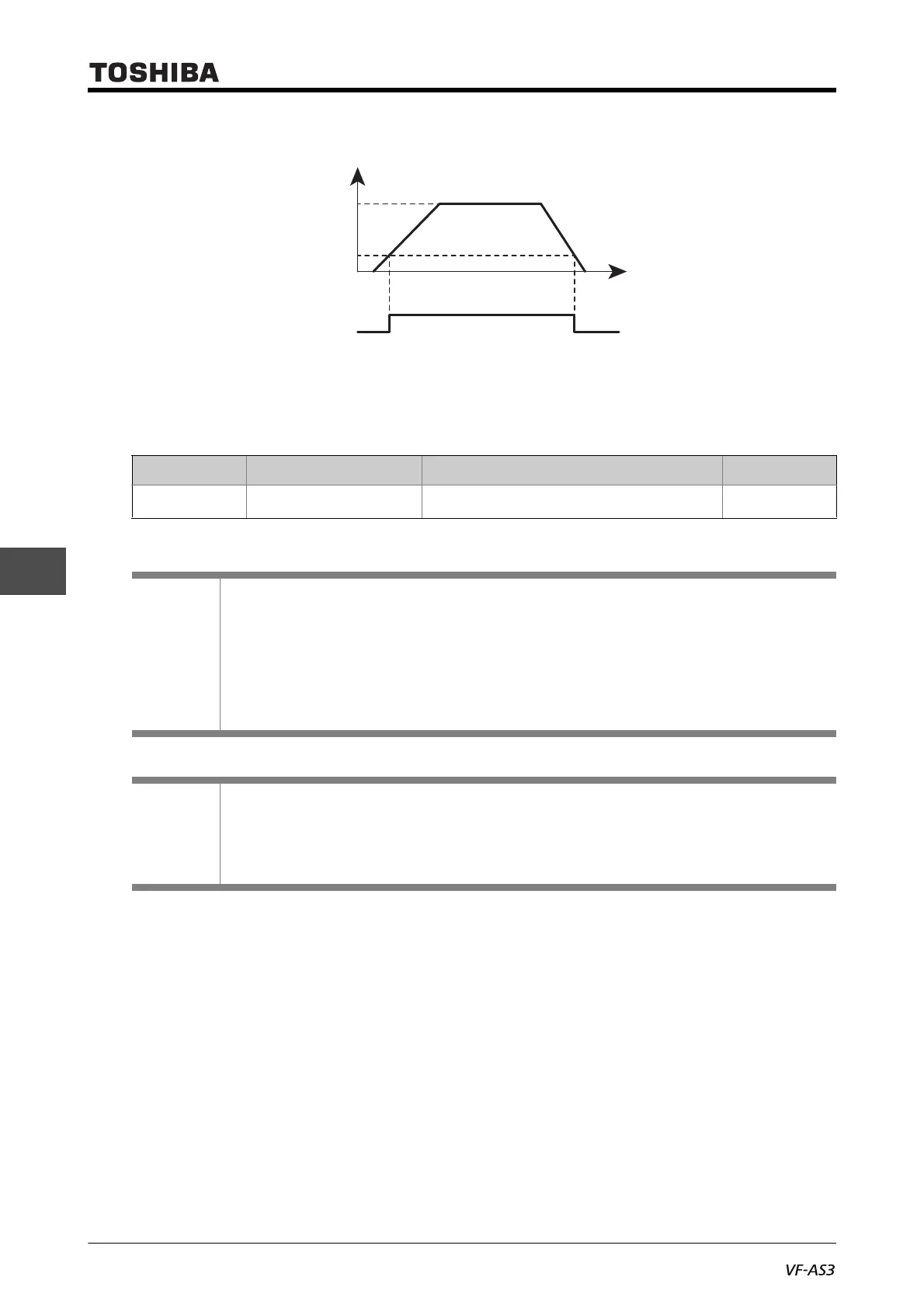

ON
OFF
Output frequency (Hz)
Time (s)
Frequency command value
<F100: Low-speed signal
output frequency>
[R1A]-[R1C] output
(Low-speed signal)
0
