6. [Advanced] How to use parameters 6-100
4
4
6
9
1: Minimum time
With the same situation as in 0, the output frequency precedes and accelerates in minimum time,
even when the stall prevention is active. After release of the mechanical brake, the output current is
retained, and the actual speed of the machinery changes in sync with the output frequency.
This setting can prevent the load from falling, thus improving the response of the inching operation.
Reference
• How to operate the operation panel -> Refer to [3. 1. 1].
• How to switch display mode on the operation panel -> Refer to [3. 1. 2].
• Procedure to change parameter setting -> Refer to [4. 2. 3]

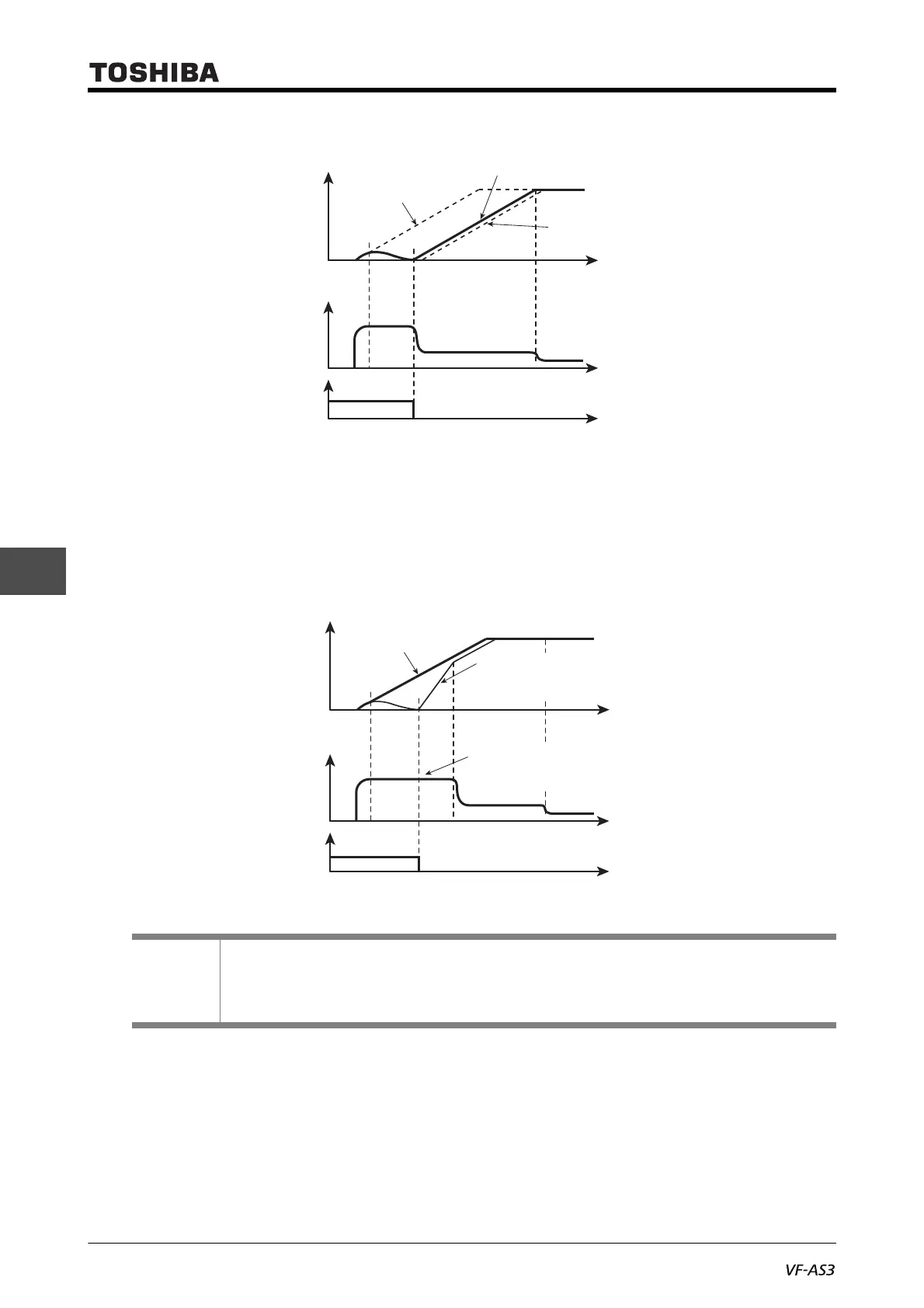

Frequency (Hz)
If stall prevention did
not act
Output frequency
Actual speed
Time (s)
Output current (A)
ON
Mechanical brake
Stall prevention level
OFF
(Release)
Time (s)
Time (s)
Frequency (Hz)
Output frequency
(Acceleration rate is determined
by stall prevention)
Actual speed
The Stall prevention level is
remained after releasing
mechanical brake.
Time (s)
Output current (A)
ON
Mechanical brake
stall prevention leve
OFF
(Release)
Time (s)
Time (s)
