Toshiba TOSVERT VF-AS3 User Manual

E6582062
6-101 6. [Advanced] How to use parameters
3
4
6
9

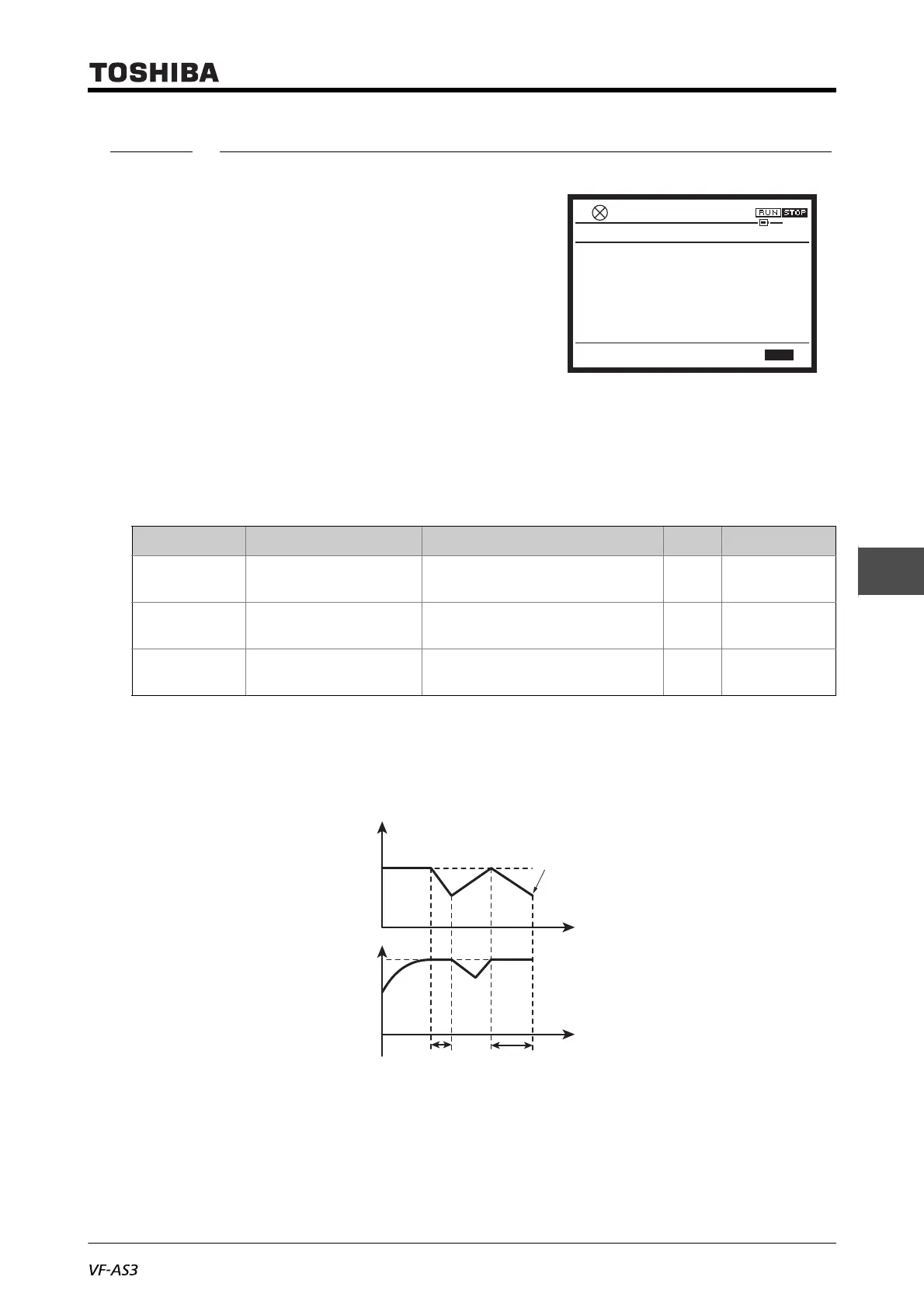

6. 24. 3 Detecting the stall time during power running to trip
<F452: Stall detection time during power running>
<F441: Power running torque limit level 1>
<F601: Stall prevention level 1>
■ Function
This function is one of the functions to prevent lifting gear from falling. If stall prevention operation
occurs in succession, this function judges that the motor has stalled to trip it.
■ Parameter setting
■ Setting method
1) In case of overcurrent stall
If, during power running, the output current reaches the value for <F601: Stall prevention level
1> or more, and continues for the period of time set for <F452: Stall detection time during
power running>, the trip "Ot2" will occur.
Title Parameter name Adjustment range Unit Default setting
F452 Stall detection time
during power running
0.00-10.00 s 0.00
F441 Power running torque
limit level 1
0.0-249.9
250.0: Disabled
% 250.0
F601 Stall prevention level 1 10-200 (HD)
10-160 (ND)
% 150(HD)
120(ND)
0.0HzSTOP
13:45
F452 : Power stall detection time
Min: 0.00 Max: 10.00
X1000 X100 X10 X1
0.00
s
“0t2” Trip
Output frequency (Hz)
Output current (%)
Below
<F452>
Time (s)
Time (s)
<F601>
<F452>
