E6582062
8. Monitoring operation status 8-6
4
4
8
9

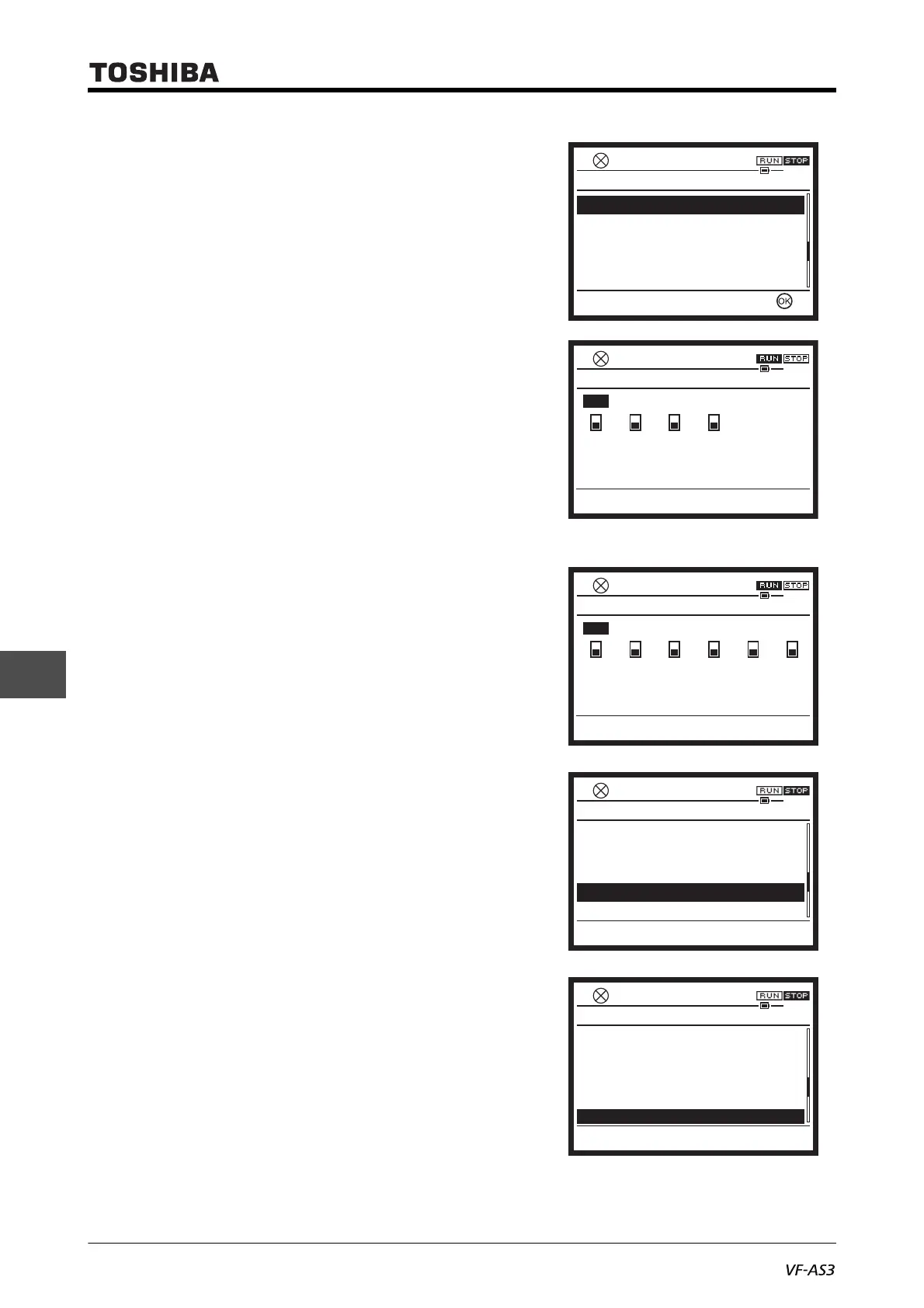

4) Past trip 1 to 8
The trip records are displayed. Past trip 1 is the
record of the latest trip, and Past trip 8 is the record
of the oldest trip.
If no trip information exists, "nErr" is displayed.
On the details monitor, you can check the details of
trips. Refer to [8.1.2].
5) Communication status
The details monitor displays the transmitting/receiv-
ing status of RS485 communication connector 1, 2.
The connector 1 signal transmitting "TX1", connector
1 signal receiving "RX1", connector 2 signal trans-
mitting "TX2", and connector 2 signal receiving
"RX2" are displayed.
6) Parts replacement alarm information
The details monitor displays replacement alarms of
the cooling fan, capacitor, etc.
7) Cumulative run time
The cumulative run time of the inverter is displayed.
The display unit is 100 hours, and the minimum
value 0.01 is equal to 1 hour.
To clear the value, set <tyP: Default setting> to "5:
Clear cumulative run time."
8) Number of starting
The number of starting of the inverter is displayed.
The display unit is one time, and the maximum
value is 9.99 million times.
(In the case of an LED display extension panel, the
display unit is 10000 times, and the minimum value
0.1 is equal to 1000 times.)
To clear the value, set <tyP: Default setting> to "12:
Clear cumulative run time."
Past trip 1
Past trip 2
Past trip 3
Past trip 4
Past trip 5
Top Easy Setting
0.0HzSTOP
12:48
Monitor Mode
nErr
nErr
nErr
nErr
nErr
0.0HzSTOP
12:49
Top Return
RS485 : communication monitor
TX1 TX2RX1 RX2
0.0HzSTOP
12:50
Top Return
Alarm of run time
FAN C2 TIME NUM EXTNC1
Past trip 8
RS485 : communication monitor
Alarm of run time
Cumulative run time
Number of starting
Top Easy Setting
0.0HzSTOP
12:50
Monitor Mode
nErr
0.00
0.0
Past trip 8
RS485 : communication monitor
Alarm of run time
Cumulative run time
Number of starting
Top Easy Setting
0.0HzSTOP
12:50
Monitor Mode
nErr
0.00
0.0
