E6581158
F-58
6

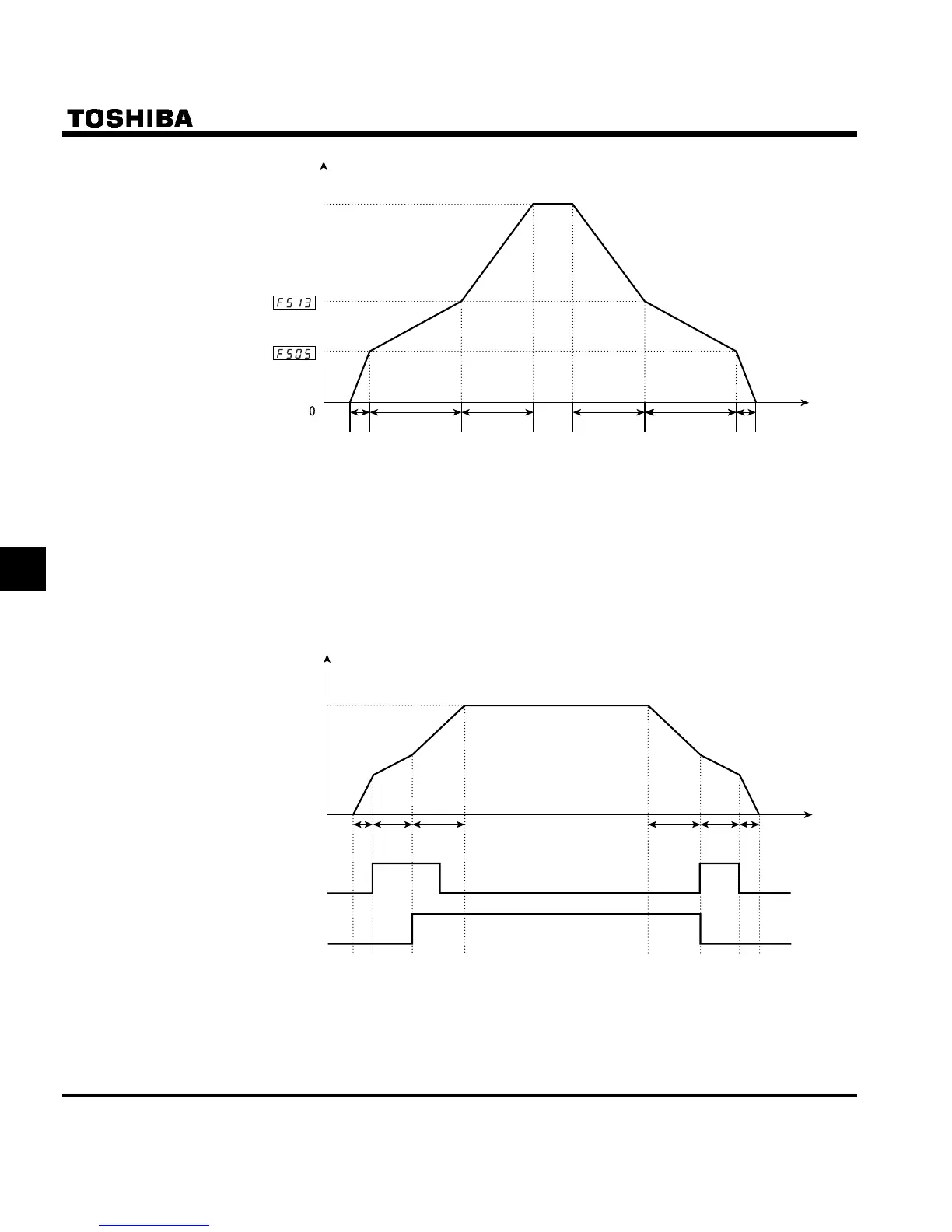

Output frequency [Hz]
Time [s]
Set frequency
(1) (2) (3) (4) (5) (6)
(1) Acceleration at the gradient corre-
sponding to acceleration time CEE
(2) Acceleration at the gradient corre-
sponding to acceleration time H
(3) Acceleration at the gradient corre-
sponding to acceleration time H
(4) Deceleration at the gradient corre-
sponding to deceleration time H
(5) Deceleration at the gradient corre-
sponding to deceleration time H
(6) Deceleration at the gradient corre-
sponding to deceleration time FGE
3) Switching using external terminals - Switching the acceleration/deceleration time via external
terminals
Output frequency [Hz]
Set frequency
Time [s]
0
(1)
(2)
(3) (4) (5) (6)
Acceleration/deceleration switching signal 1
Acceleration/deceleration switching signal 2
(1) Acceleration at the gradient corre-
sponding to acceleration time CEE
(2) Acceleration at the gradient corre-
sponding to acceleration time H
(3) Acceleration at the gradient corre-
sponding to acceleration time H
(4) Deceleration at the gradient corre-
sponding to deceleration time H
(5) Deceleration at the gradient corre-
sponding to deceleration time H
(6) Deceleration at the gradient corre-
sponding to deceleration time FGE

Table of Contents

Other manuals for Toshiba TOSVERT VF-S11

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Toshiba TOSVERT VF-S11 and is the answer not in the manual?

Toshiba TOSVERT VF-S11 Specifications

General IconGeneral
ModelTOSVERT VF-S11
CategoryInverter
Output Frequency0.1-400Hz
Frequency Range0.1-400Hz
Control MethodV/f Control, Sensorless Vector Control
Power Rating0.2kW to 15kW
Cooling MethodForced air cooling
Overload Capacity150% for 60 seconds
Protection FeaturesOvercurrent, Overvoltage, Undervoltage, Overheat
CommunicationModbus RTU
Input Voltage200-240V, 380-480V
Braking UnitBuilt-in (optional external braking resistor)
