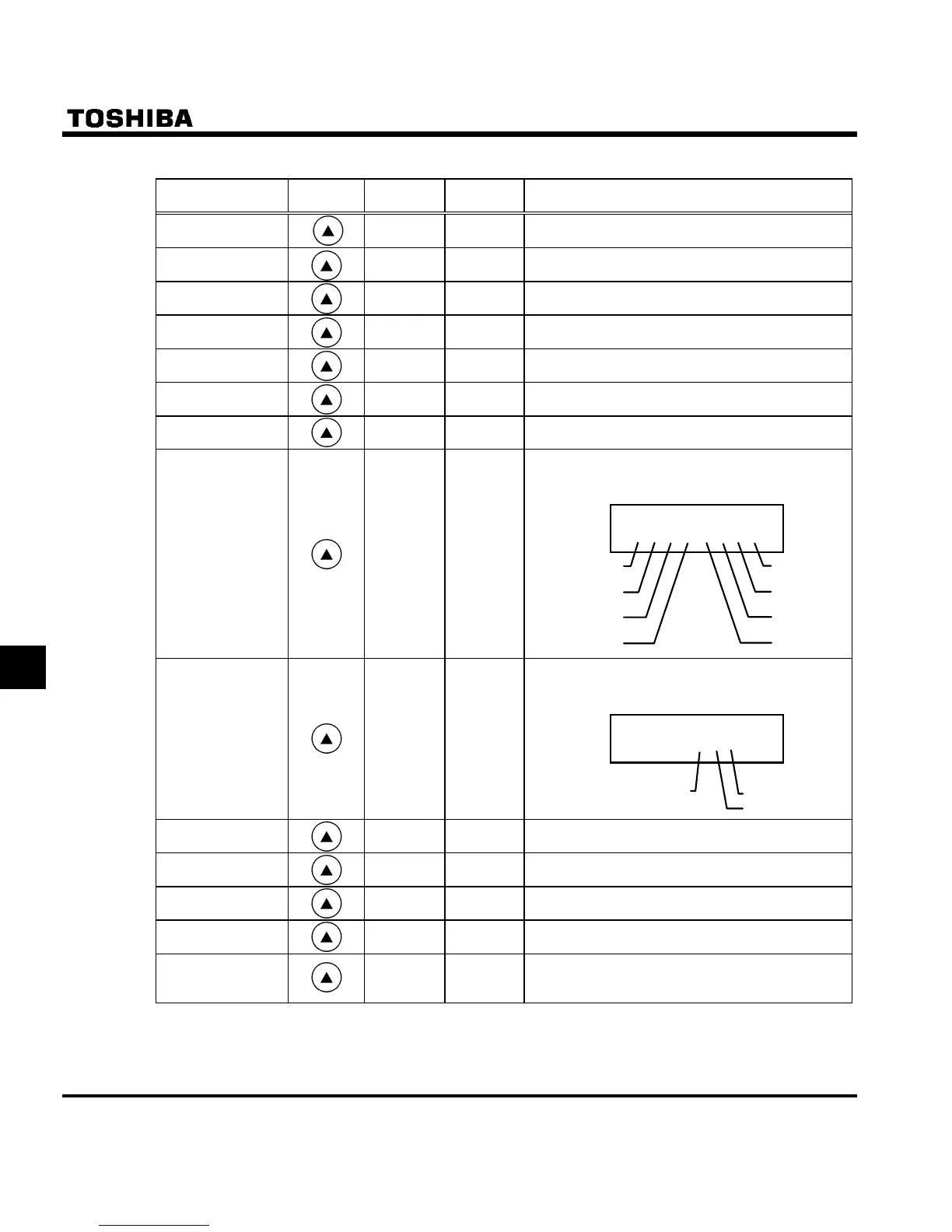

E6581158
H-8
8
(Continued)
Item displayed
Key
operated
LED
display
Communi-
cation No.
Description
Torque SQ FE18
The torque at the occurrence of a trip (%) is
displayed.
Torque current
Y
FE20
The torque current (%/A) at the occurrence of a
trip is displayed.
Inverter load factor
N
FE27
The inverter load factor (%) at the occurrence of a
trip is displayed.
PBR cumulative
load factor
T
FE25
The cumulative load factor (%) of the resistor at
the occurrence of a trip is displayed.
Input power M FE29
The inverter input power (kW) at the occurrence of
a trip is displayed.
Output power J FE30
The inverter output power (kW) at the occurrence
of a trip is displayed.
Operation fre-
quency
Z FE00
The inverter output frequency (Hz/free unit) at the
occurrence of a trip is displayed.
Input terminal ___KK_KK FE06
The ON/OFF statuses of the control input termi-
nals (F, R, RES, S1, S2, S3, VIB and VIA) are dis-
played in bits.
ON:
OFF: _
Output terminal
_KK
FE07
The ON/OFF status of each of the control signal
output terminals (RY, OUT and FL) at the occur-
rence of a trip is displayed in bits.
ON:
OFF: _
CPU1 version
X
FE08 The version of the CPU1 is displayed.
CPU2 version
XY
FE73 The version of the CPU2 is displayed.
Memory version XG FE09 The version of the memory mounted is displayed.
PID feedback F FE22
The PID feedback value at the occurrence of a trip
is displayed. (Default setting: unit Hz)
Frequency com-
mand value (PID-
computed)
D FE15
The PID-computed frequency command value at
the occurrence of a trip is displayed. (Default set-
ting: unit Hz)
(Continued overleaf)
_KK
RY-RC
FL
OUT-NO
___KK_KK
VIA
VIB
S3
S2
RES
S1
R
F
Note 4
Note 5
