E6581158
J-8
10

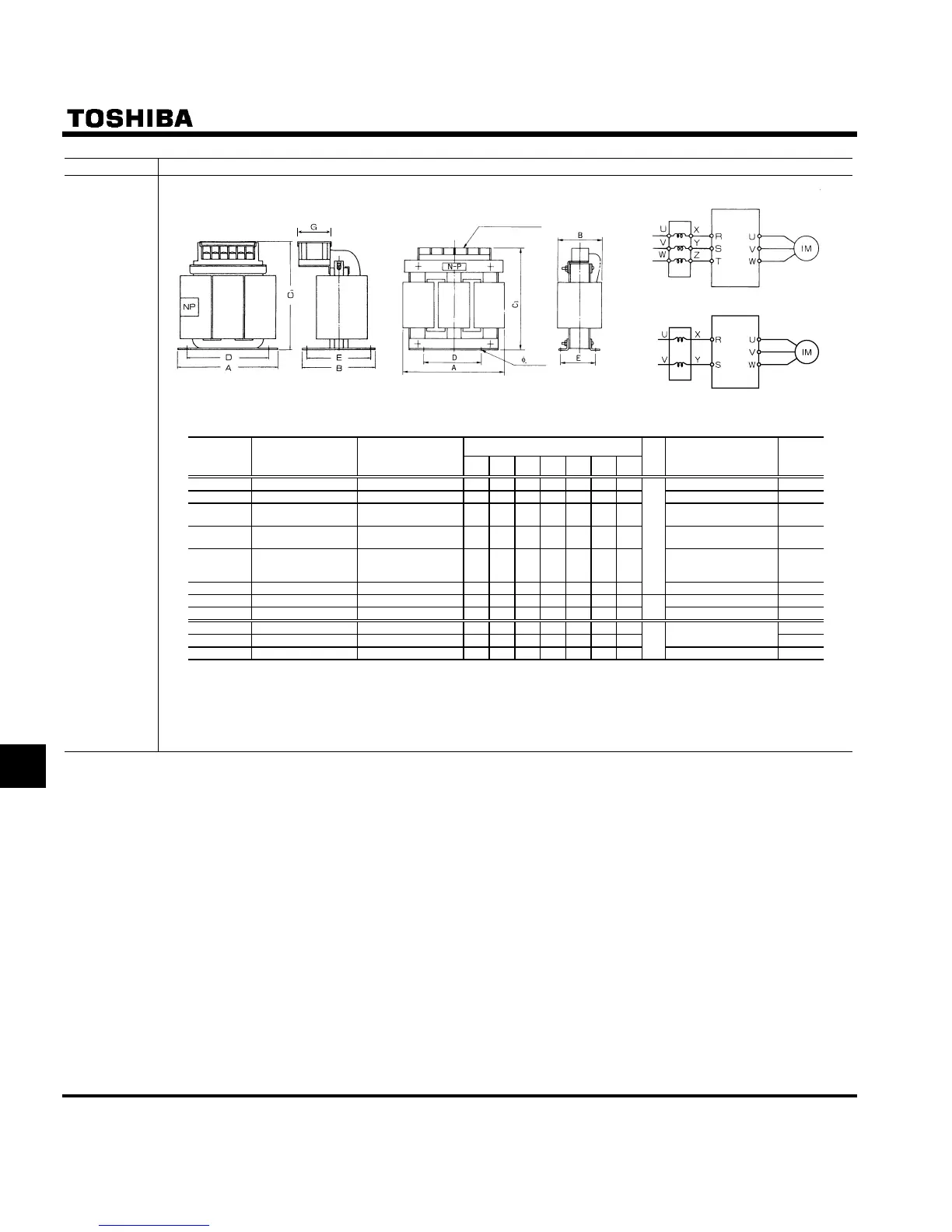

Devices External dimensions and connections
Input AC re-
actor
(ACL)
Dimensions (mm)
Model Rating Inverter type
ABCDEFG
Diagram
Ter min als
Approx.
weight
(kg)
PFLS2002S
1φ-230V-2.0A-50/60Hz
VFS11S-2002PL (Note) 80 55 115 63 45 5 45 Harmonica terminal M3.5 0.85
PFL2001S
3φ-230V-1.7A-50/60Hz
VFS11-2002PM (Note) 105 65 115 90 55 5 40 Harmonica terminal M3.5 1.0
PFL2005S
3φ-230V-5.5A-50/60Hz
VFS11-2004 ∼ 2007PM
VFS11S-2004PL (Note)
105 65 115 90 55 5 40 Harmonica terminal M3.5 1.2
PFL2011S
3φ-230V-11A-50/60Hz
VFS11-2015, 2022PM
VFS11S-2007PL (Note)
130 70 140 115 60 5 50 Harmonica terminal M4 2.3
PFL2018S
3φ-230V-18A-50/60Hz
VFS11-2037PM
VFS11S-2015,
2022PL (Note)
130 70 140 115 60 5 50 Harmonica terminal M4 2.5
PFL2025S
3φ-230V-25A-50/60Hz
VFS11-2055PM 125 100 130 50 83 7 -
A
Harmonica terminal M4 2.6
PFL2050S
3φ-230V-50A-50/60Hz
VFS11-2075, 2110PM 155 115 140 50 95 7 - Harmonica terminal M6 3.4
PFL2100S
3φ-230V-100A-50/60Hz
VFS11-2150PM 230 150 210 60 90 8 -
B
Harmonica terminal M8 8.2
PFL4012S
3φ-460V-12.5A-50/60Hz VFS11-4004 ∼ 4037PL
125 95 130 50 79 7 - 2.3
PFL4025S
3φ-460V-25A-50/60Hz VFS11-4055 ∼ 4110PL
155 110 155 50 94 7 -
Harmonica terminal M4
4.9
PFL4050S
3φ-460V-50A-50/60Hz
VFS11-4150PL 155 140 165 50 112 7 -
B
Harmonica terminal M6 6.6
Note: Connecting this reactor to the inverter makes it compliant with the standard "General Inverter
(input current of 20A or less) Harmonic Suppression Measures Execution Guidelines" set by
the Japan Electric Industry Association.
* PFL2002S has 4 terminals.
VFS11S
VFS11
Fig. A
Terminal box with cover
4- F holes
AC reactor
Power
source
Fig. B
AC reactor
