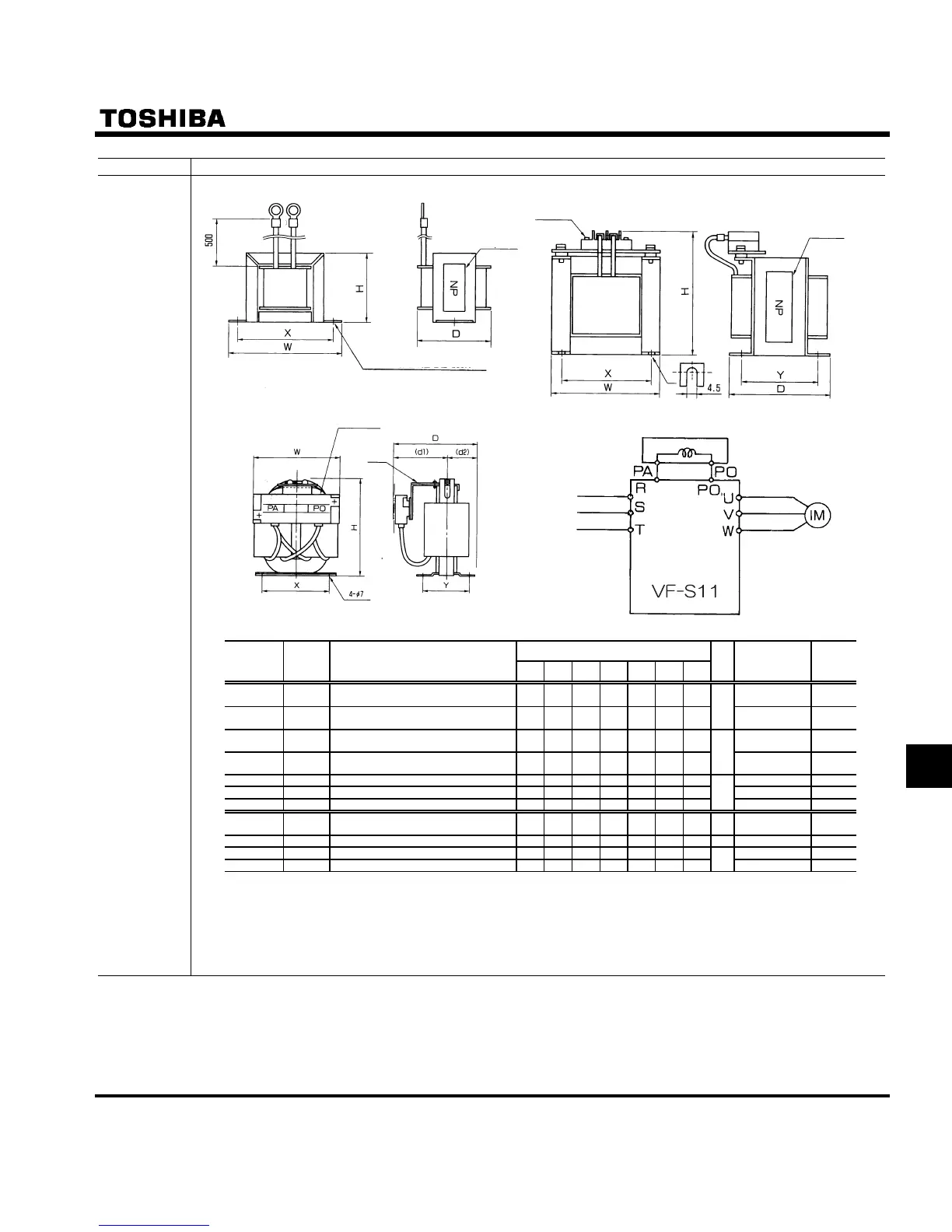

E6581158
J-9
10
Fig. A
Fig. B
Fig. C
PA/+
DC reactor
Power source
4.5 x 6 slotted hole (DCLS-2002)
4.4 x 6 slotted hole (DCL-2007)
Name plate
Terminal box
with cover
Name plate
Terminal box
with cover
Name
plate
Devices External dimensions and connections
DC reactor
Dimensions (mm)
Model
Rated
current
(A)
Inverter type
WHDX Yd1D2
Diagram
Ter min als
Approx.
weight
(kg)
DCLS-2002 2.5
VFS11-2002PM
VFS11S-2002PL (Note 1)
79 50 44 66 - - -
Crimp terminal
V1.25-3.5
0.6
DCL-2007 7
VFS11-2004 2007PM
VFS11S-2004PL (Note 1)
92 65 70 82 - - -
A
Crimp terminal
V2-3.5
1.2
DCL-2022 14
VFS11-2015, 2022PM
VFS11S-2007PL (Note 1)
86110807164 - - M4 2.2
DCL-2037 22.5
VFS11-2037PM
VFS11S-2015, 2022PL (Note 1)
86110857170 - -
B
M4 2.5
DCL-2055 38 VFS11-2055PM 75 130 140 50 85 85 55 M5 1.9
DCL-2110 75
VFS11-2075 2110PM
10015015065859555 M6 2.4
DCL-2220 150 VFS11-2150PM 117 170 190 90 90 130 60
C
M8 4.3
DCL-2007 7
VFS11-4004 4015PL (Note 2)
92 65 70 82 - - - A
Crimp terminal
V2-3.5
1.2
DCL-2022 14 VFS11-4022, 4037PL (Note 2) 86 110 80 71 64 - - B M4 2.2
DCL-4110 38
VFS11-4055 4110PL
95 150 165 70 90 105 60 M5 3.0
DCL-4220 75 VFS11-4150PL 105 160 185 80 100 130 65
C
M8 3.7
Note 1: Connecting this reactor to the inverter makes it compliant with the standard "General
Inverter (input current of 20A or less) Harmonic Suppression Measures Execution
Guidelines" set by the Japan Electric Industry Association.
Note 2: Use 200V class for VFS11-4004PL-4037PL DC reactor.
